Operator's Manual
TX210 UTV JUMP SEAT
STEP 4
STEP 5 & 6
5. Attach the two seat pivot tubes (A683) to the “inside” of the upright frames
using (2) provided 1/4-20 x 2-1/2” hex head bolts, locknuts and (6) 1/4” steel
washers. SEE FIGURE 2B.
6. Attach the seat frame (A678), mesh side up, to the top of previously mounted
seat pivots using (4) provided 1/4-20 x 2-1/4” hex head bolts, locknuts and
1/4” steel washers. SEE FIGURE 2B.
NOTE: Mount the seat frame so the hole in the side of frame are towards
the front of the unit, away from the backrest.

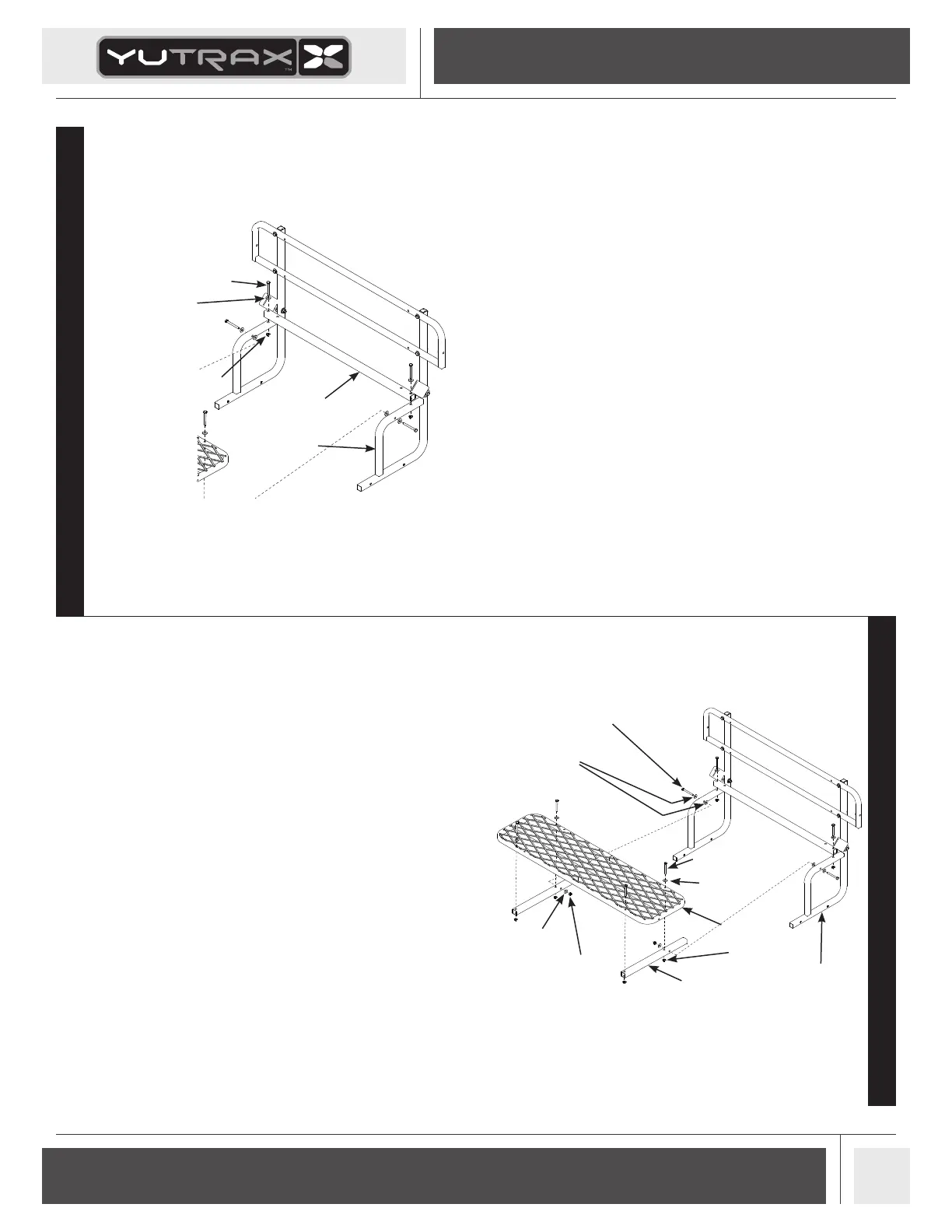

FIGURE 2A
FIGURE 2B
4. Attach the seat stop tube (A684) to the top side of upright frames using (2)
provided 1/4-20 x 2-1/4” hex head bolts, locknuts and 1/4” steel washers. SEE
FIGURE 2A .
steel washers
locknuts
1/4-20 x 2-1/4” bolts
seat stop tube
upright frames
steel washers
locknuts
1/4-20 x 2-1/2” bolts
1/4-20 x 2-1/4” bolts
steel washers
locknuts
upright frames
seat pivot tubes
seat frame
steel washers
