Operator's Manual
TX210 UTV JUMP SEAT
STEP 15 & 16
15. You will nd a side release buckle with a short strap and long strap sewn to
it. Take the short strap and wrap the loop end of strap around the rim of the
seat frame (center of the front side). Thread the release buckle through the
sewn loop and pull tight forming a slip knot. This action makes it permanently
attached. Do the same for the long strap, by attaching it to the center of
bottom rail on backrest frame. Pull the strap tight. This feature secures the
seat in the ip up position if desired. SEE FIGURE 7.
NOTE: In order to ip seat up, you must remove the spring lock pins from
the armrests. Armrests will pivot back freely.
16. Attach the (2) provided 9” arm pads to the armrests by wrapping around
tubing and securing Velcro together.

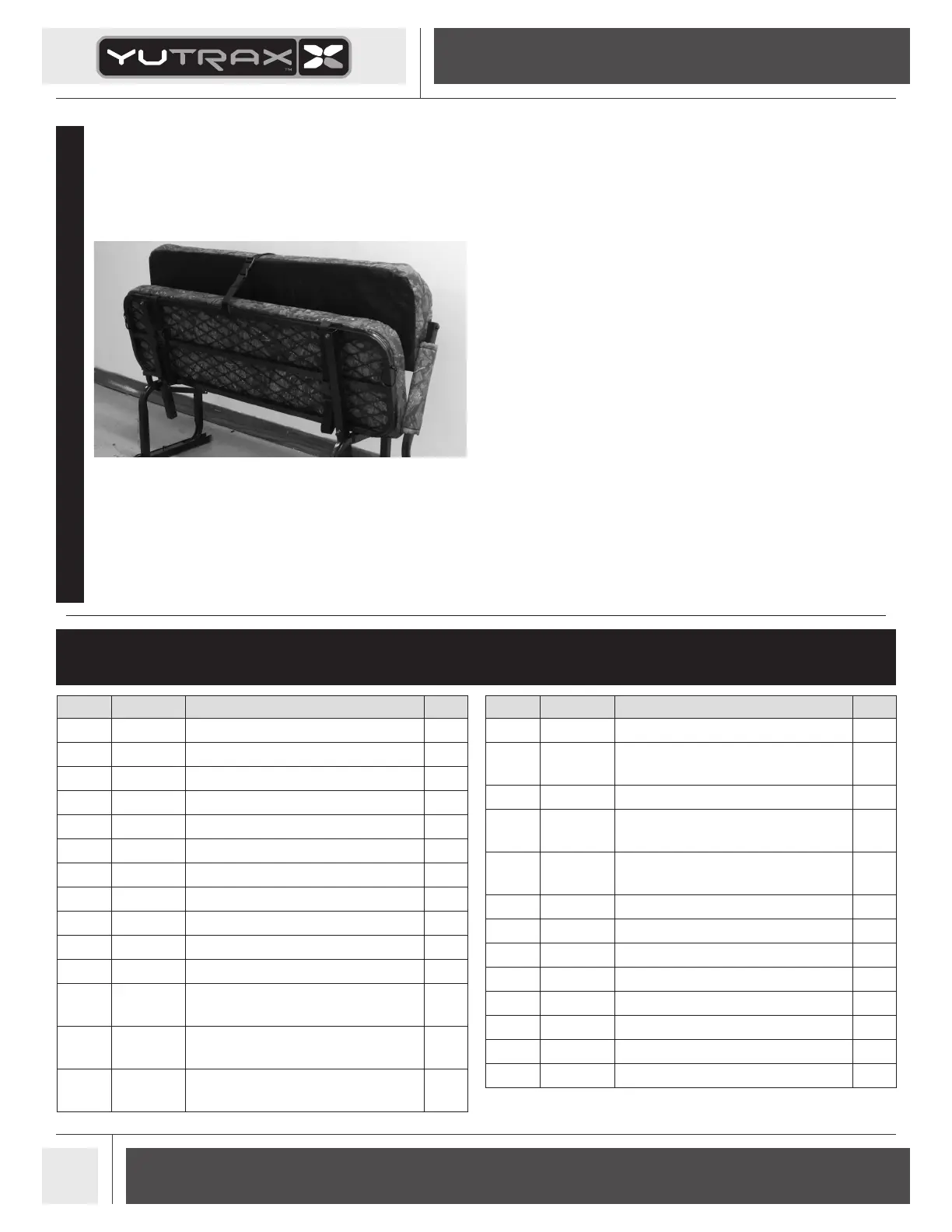

FIGURE 7
PARTS LIST
ITEM # PART # DESCRIPTION QT Y.
1 A682 UPRIGHT FRAME 2
2 A681 BACKREST FRAME 1
3 A684 SEAT STOP 1
4 A683 PIVOT SEAT 2
5 A678 SEAT FRAME 1
6 A686 CHANNEL MOUNT 2
7 A685 ARM REST 2
8 48798 RECEIVER, SEAT BELT 2
9 48261B WASHER, BLK 1/4" 20
10 48752B NUT, FLANGED, TOP LOCK 1/420 14
11 48153B BOLT 1/4-20 X 2 HHCS BLK ZN P-T 6
12 48271B BOLT, HHCS, GR5 BLK
1/420 X 21/4"
6
13 48017 SPRING LOCKPIN, ROUNDED
RETAINER 1/4 X 2"
6
14 1401B BOLT, HHCS GR5 BLK
5/1618 X 11/4"
4
ITEM # PART # DESCRIPTION QT Y.
15 1921333 BOLT, HHCS GR5 5/1618 X 1" 4
16 48753B NUT, HEX FLANGED TOP LOCK
BLK 5/1618
6
17 WF516B WASHER, FLAT 5/16" STANDARD 10
18 1960044 WASHER, FLAT
.33 ID X 1.25 OD X .07 THK
4
19 48270B BOLT, HHCS GR5 BLK
1/420 X 21/2"
2
20 8655B BOLT, HH BLK 5/16-18 X 1-3/4" 6
21 200302 SEAT, PADDED 1
22 200303 BACKREST, PADDED 1
23 200304 ARMREST PADDED BLACK 9” 2
 48815 SEAT BELT STRAP 1
 48851 SAFETY CAM STRAP 2
 48828 STRAP ASSEMBLY, FEMALE 1
 48829 STRAP ASSEMBLY, MALE 1
