User's Manual
Ver. 092019
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
www.zalman.com

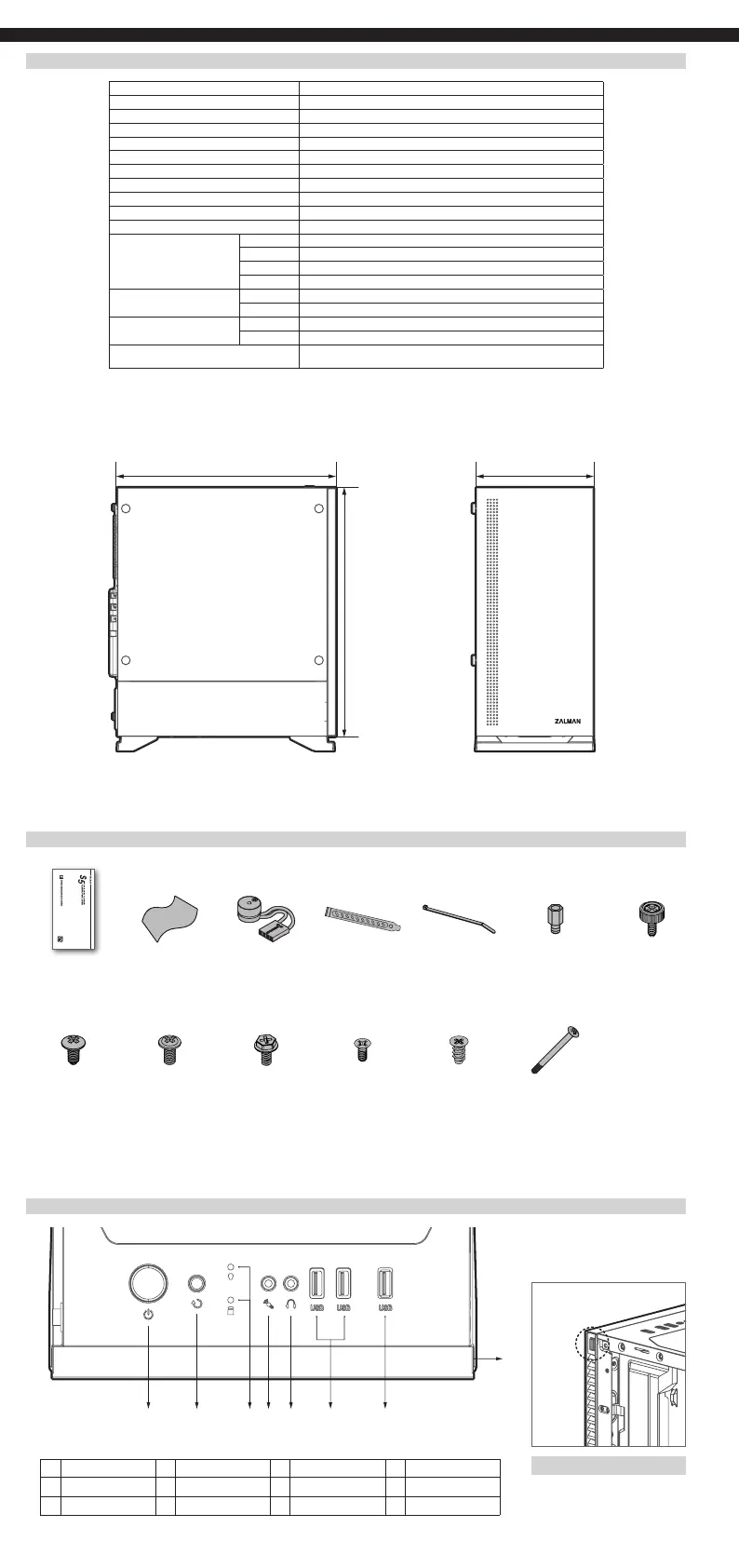

Caractéristiques
Model
S5
Case Form Factor
ATX Mid-Tower
Dimensions
395.5(D) x 212(W) x 465(H)mm
Weight
5.8kg
Case Materials
Steel, Plastic, Tempered Glass
Motherboard Support
ATX / mATX / Mini-ITX
Maximum VGA Length
340mm
Maximum CPU Cooler Height
160mm
Maximum PSU Length
190mm
PCI Expansion Slots
7
Drive Bays
2 x Combo(3.5” or 2.5”), 4 x 2.5”
Fan Support
Top
2 x 120mm, 2 x 140mm
Front
3 x 120mm
Rear
1 x 120mm
Bottom
2 x 120mm
Pre-Installed Fan(s)
Front
1 x 120mm
Rear
1 x 120mm (with ARGB LED Effect)
Radiator Support
Top
240mm (RAM 35mm Under)
Side
240mm (Cooling Guide)
I/O Ports
1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0,
Reset Button, Power Button, LED Control Button(Side)
438mm
384mm 202mm
Accessoires
Cooler Guide
Fan+Radiator
Screw x 8
Vis de disque
dur x 20
Avertisseur
sonore
Nettoyant
verre
Manuel Attache de
câble x 5
Cooler Guide to
Chassis (Front)
Screw x 2
Vis SSD / MB
x 25
Couvercle de
fente PCI
Vis PSU / VGA
x 6
Motherboard
Standos x 3
Vis à oreilles
x 2
Cooler Guide to
Chassis (Rear)
Screw x 2
I/O Ports
# Part # Part # Part # Part
ⓐ
Power Button
ⓑ
Reset Button
ⓒ
HDD / Power LED
ⓓ
Microphone Jack
ⓔ
Headphone Jack
ⓕ
USB 2.0 Ports
ⓖ
USB 3.0 Port
ⓗ
LED Control Button
ⓐ
ⓑ
ⓒ ⓓ
ⓔ
ⓕ ⓖ
ⓗ
LED Control Button (Side)
To Next Page
