ZALMAN Z3 Plus User Manual

3

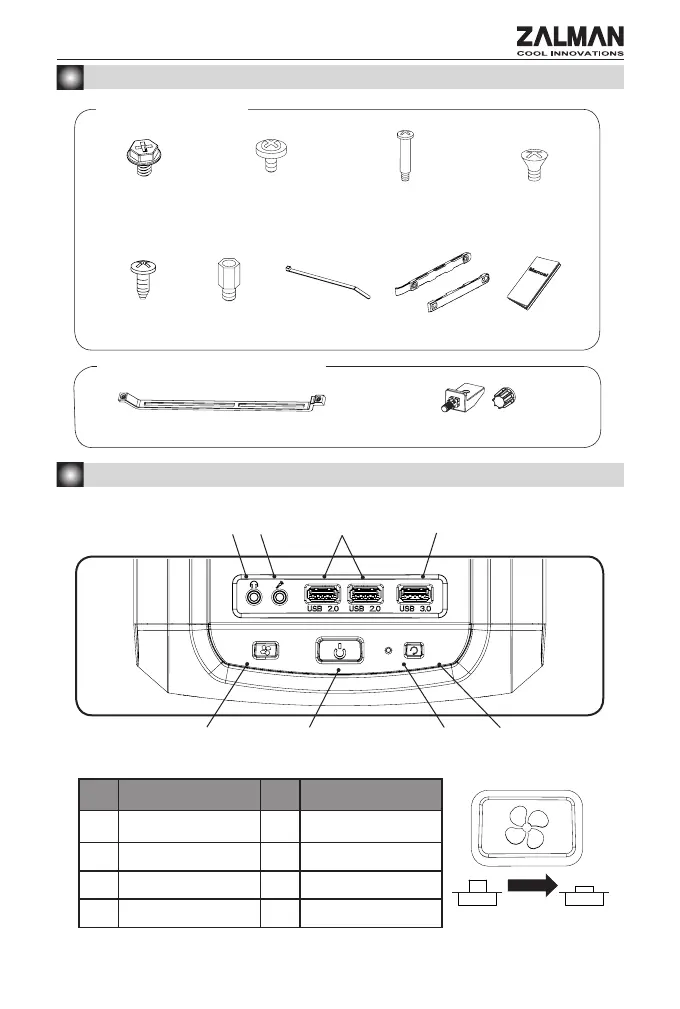

5. Front I/O Ports / 상면 I/O 포트
4. Components / 구성품
Low
High
Fan Cotroller
# Part / 명칭 # Part / 명칭
①
FAN Controller /
팬 컨트롤러
② Power Button / 전원
③ HDD LED ④ Reset Button / 리셋버튼
⑤ Headphones / 헤드폰 ⑥ Mic / 마이크
⑦ USB 2.0 ⑧ USB 3.0
① ② ③ ④
⑤ ⑥ ⑦ ⑧
Manual x 1
Stand Off x 6
A Bolt
(#6-32*5mm) x 13
[PSU,PCI]
Cable Tie x 5
VGA Guide x 1 Guide Clip x 2
B Bolt
(M3*5mm) x 25
[M/B,FDD,SSD,ODD]
C Bolt
(FAN) x 4
(BH M3*28mm)
D Bolt
(FAN) x 2
(FH Tap5*10mm)
HDD Guide
Components / 공용구성품
Z3 Plus Components / Z3 Plus 구성품
Push
E Bolt
(M3*5mm) x 4

ZALMAN Z3 Plus Specifications

General

Motherboard Support	ATX, Micro-ATX, Mini-ITX
Material	Steel, Plastic
Expansion Slots	7
Maximum GPU Length	360mm
Maximum CPU Cooler Height	160mm
PSU Support	Standard ATX
Form Factor	Mid Tower
Cooling System	Front: 1 x 120mm (included), Rear: 1 x 120mm (included)
Front I/O Ports	Audio In/Out
Drive Bays	2 x 5.25", 2 x 3.5", 2 x 2.5"
