Z7 Plus / Z7

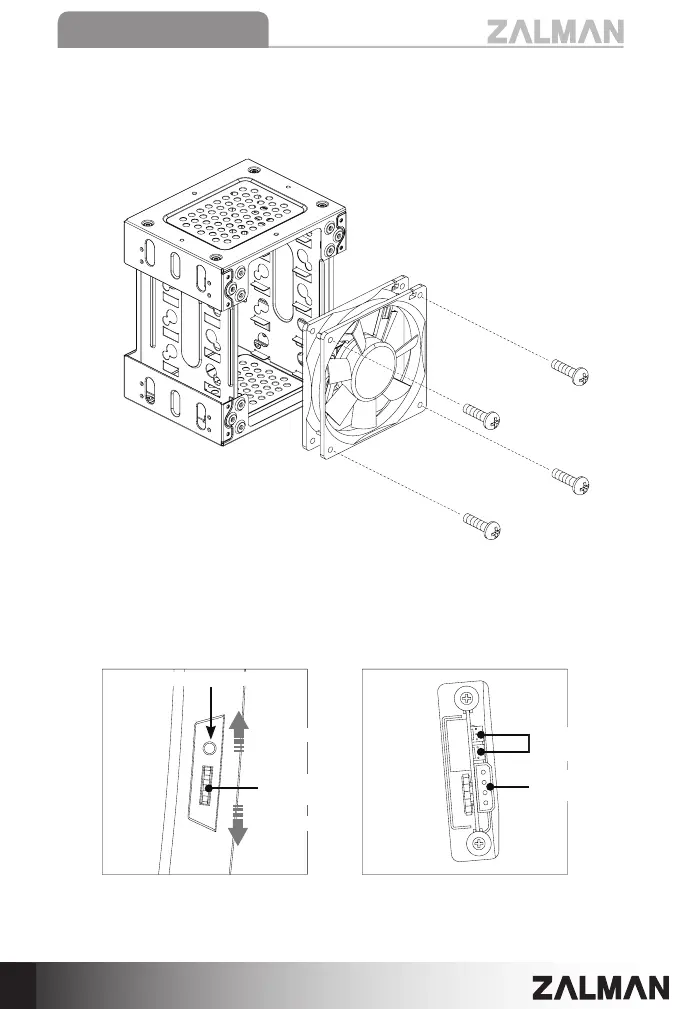

2) HDD Rack Fan Replacement
The Z7 Plus comes equipped with one 120㎜ Fan. 120 / 140㎜ Fans can
be installed to the HDD Rack. Please refer to the diagram below for fan
replacement.
The Z7 Plus comes equipped with a Fan Control on the left Side Panel. By
connecting the 4-Pin Power Connector and the 3-Pin Fan Connector to the Fan,
the Fan Speed can be controlled using the Fan Speed Controller.
Left Side
Panel (exterior) Left Side Panel (interior)
(8) Side Panel Fan Control [Z7 Plus]
Fan Speed
Controller
High Speed
Low Speed
3-Pin Fan
Connector
4-Pin Power
Connector
Activity LED
