The specifications of product may change without any prior notice to improve performance.
4

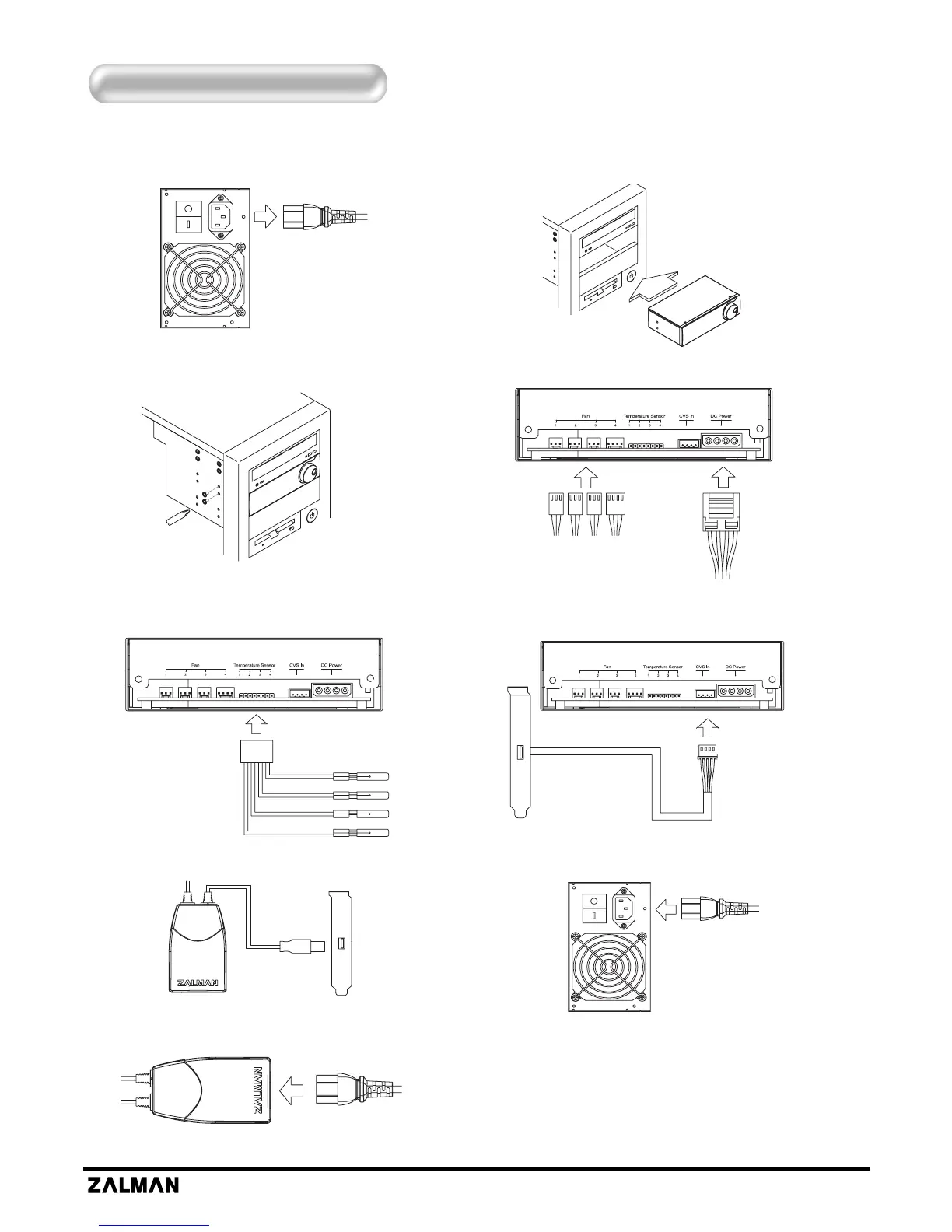

1. Turn the computer’s power OFF and unplug the
Main Power Cord before installing ZM-MFC2.
2. Install the ZM-MFC2 into a 5.25" ODD bay as shown
in the diagram.
3. Fix it in place with the use of Bolts. 4. Connect the Power Cable and Fan Cables to ZM-MFC2.
5. Connect the Temperature Sensor’s plug to ZM-MFC2,
and attach the sensors to desired locations.
6. Install the Bracket in the Enclosure, and connect
the CVS Extension Cable to ZM-MFC2.
7. Connect the CVS’s CVS Cable to the Bracket. 8. Connect the CVS’s AC Power Cord to the PSU.
9. Connect the Main Power Cord to the CVS.
Installation
