VGA Heatpipe Cooler

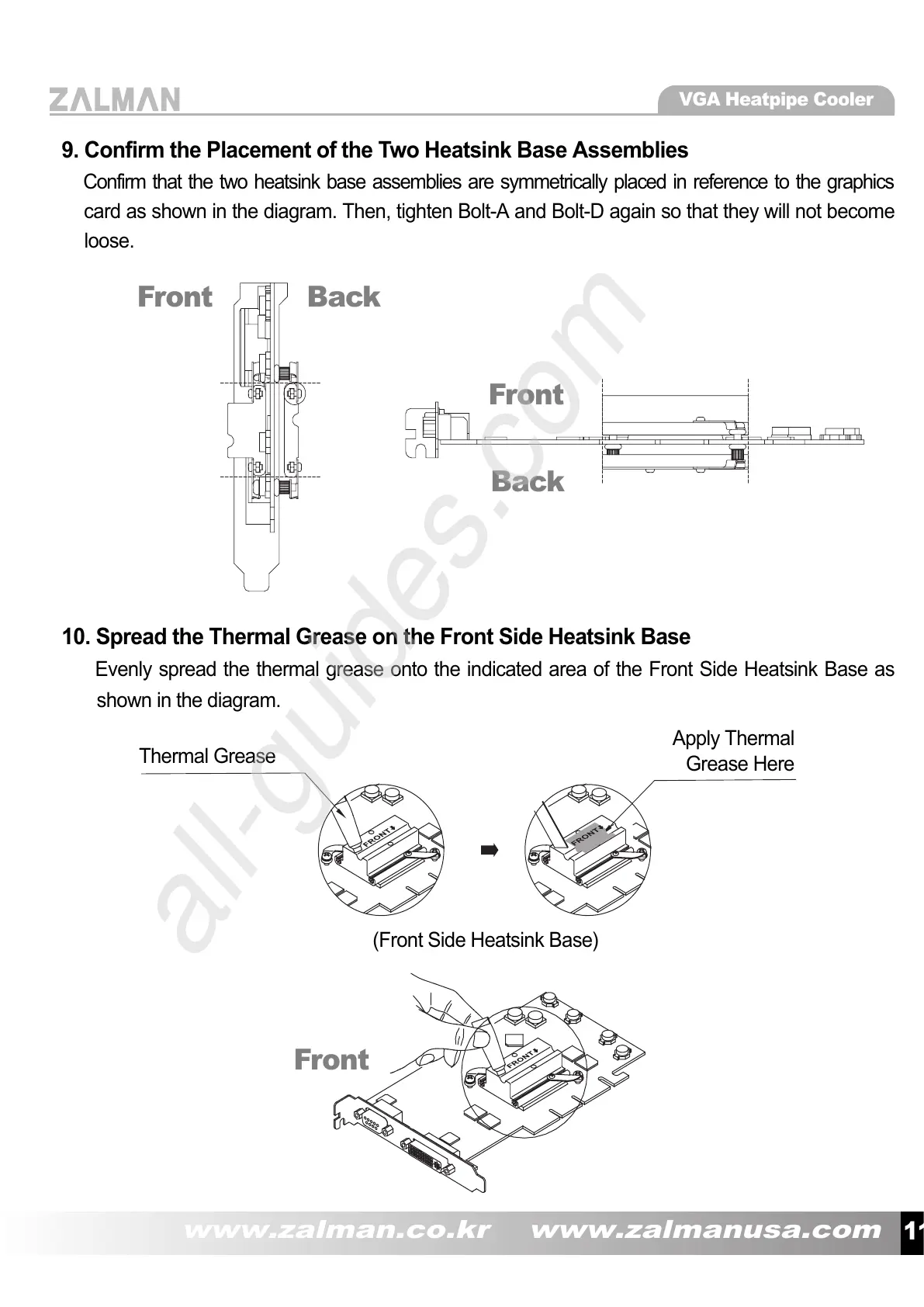

9. Confirm the Placement of the Two Heatsink Base Assemblies
Confirm that the two heatsink base assemblies are symmetrically placed in reference to the graphics
card as shown in the diagram. Then, tighten Bolt-A and Bolt-D again so that they will not become
loose.
10. Spread the Thermal Grease on the Front Side Heatsink Base
Evenly spread the thermal grease onto the indicated area of the Front Side Heatsink Base as
shown in the diagram.
Front
Front
Front
Back
Back
Apply Thermal
Grease Here
(Front Side Heatsink Base)
Thermal Grease
