VGA Heatpipe Cooler
Cautions on Installation and Use

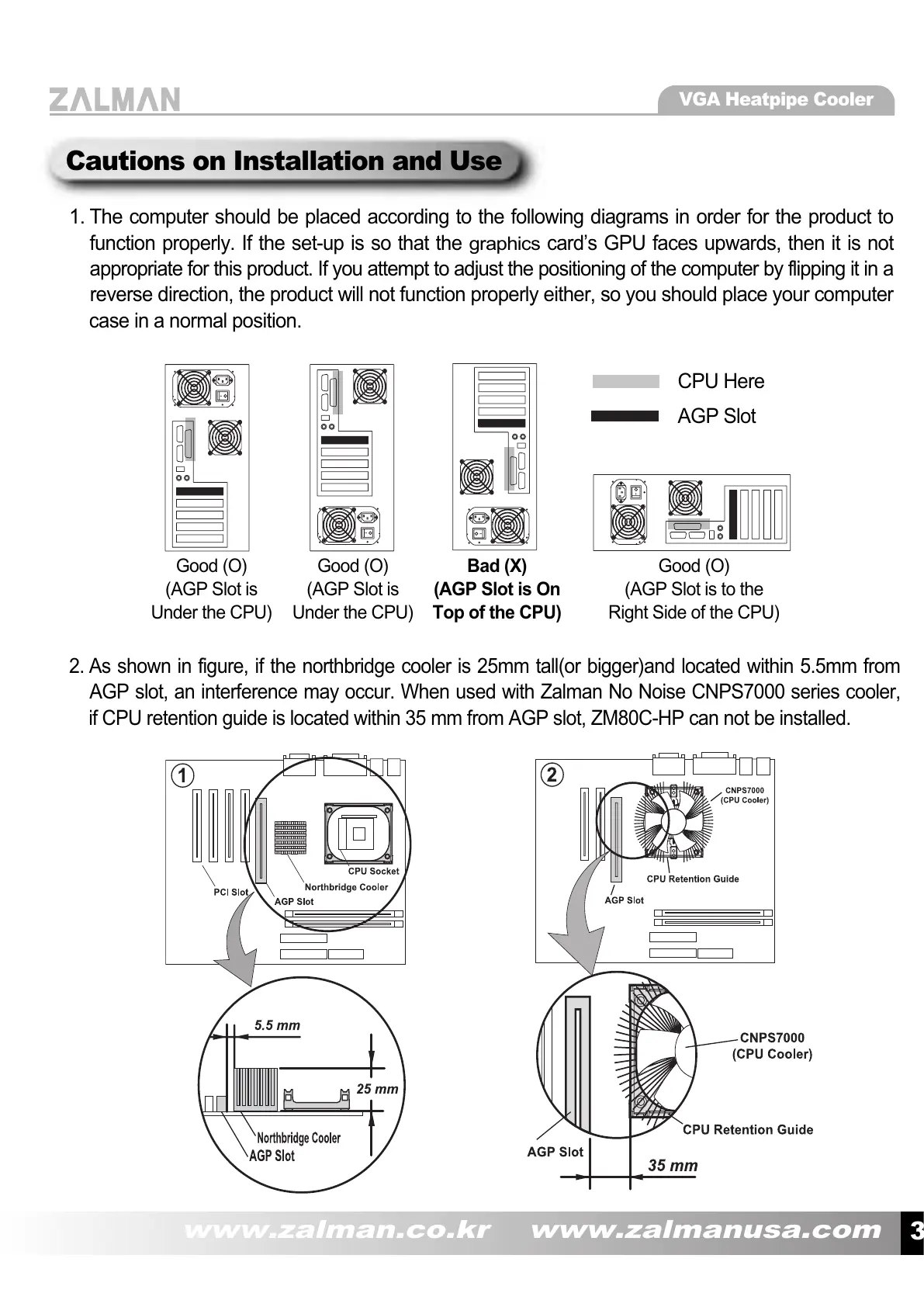

1. The computer should be placed according to the following diagrams in order for the product to
function properly. If the set-up is so that the
graphics
card’s GPU faces upwards, then it is not
appropriate for this product. If you attempt to adjust the positioning of the computer by flipping it in a
reverse direction, the product will not function properly either, so you should place your computer
case in a normal position.
2. As shown in figure, if the northbridge cooler is 25mm tall(or bigger)and located within 5.5mm from
AGP slot, an interference may occur. When used with Zalman No Noise CNPS7000 series cooler,
if CPU retention guide is located within 35 mm from AGP slot, ZM80C-HP can not be installed.
Good (O)
(AGP Slot is
Under the CPU)
Good (O)
(AGP Slot is
Under the CPU)
Bad (X)
(AGP Slot is On
Top of the CPU)
Good (O)
(AGP Slot is to the
Right Side of the CPU)
CPU Here
AGP Slot
