ZALMAN ZM80C-HP User Manual

www.zalman.co.kr www.zalmanusa.com
5
VGA Heatpipe Cooler

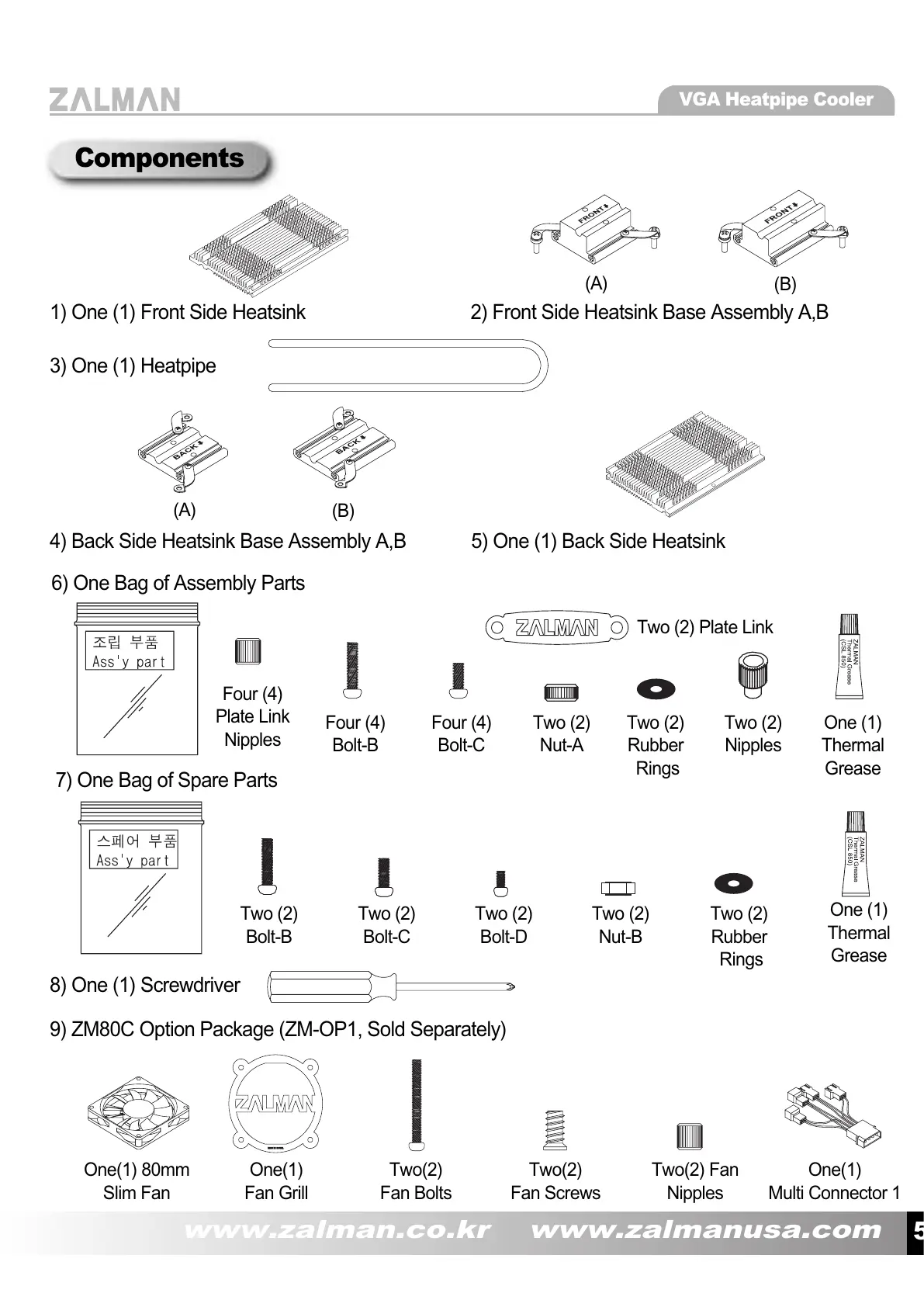

Components
1) One (1) Front Side Heatsink 2) Front Side Heatsink Base Assembly A,B
3) One (1) Heatpipe
4) Back Side Heatsink Base Assembly A,B 5) One (1) Back Side Heatsink
Four (4)
Bolt-C
Four (4)
Bolt-B
Four (4)
Plate Link
Nipples
Two (2) Plate Link
(A)
(B)
(A)
(B)
Two (2)
Nut-A
Two (2)
Rubber
Rings
Two (2)
Nipples
One (1)
Thermal
Grease
Two (2)
Bolt-B
Two (2)
Bolt-C
Two (2)
Bolt-D
Two (2)
Nut-B
Two (2)
Rubber
Rings
One (1)
Thermal
Grease
7) One Bag of Spare Parts
8) One (1) Screwdriver
9) ZM80C Option Package (ZM-OP1, Sold Separately)
6) One Bag of Assembly Parts
One(1) 80mm
Slim Fan
One(1)
Fan Grill
Two(2)
Fan Screws
Two(2)
Fan Bolts
Two(2) Fan
Nipples
One(1)
Multi Connector 1
