This charger is designed for indoor use only and should never be exposed
to rain.
● Do not disassemble the controller. Take to a qualified person if the unit
requires repairing.
●
Lead acid, LiFePO4, LTO, batteries can be dangerous. Ensure no sparks
or flames are present when working near batteries.
● Eye protection should always be used. Never short circuit the battery
● Given sufficient light solar panels always generate energy even when they
are disconnected.
● Accidental ‘shorting’ of the terminals or wiring can result in sparks causing
personal injury or a fire hazard. We recommend that you cover up the
panel(s) with some sort of soft cloth s
o you can block all incoming light
during the installation. This will ensure that no damage is caused to the
Solar Panel or Battery if the wires are accidentally short circuited.
● Always install a battery fuse on each circuit including the solar controller
● Do not reverse connect the wires to the solar panel or battery
WARNING – IMPORTANT PLEASE READ
The Solar Controller has two mounting options.
1. Surface mount:
The quickest and easiest way to mount the unit is to use the two plastic
spacers and self tapping screws supplied and mount the unit to a flat surface,
2. Flush (panel) mount:
Before deciding to use this mounting method, please ensure there is sufficient

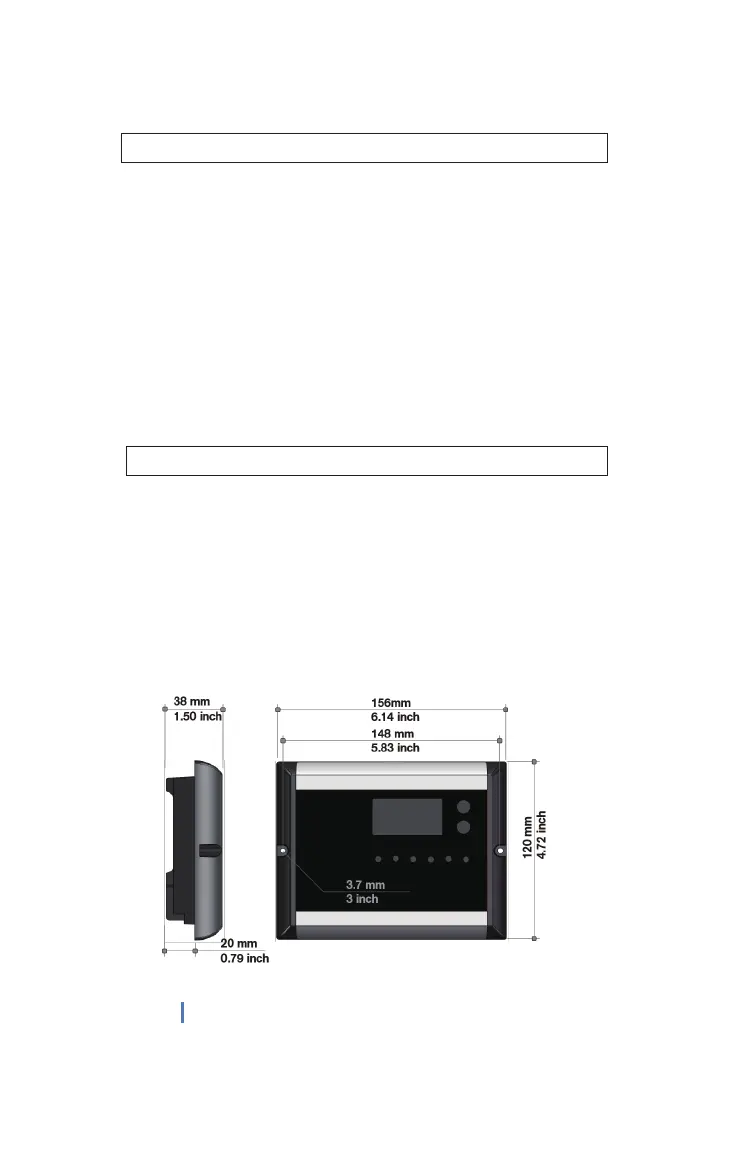

depth behind the controller or in the cavity. (Refer to Diagram below)
Using the dimensions shown in the following diagram, mark a 105mm x
130mm rectangle where you wish to mount the c
ontroller and cut-out the panel
opening then use the two self - tapping screws supplied to secure the unit.
To Next Page
