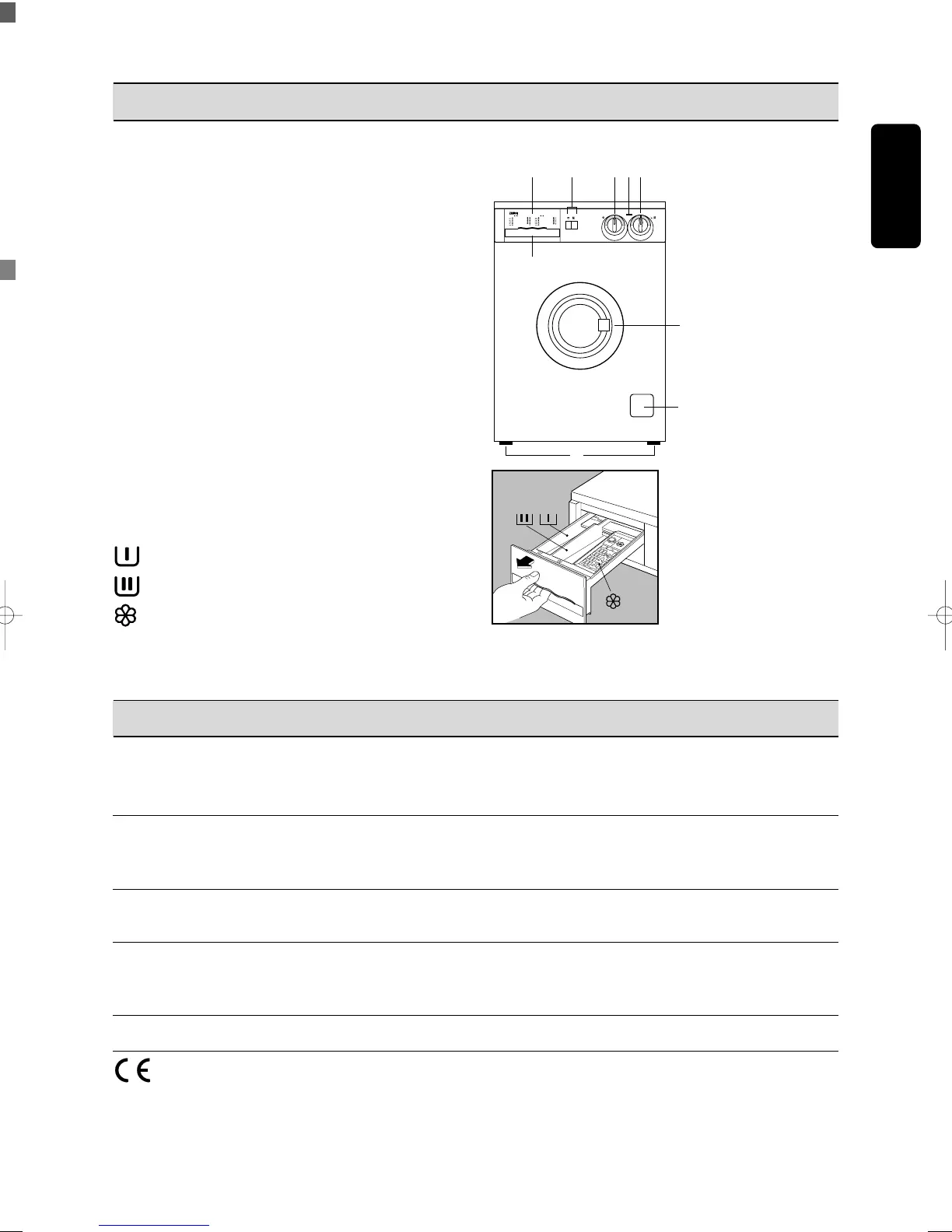

DESCRIPTION OF THE APPLIANCE
1 Detergent dispenser drawer
2 Programme chart
3 Option buttons
4 Temperature selector dial
5 Operating pilot light
6 Programme selector dial / ON-OFF switch
7 Door handle
8 Drain filter
9 Adjustable feet
Detergent dispenser drawer and
programme chart
Symbols
Prewash
Main wash
Fabric softener
There is a programme guide in symbols on the
handle of the detergent dispenser drawer.
C0006
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 54 cm
POWER SUPPLY VOLTAGE/FREQUENCY 220-230V/50 Hz
TOTAL POWER ABSORBED 2250 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 50 kPa
Maximum 800 kPa
MAXIMUM LOAD Cotton 5 kg
Synthetics, delicate fabrics 2 kg
Woollens 1 kg
SPIN SPEED 500 rpm
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility
8
7
9
1
654
32
D
F
G
M
N
P
40 °- 95°
30 °- 60°
30 °- 40°
30 °- 60°
30 °- 40°
30 °- 40°
A
B
B
C
H
J
K
L
