zapco DSP-Z8 III User Manual

for the Z8-R Dash Remote
The Zapco Z8-R
Updating the DPN

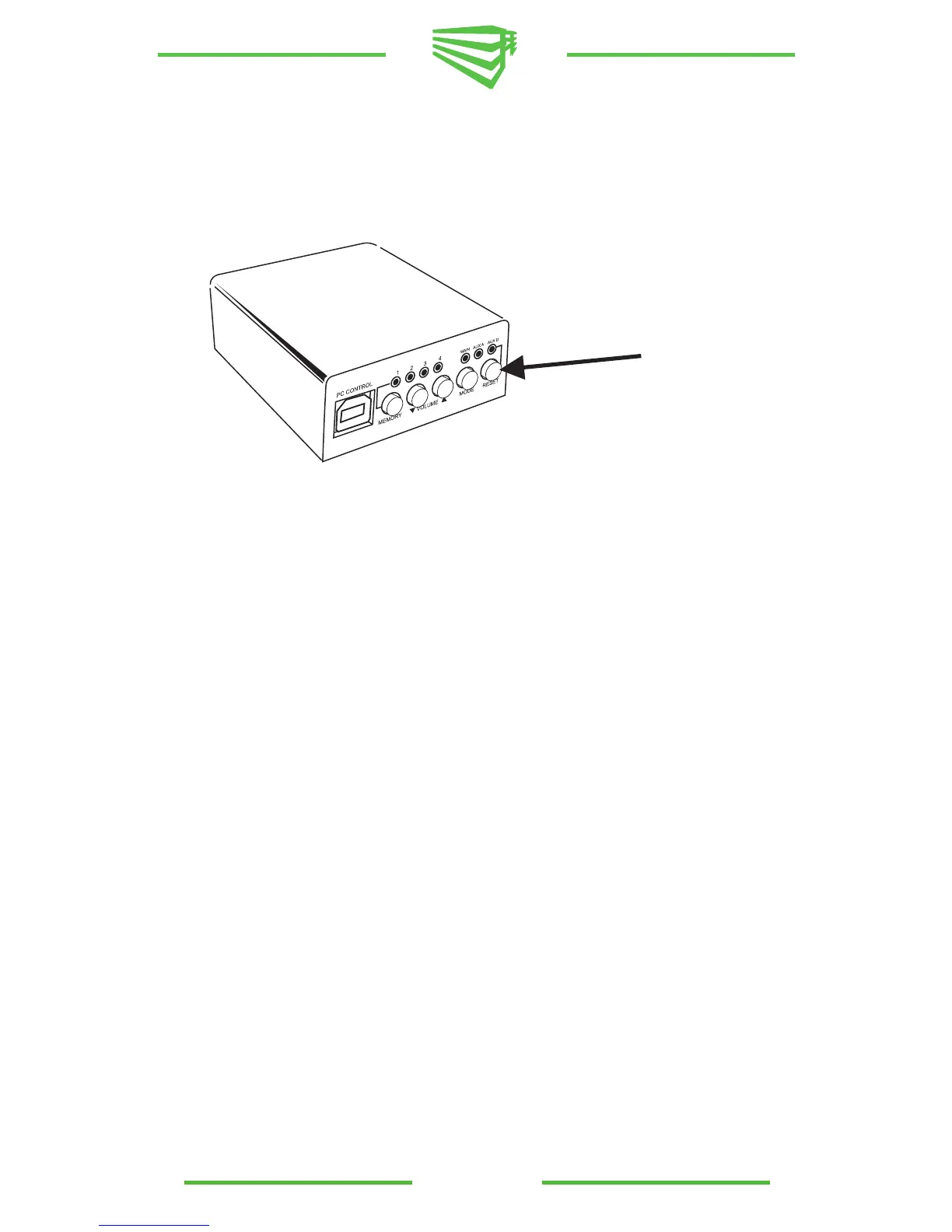

Reset Button
for use to update the
DPN program
the Z8-R . Updating the Z8-R is similar to updating the DSP-Z8 but there are some differences.
First: Remember you can not connect the PC directly to the Z8-R remote during the update procedure.
The PC must be connected directly to the PC
Zapco Z8-R Update procedure:
1) Be sure the system is turn on. You will not turn it off during this procedure.
2) Connect the PC to the DSP-Z8 using the supplied USB cable.
3) Connect the Zapco Z8-R to the DSP-Z8 using the supplied 6 conductor RG (Phone) cable.
4) Open the DPN and note the number of the COM port that the DSP is using.
5) Close the DPN program and open the Zapco Updater.
6) Assure that the updater is set to the correct COM port. If not then choose the correct COM port
using the drop-down list.
7) Click FILE OPEN and navigate to ZapcoDash.Hex Click Open or just double click the ZapcoDash.hex
file to open.
8) Now the ZapcoDash.Hex file should be next to the FILE OPEN block.
9) Click COM OPEN and the com port block will turn blue and the “start update” light will come on.
10) Now tap the Reset button (see above) and the update will begin
11) When the update is finished, you can close the updater
17
