DSP6-SL

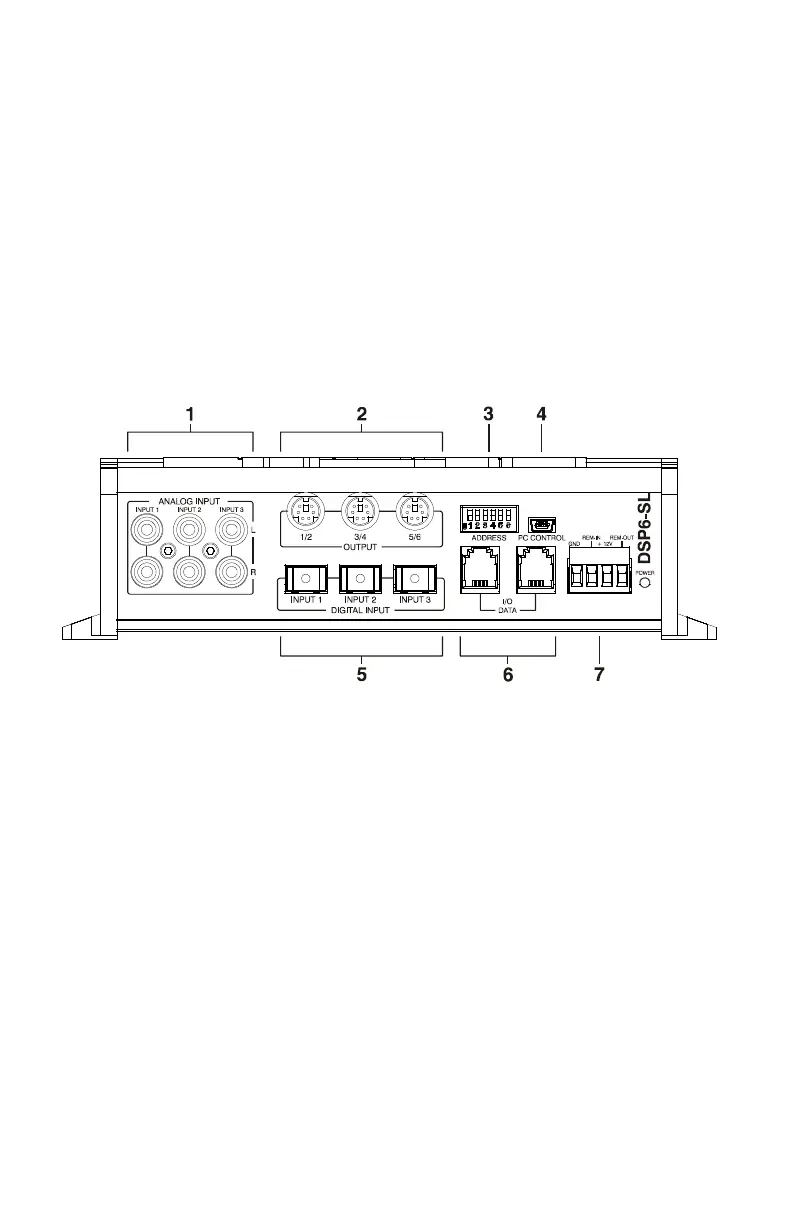

Front Panel Connections
1) RCA Inputs- Six channels of input are available through RCA
connectors.
2) DIN Outputs- Three Din Connectors provide six channels of
SymbiLink™ Balanced output.
3) DIP Switch- Six position DIP switch is used to address the unit and
assign a node on the Zapco Digital Programming Network.
4) USB Port- Like all Zapco DC products, the DSP6-SL has a USB port
to interface with a PC for all DSP programming functions.
5) Digital Inputs- Three optical connectors provide optional inputs.
6) Data Connectors- Two RG connectors provide Data in/out for
network cables (and DRC control input)
7) Power Connector- Provides Power, Ground, Turn On, and Aux
+12 volt out
