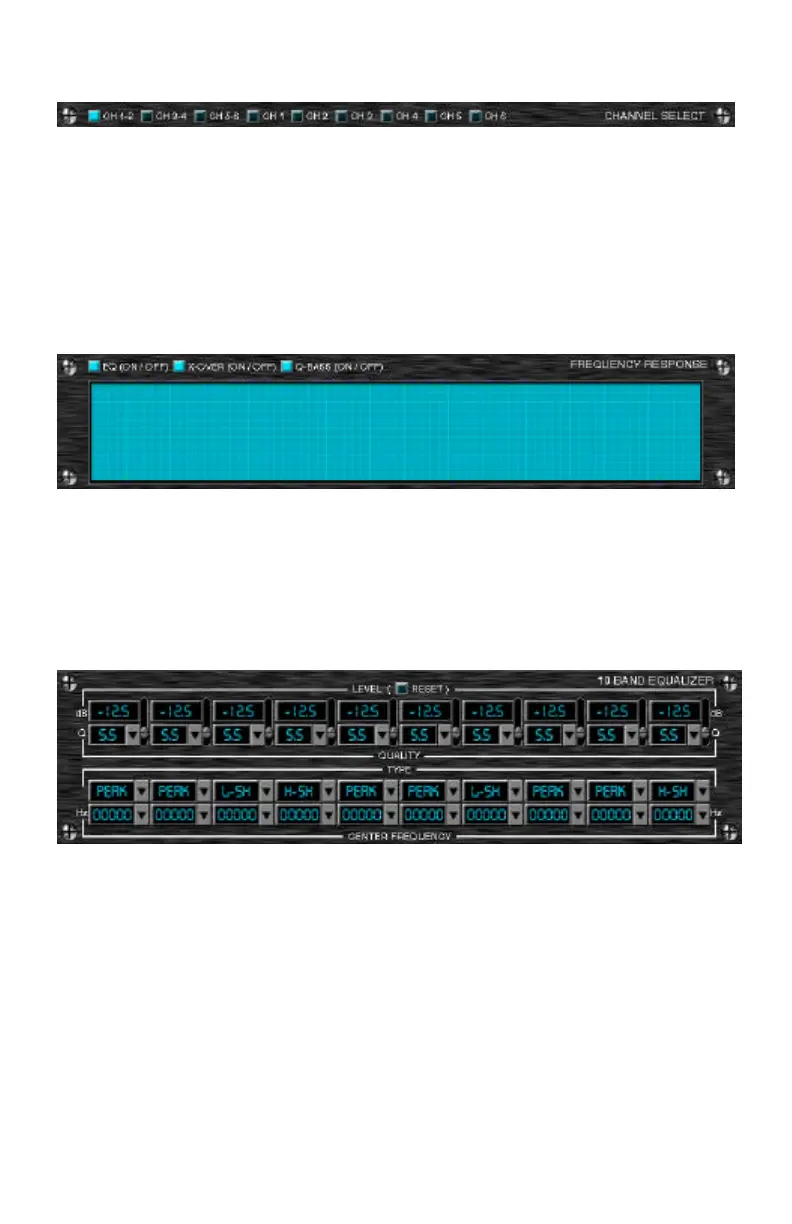

Channel Select
The top section of the PC screen allows you to determine which
available channels you will be programming. The number of options will be
determined by the Zapco Digital item you are programming. The Zapco
Digital Control will identify which unit you are programming and how many
channels are available. You can adjust the channels individually, or in stereo
pairs as required. Simply move the mouse to your choice and click it on.
Function/Graph
In this section you can turn the processing functions on or off to
compare the sound of your modified response to the unprocessed sound by
clicking the buttons on of off with your mouse. You can also monitor the
graph to see, in real time, how your adjustments will affect the input signal.
Equalizer
In this section you can make the adjustments to the parametric equalizer.
• The top row sets the level of the center frequency +_18dB
• The next row sets the Q (Slope) of the equalization. A low Q affects
a wide range of frequencies while a high Q affects a narrow range
of frequencies. The Graph screen will let you see how the different
Qs affect your response.
• The next row lets you pick the type of filter. A Peak filter affects the
center frequency up or down and affects the surrounding
frequencies on either side equally. A High Shelf alters all
frequencies above the center, while a Low Shelf affects all
frequencies below the center.
