1. Before installing the charging stations on the back panels, isolation
testing of all back panels must be performed. The surge protection may
kick in if this is done after the charging stations have been installed
and the test will fail. Measuring pins, wires or other items must not be
inserted into the quick coupling on the back panel. Voltage testing must
be performed directly against the coupling screws or using a female
coupling.
2. Do not mix the phases in the charging stations during installation. The
phase balancing will not work if the phases are mixed and the fuse may
trip.

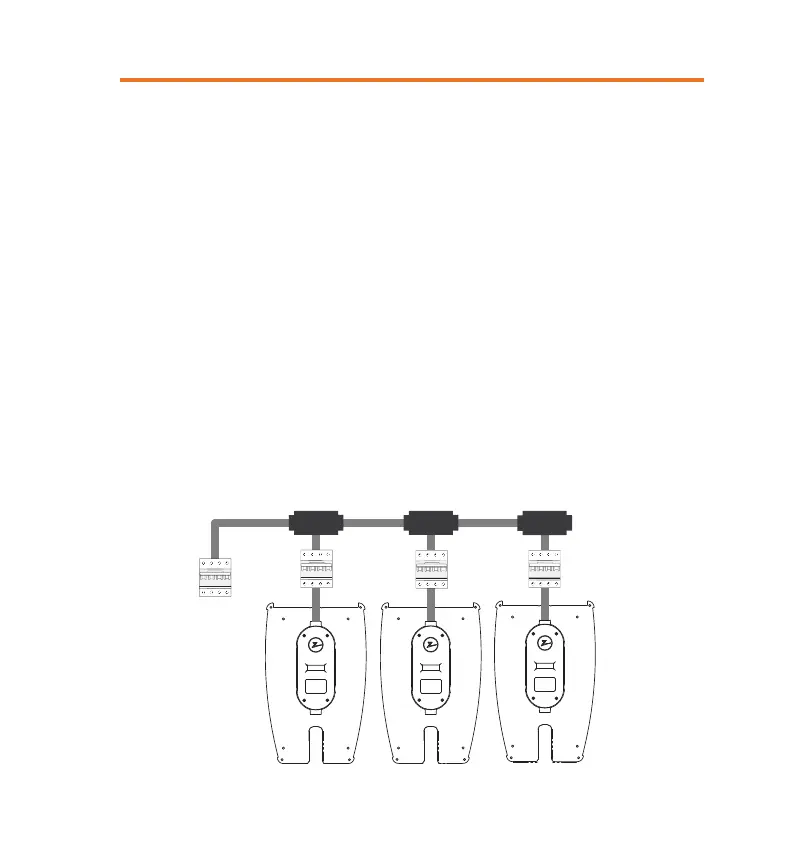

3. Each charging station must be protected by an individual circuit breaker
with a maximum rating of 40A. The load balancing functionality supports
up to 3 charging stations in one system.
5
Electrical connection
