ZCS Azzurro 3PH HYD15000 ZSS User Manual

User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID
113/138

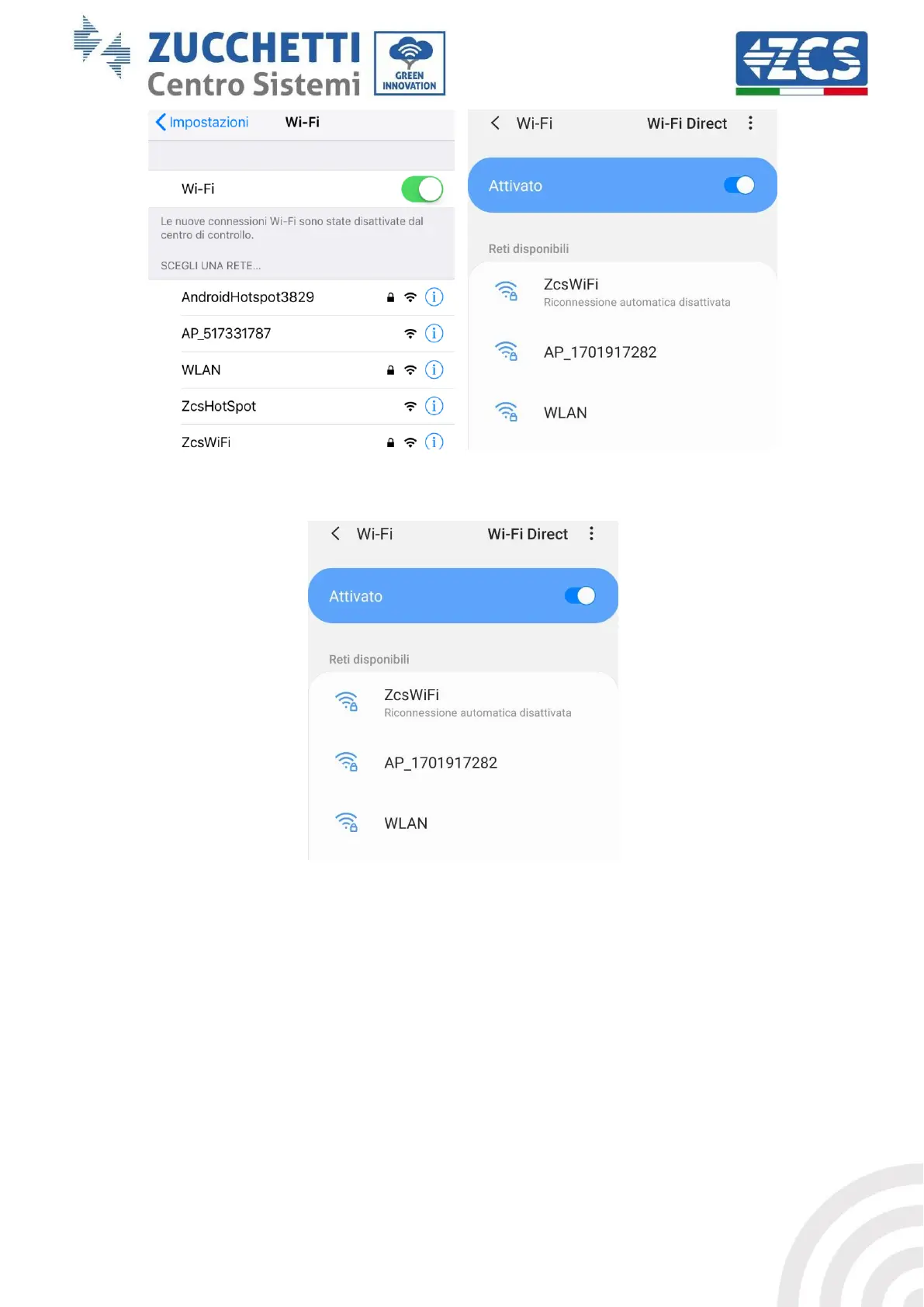

Figure 86 - Search for Wi-Fi networks on iOS smartphone (left) and Android smartphone (right)
Note: Disconnect from any Wi-Fi networks to which you are connected by removing automatic access.
Figure 87 – Disabling automatic reconnection to a network
2) Connect to a Wi-Fi network generated by the inverter's Wi-Fi adapter (i.e. AP_*******, where
******* indicates the serial number of the Wi-Fi adapter shown on the label of the device),
which operates as an access point.

ZCS Azzurro 3PH HYD15000 ZSS Specifications

General

Max. DC Voltage	1000 V
Number of MPPTs	2
Max. AC Power	15000 W
Nominal AC Voltage	400 V
Battery Voltage	48 V
Max. Charging/Discharging Current	200 A
Protection Degree	IP65
Output Power	15000 W
Type	Hybrid
Model	ZCS Azzurro 3PH HYD15000 ZSS
Phase	Three Phase
