User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID
59/138
④
⑤

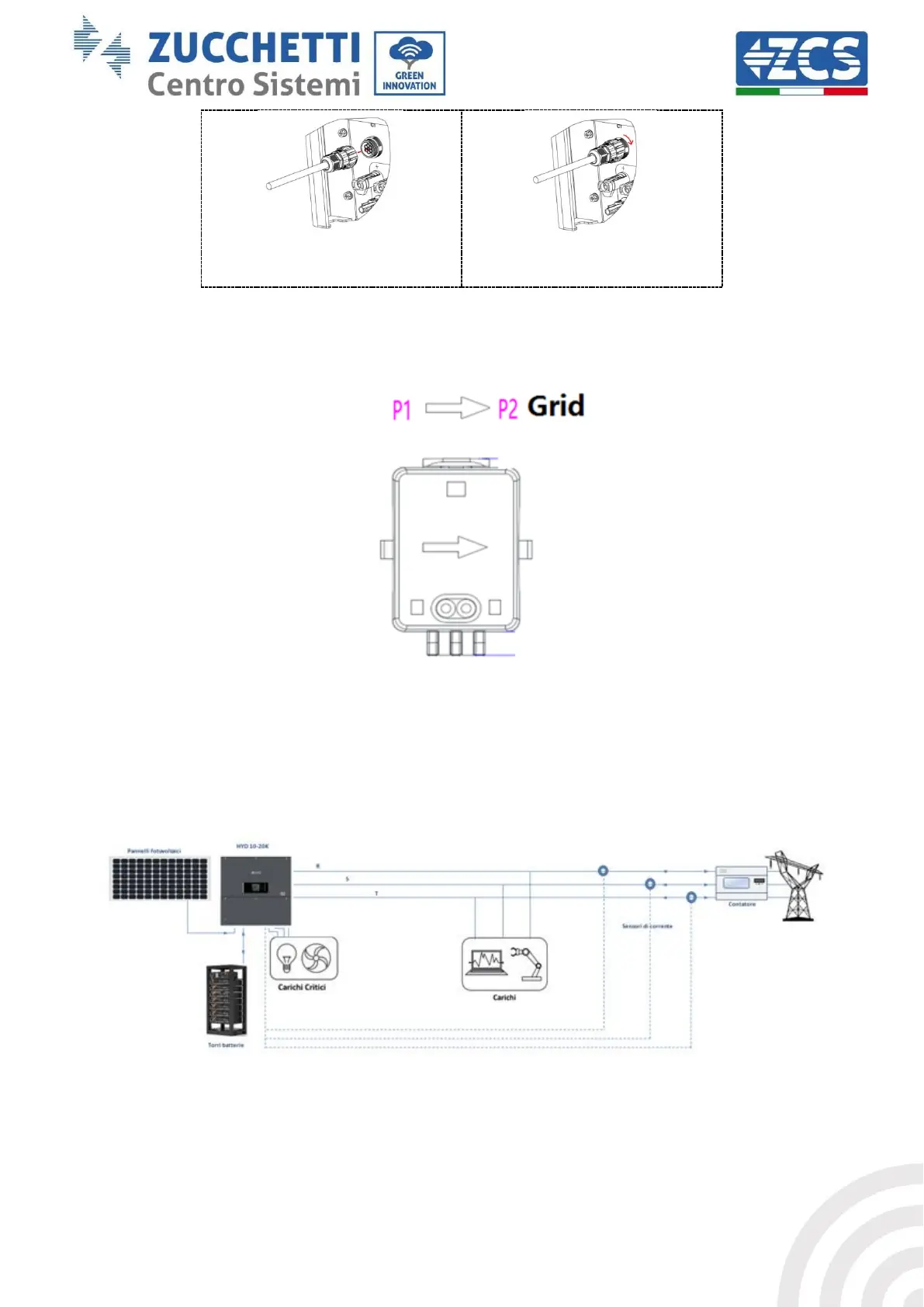

Figure 64 - CT interface
Take care to correctly identify the three phases as they are connected to the inverter on the grid
connector. The sensors of each phase must match.
Position the sensors according to the direction on the sensor (arrow).
Figure 65 - Reference to sensor direction
If it is necessary to extend the sensor connection cables, use UTP network cables or FTP grid
cables, if there is electrical/electronic noise near the wire that could cause interference.
This cable can be extended only up to a maximum of 50 metres.
Make sure to properly insulate the extension connections so as to prevent any low insulation
problems.
Figure 66 - Installation diagram of hybrid three-phase inverter with CT

ZCS Azzurro 3PH HYD15000 ZSS Specifications

General

Max. DC Voltage	1000 V
Number of MPPTs	2
Max. AC Power	15000 W
Nominal AC Voltage	400 V
Battery Voltage	48 V
Max. Charging/Discharging Current	200 A
Protection Degree	IP65
Output Power	15000 W
Type	Hybrid
Model	ZCS Azzurro 3PH HYD15000 ZSS
Phase	Three Phase
