User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID

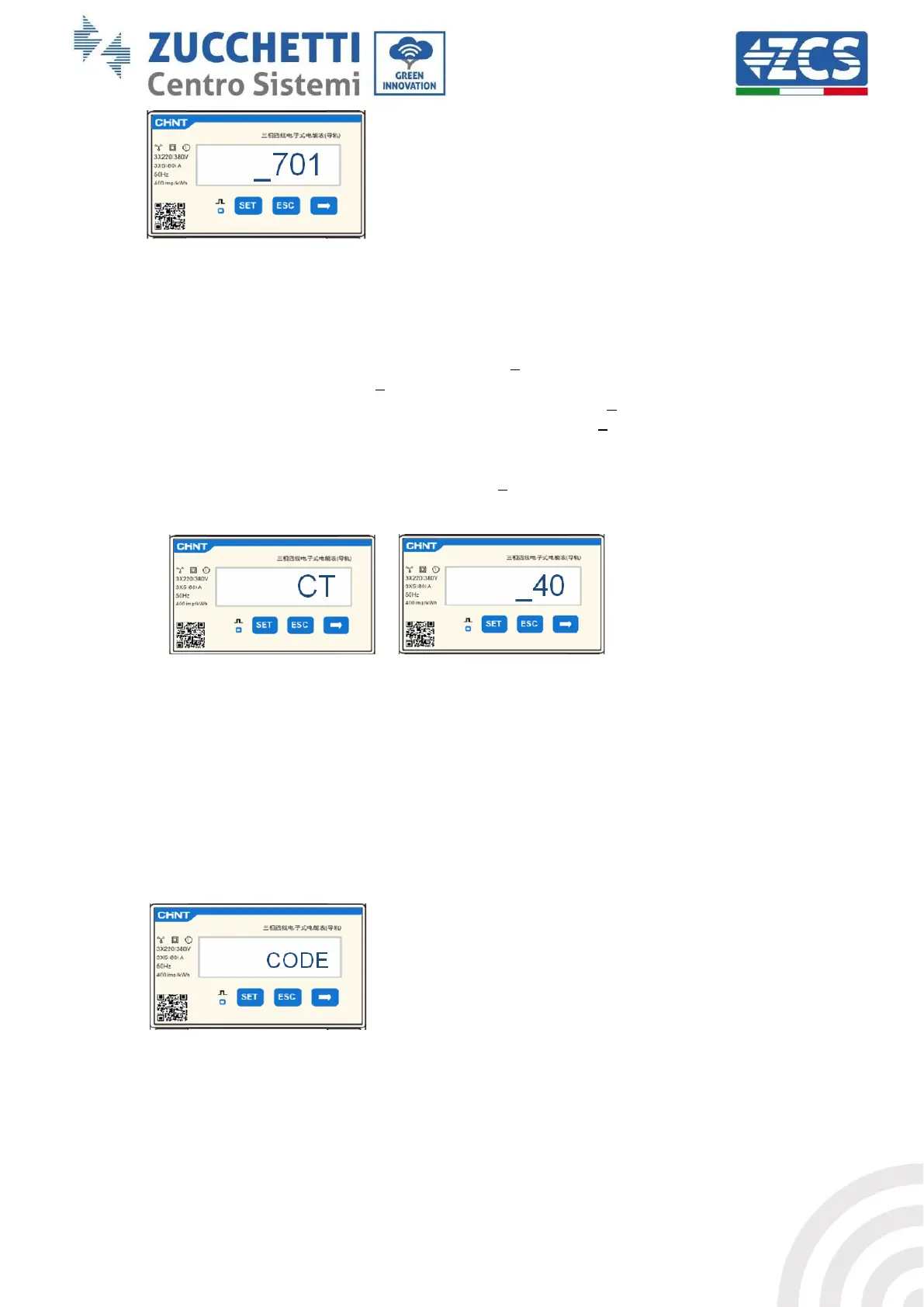

4. Confirm by pressing SET and to enter the settings menu.
5. Enter the following menus and set the parameters indicated:
a. CT:
i. Press SET to enter the menu
ii. Write “40”:
1. From the first screen where the number “1” appears, press the ”→” key several times
to write the number “10”.
2. Press “SET” once to move the cursor left, highlighting “10”
3. Press the “→” key several times to write the number “40”
Note: In case of error, press “SET” until the number relating to thousands is highlighted
and then press “→” until only the number “1” appears;
at this point repeat the above procedure.
iii. Press “ESC” to confirm and “→” to scroll to the next setting.
b. ADDRESS:
i. Leave address 01 (default setting) so that the inverter assigns the data sent by the meter
as the power relating to the exchange.
Configuring Meter on exchange and production
To configure the device in read mode on the exchange, refer to the instructions in section 4.3
(Configuring Meter on exchange).
To configure the device in read mode on production, enter the settings menu as shown below:
1. Press SET and the word CODE will appear
2. Press SET again and “600” will appear:
