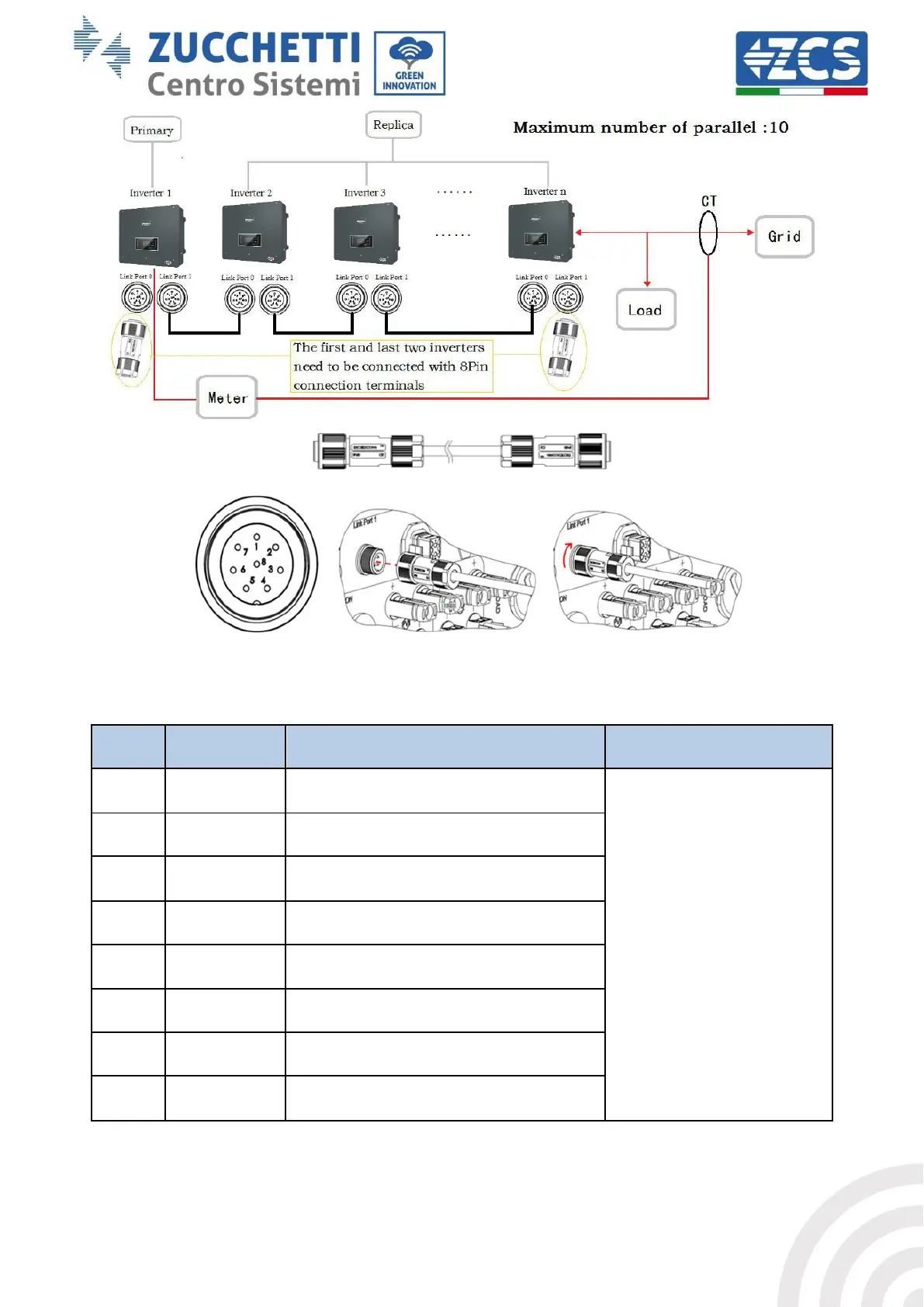

Figure 76 - Parallel connections between inverters
PIN
Definition
Function
Notes
1
IN_SYN0
Signal synchronisation 0
The high signal level
is 12 V
2
CANL
CAN negative polarity
3
SYN_GND0
Signal synchronisation GND0
4
CANH
CAN positive polarity
5
IN_SYN1
Signal synchronisation 1
6
SYN_GND1
Signal synchronisation GND1
7
SYN_GND2
Signal synchronisation GND2
8
IN_SYN2
Signal synchronisation 2
Table 14 - Interface description

ZCS Azzurro 3PH HYD15000 ZSS Specifications

General

Max. DC Voltage	1000 V
Number of MPPTs	2
Max. AC Power	15000 W
Nominal AC Voltage	400 V
Battery Voltage	48 V
Max. Charging/Discharging Current	200 A
Protection Degree	IP65
Output Power	15000 W
Type	Hybrid
Model	ZCS Azzurro 3PH HYD15000 ZSS
Phase	Three Phase
