Zebex Magic C Z-3100 User Manual

Magic C Z-3100 Buyer’s Guide
Copyright ©2010. All Rights Reserved
ZEBEX INDUSTRIAL INC.
Page 3 of 4
Standard Cable Options
 The standard cable is gray, straight, and 2 meters (6.5 feet) in length.
 The standard cable options include PS/2, RS-232 (either DCE or DTE pinout), USB, and etc.
 Special Order Requirement:
ZEBEX is capable of supplying special customized cable, given that customers provide detailed pin
configurations. The minimum order quantity of a special cable is 250 pcs.

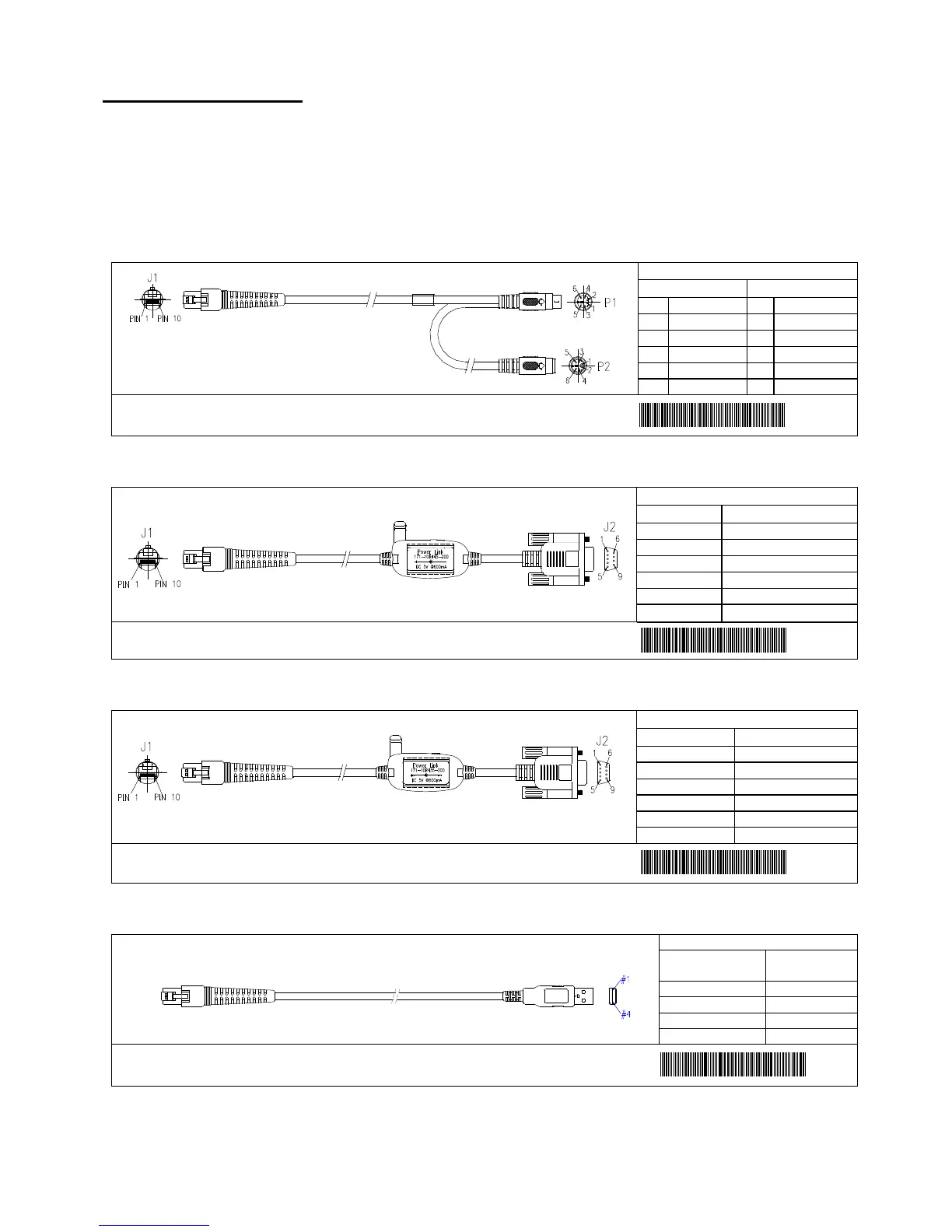

1. Keyboard Wedge Cable (for PS/2)
PIN-OUT CONFIGURATION
MINI DIN (M)
MINI DIN(F)
1.
PC Data 1.
KB Data
2.
N.C. 2.
N.C.
3.
GND 3.
GND
4.
+5V 4.
+5V
5.
PC Clock 5.
KB Clock
6.
N.C. 6.
N.C.
Item Part No.
171-10K100-200
2. RS-232C Communication Cable (DTE pin out)
PIN-OUT CONFIGURATION
DB-9 (F) FUNCTION
2 TX
3 RX
7 CTS
8 RTS
5 GND
9 +5V Input
Item Part No.
171-10R445-200
3. RS-232C Communication Cable (DCE pin out)
PIN-OUT CONFIGURATION
DB-9 (F) FUNCTION
2 RX
3 TX
7 RTS
8 CTS
5 GND
9 +5V Input
Item Part No.
171-10R435-200
4. HID USB / Virtual COM USB / OPOS USB Interface with Detachable Cable Type A
PIN-OUT CONFIGURATION
USB TYPE A
Connector
FUNCTION
1. VCC
2. D-
3. D+
4. VSS
Item Part No.
171-10U301-200
* Additional software installation may be necessary for activating virtual COM or OPOS USB interface.

Zebex Magic C Z-3100 Specifications

General

Scan Technology	Laser
Light Source	650 nm visible laser diode
Scan Rate	100 scans per second
Humidity	5% to 95% (non-condensing)
Ambient Light Immunity	Up to 100, 000 lux
Resolution	0.1 mm (4 mil)
Interface	USB, RS-232, Keyboard
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C - 60°C (-4°F - 140°F)
Print Contrast Ratio	Minimum 30%
Drop Specification	1.5 m
Decode Capability	1D barcodes
