Zebra 3 FM User Manual

2 3
Introduction
Thank you for purchasing the Zebra 3 FM digital proportional radio control system.
The Zebra 3 FM is easy to use and utilizes the latest in solid-state components for
unsurpassed reliability and performance. It is important that you read and understand this manual
before you operate your system.
CONTENTS
1. TRANSMITTER
A. Features
- Ergonomically designed 3 channel FM transmitter.
- Precision gimbals.
- Neutral position adjustment for throttle
- SMT circuitry
- Servo reversing on CH1, CH2.
- CH1, CH2 Mixing. (Aero only)
- SIC(Simulating Interface Cable) Compatible
- Easy to read 1 LED battery indicators.
- Size: 174 x 168mm (6.85 x 6.61 in)
- Weight: 330g
- Power supply: 7.2V (6 cell) NiCd or NiMh battery or 6cell Dry battery

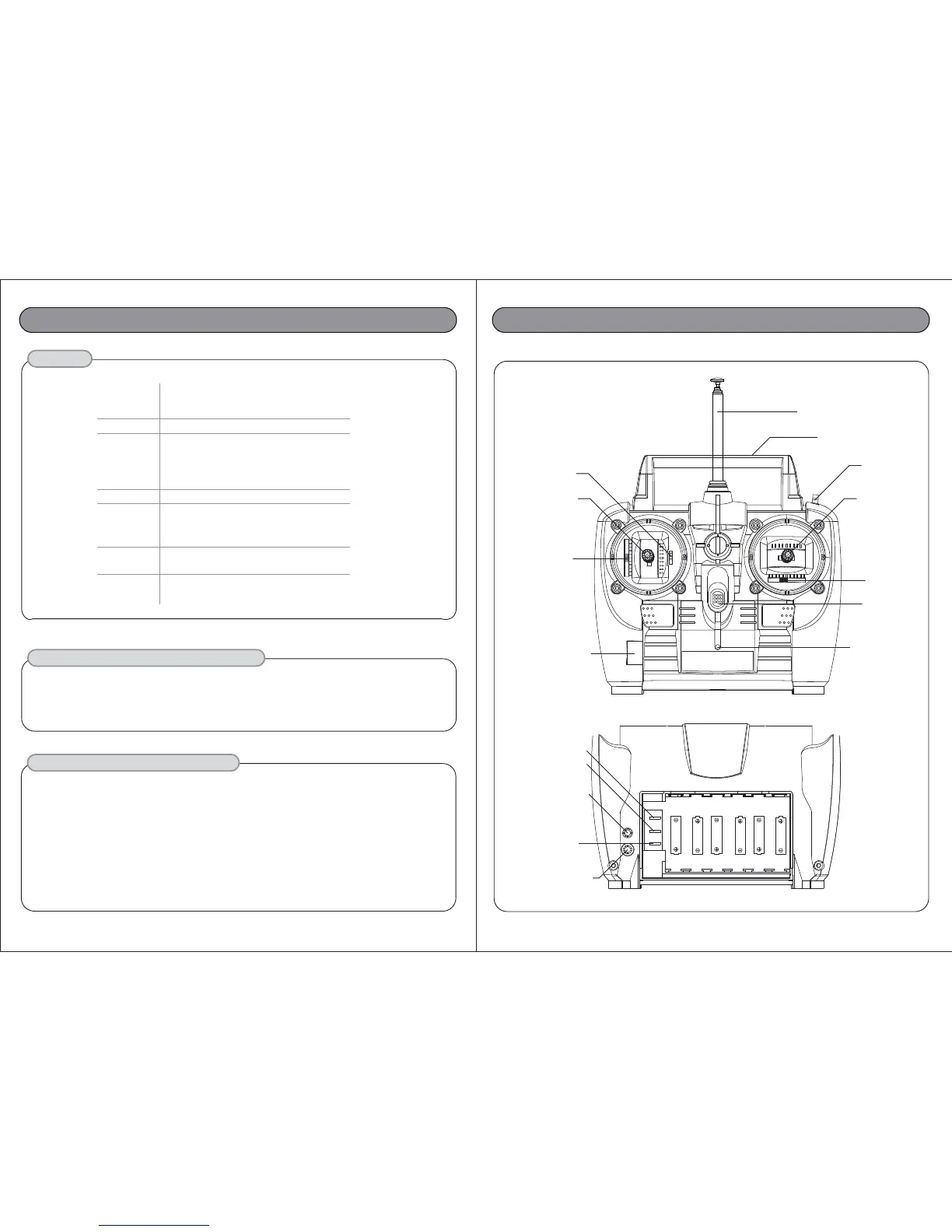

B. Layout
TRANSMITTER
ANTENNA
CARRYING
HANDLE
L.E.D
INDICATOR
TRANSMITTER
CRYSTAL
Ch.2 THROTTLE
CONTROL STICK
NEUTRAL POSITION
ADJUSTMENT LEVER
THROTTLE
TRIM LEVER
STEERING
TRIM LEVER
Ch.1 STEERING
CONTROL STICK
POWER
ON/OFF SWITCH
Ch.3 Slide Switch
THROTTLE SERVO
REVERSE SHUNT SWITCH
CHARGING JACK
MIXING SHUNT SWITCH
(Aero Only)
SIC JACK(Aero Only)
STEERING SERVO
REVERSE SHUNT SWITCH
FRONT
BACK
Zebra 3 FM Instruction ManualZebra 3 FM Instruction Manual
1. Transmitter
 a. Features
 b. Layout
 c. Servo Reversing
 d. Mixing (Aero only)
 e. Trim lever
 f. Reading the LED Battery Indicator
2. Battery Installation
3. Operation
a. Installation of Receiver and Servos
 b. Transmitter, Receiver and Servo Settings
c. Simulator System
d. Range checking
4. Replacement Parts & Accessories
5. Precautions
Page 2.
Page 3
Page 4.
Page 5.
Page 6.
Page 7.
Page 8.

Zebra 3 FM Specifications

General

Brand	Zebra
Model	3 FM
Category	Remote Control
Language	English
