Zebra MC93 Series User Manual

MC93XX Quick Start Guide
12
1. Align the battery with the battery slot.

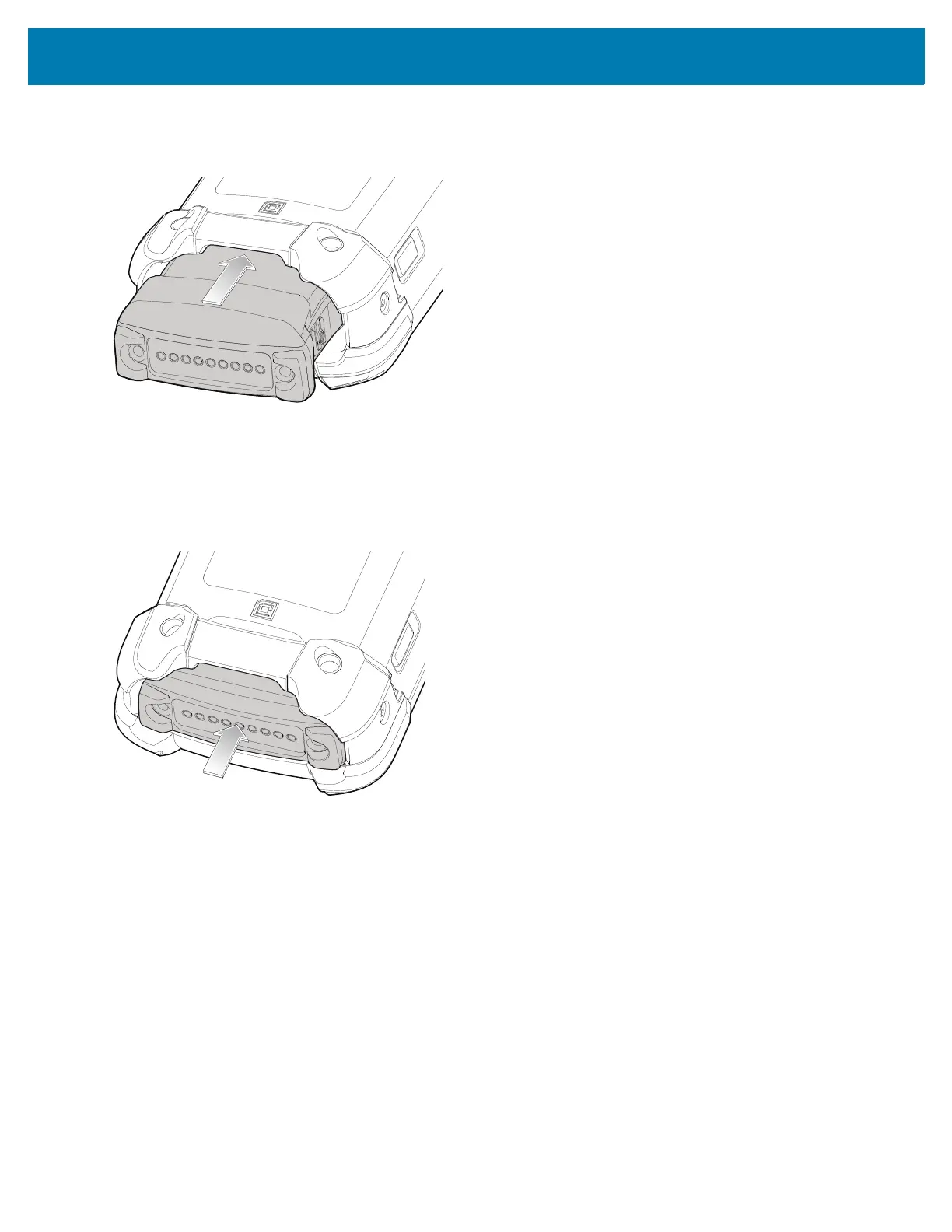

Figure 14 Inserting the Battery
2. Push the battery into the battery slot.
3. Press battery firmly into the battery well. Ensure that both the battery release buttons on the sides of the device
return to the home position. You will hear an audible click sound indicating that both the battery release buttons
on the sides of the device have returned to the home position locking the battery in place.
Figure 15 Press Battery In
4. Press the Power button to turn on the device.

Zebra MC93 Series Specifications

General

Operating Temperature	-4°F to 122°F/-20°C to 50°C
Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Operating System	Android 11
RAM	4 GB
Storage	32 GB Flash
Battery	7000 mAh
Connectivity	USB 2.0
Camera	13 MP rear camera
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete per MIL-STD 810G across operating temperature range
Sealing	IP65
Touch Panel	Capacitive Corning Gorilla Glass
Keypad Options	Numeric, Function Numeric, Alpha-Numeric
Scanning	1D/2D
Wireless LAN	802.11 a/b/g/n/ac
Audio	Speaker, microphone
Display	4.3 in. WVGA (800 x 480), color TFT-LCD with backlight
