TC21/TC26 Quick Start Guide
13

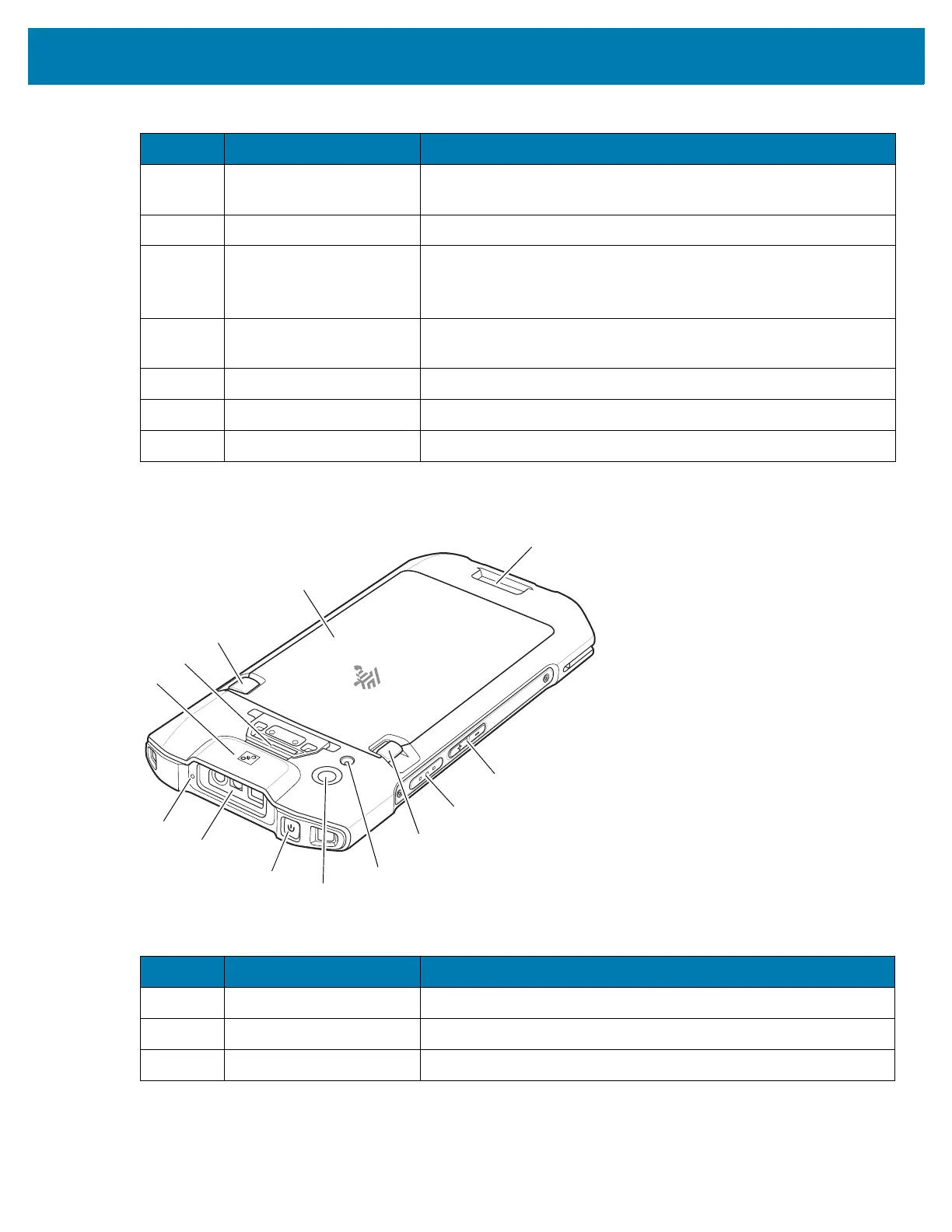

Figure 2 Rear View
5 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
6 Touch Screen Displays all information needed to operate the device.
7 Speaker Provides audio output for video and music playback. Provides
audio in speakerphone mode.
8 USB-C Connector Provides USB host and client communications, and device
charging via cables and accessories.
9 Microphone Use for communications in Handset mode.
10 PTT Button Initiates push-to-talk communications (programmable).
11 Scan Button Initiates data capture (programmable).
Table 2 Back View Features
Number Item Function
12 NFC Antenna Provides communication with other NFC-enabled devices.
13 Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory.
14 Battery Release Latches Press to remove the battery.
Table 1 Front View Features (continued)
Number Item Function
15
16
13
17
14
18
19
20
21
13
14
22
12
