Zebra ZT400 - Page 14

13
Load Media and Ribbon
4/8/14 ZT400™ Series Quick Reference Guide P1060608-003

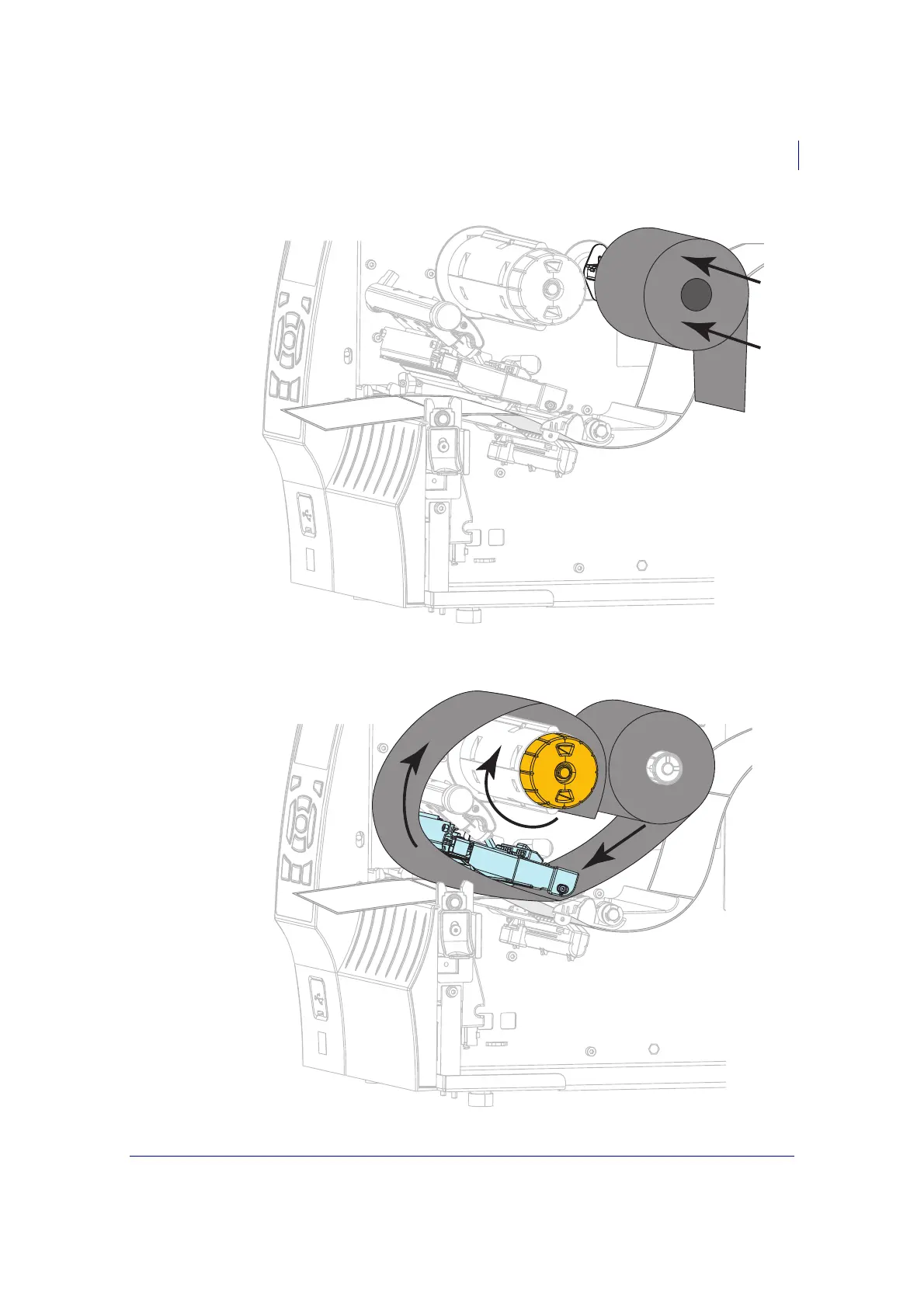

13. Place the roll of ribbon on the ribbon supply spindle. Push the roll back as far as it will go.
14. Slide the ribbon under the printhead assembly, and then wrap it several turns around the
ribbon take-up spindle.
