2.4 Starting up the unit
• Check that the battery is fresh: switch on the unit by pressing the power button.
The light in the button must now be on. If it is not, replace the battery.
• You can use a rechargeable NiCd battery instead of the non-rechargeable
standard battery supplied.
• The period during which the Siemens star is illuminated has been set to approx. 1
min in the factory. You can change this period from 1 minute to 10 minutes using
the R 10 potentiometer.
Caution: Prevent the build-up of electrical static. The components on the PCB
can be destroyed by electrostatic discharge !

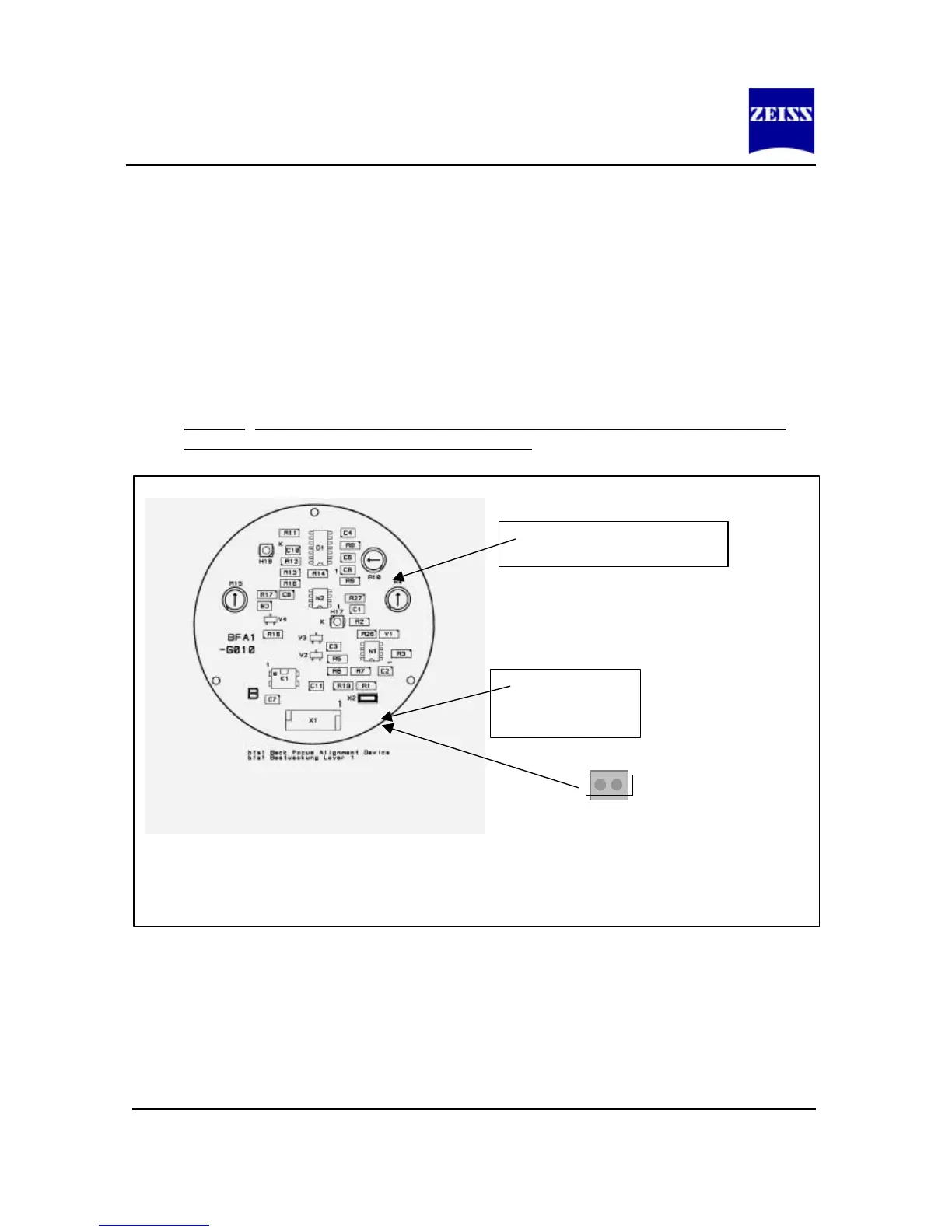

Fig.
R 10 potentiometer for adjust-
ing the illumination-ON period
Position of X2
clip-on jumper
