SOLENOID VALVE
• Loosen connector screw to allow the electrical
connector assembly to be removed from the
D.I.N. unit solenoid.
• Remove retainer nut and separate the valve
body from the D.I.N. unit solenoid.
• Unthread the plunger tube assembly in a
counter-clockwise direction until plunger
separates from valve body.
• Clean beveled washer, threaded gasket, spring
assembly and strainer with soap and water. Do
NOTuse solvents of any kind, as failure to the
seals will occur. Be especially careful to clean
the center brass orifice and the rubber gasket
orifice on the orifice cup with a straight pin.
• Reassemble all drain components after the drain has been cleaned and inspected. Reposition
the orifice hole on the rubber gasket of the orifice cup in the line and closest to the arrow
indicated on the valve body.
• Reassemble valve and install in reverse order as described above.

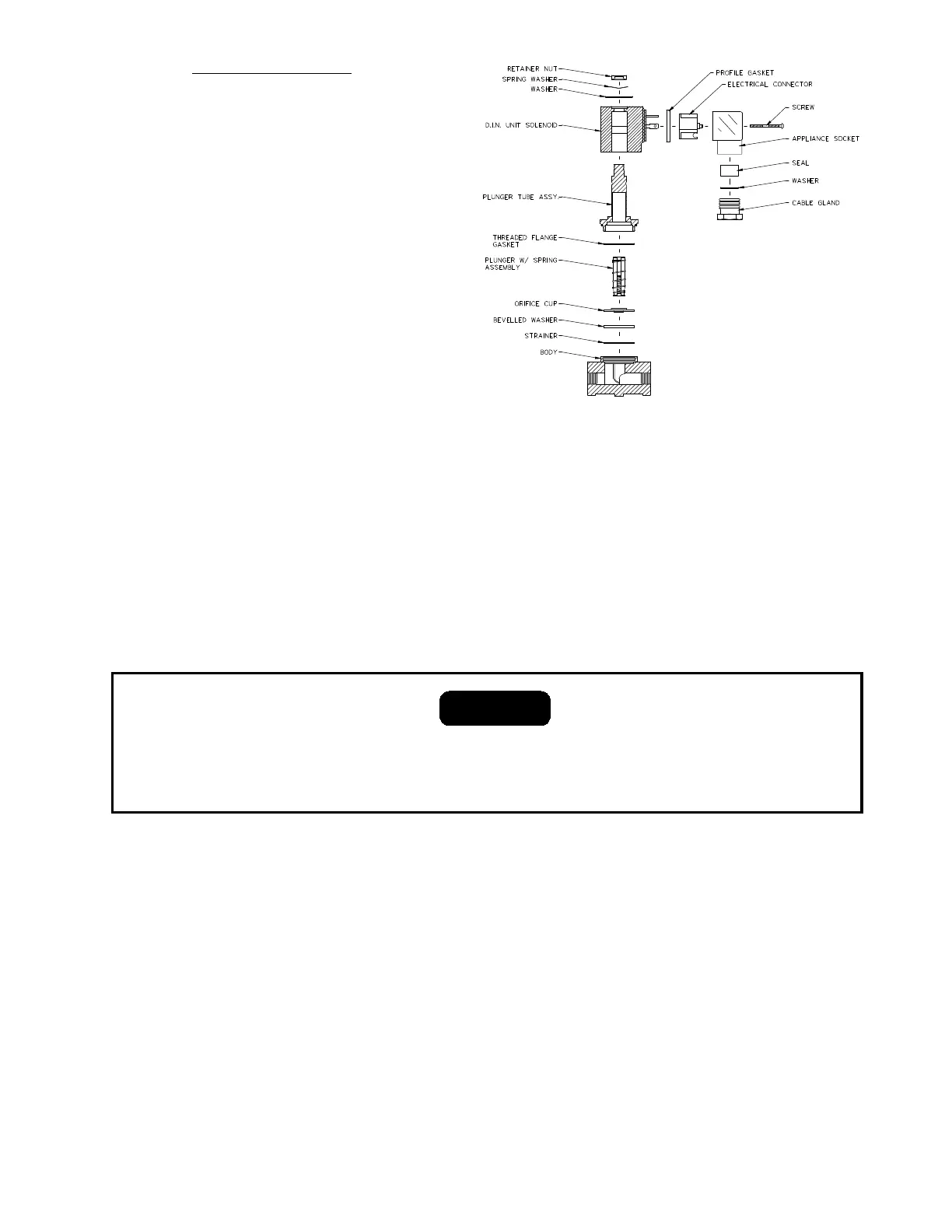

SOLENOID VALVE
DETAIL
Failure to periodcally check and clean drain valve may result in drain becoming clogged.
Should this occur, moisture remaining within separator may travel downstream of dryer.
