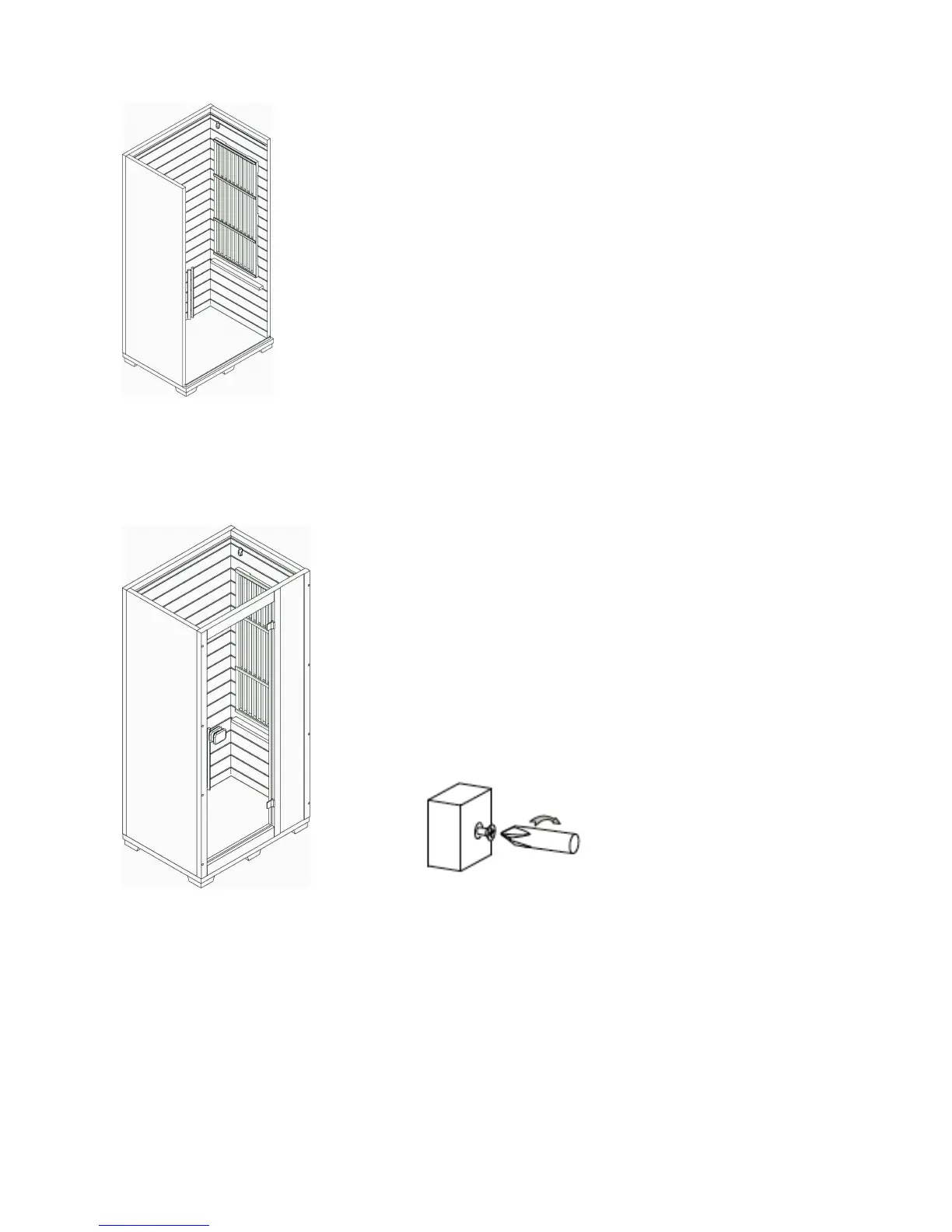

FIG-7 Assembling Right Panel
6. Align the Front Panel with Bottom Panel’s corresponding battens, and then screw it with the Left and
Right Panels respectively. Notes: Take caution of the glass door to avoid damage. See FIG-8 and FIG-6 .
FIG-8 Assembling front board Screwing
7. Assembling bench support - Slide the bench support down vertically into the slot within back and right
panel. then locate bench support and slide into place.
8. Put the bench horizontally on corresponding battens of the right board.
9. Put the wires of Front Panel and Back Panel into the cabinet to avoid pressing the wires during
installing. Open the door, raise the Top Panel high enough to see if it fits with the surrounding boards,
then put down. See FIG-9
6
