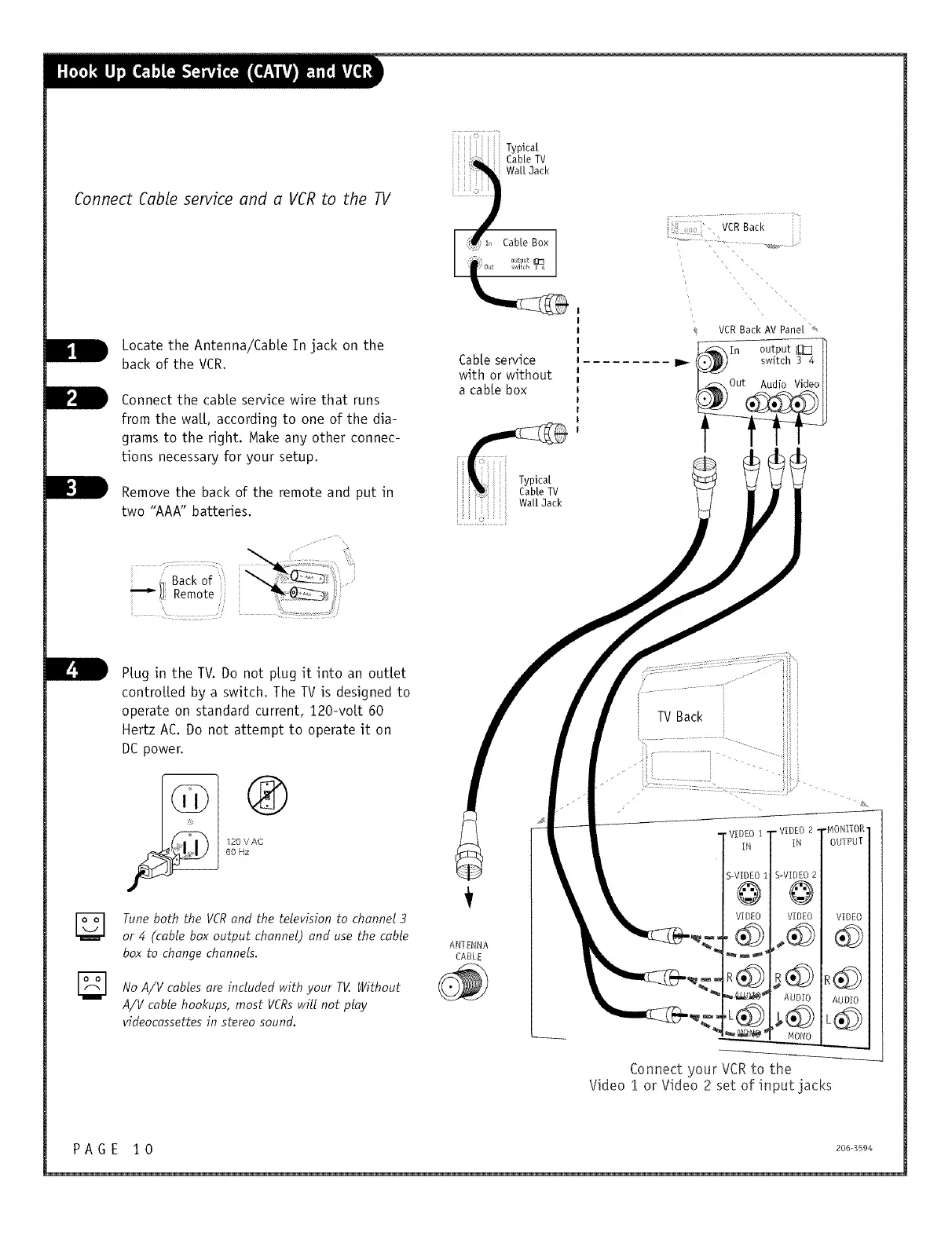

Connect Cable service and a VCRto the TV
Locate the Antenna/CabLe In jack on the
back of the VCR.
Connect the cable service wire that runs
from the waLL, according to one of the dia-
grams to the right. Make any other connec-
tions necessary for your setup.
Remove the back of the remote and put in
two "AAA" batteries.
.......................Oa ,-- iiii
---u Remote
Typical
?_ CabLeTV
: _) WalL 3ack
_Alr_i,, Cabte Box
_|_out _°_I_
CabLeservice
with or without
a cable box
VCR Back
VCRBack AV Pane[
_In output [_L]
Ib_ ,_ switch 34
Hug in the TV. Do not ptug it into an outtet
controtted by a switch. The TV is designed to
operate on standard current, 120-vo[t 60
Hertz AC. Do not attempt to operate it on
DC power.
120 VAC_
60 Hz
[_ Tuneboth the VCRand the television to channel 3
or 4 (cable box output channel) and use the cable
ANTENNA
box to change channels. CABLE
NoA/V cables are included with your TV.Without _)
A/V cable hookups, most VCRswill not play
videocassettesin stereo sound.
TV Back
J
*VIDEO I "_'VIDEO 2 .-MONITOR
IN IN OUTPUT
S-VIDEO 11 S-VIDEO 2
@
VIDEO
@
VIDEO
VIDEO
AUDIO
--,..,..,...,..,..
Connect your VCRto the
Video 1 or Video 2 set of input jacks
PAGE 10 _o6-3594
