DIAL LIGHT REPLACEMENT
Four wedge base type lamps (DS501 through DS504) are
used in these models. They may be replaced in the following
manner.
1.
Remove cabinet top (1) as explained above.
2.
Lamps are mounted in grommets (60 on MC7031 and 21
on MC7041).
3. Remove grommet and lamp.
4. Lamp is soldered to leads within grommet.
5. Carefully pull lamp out of grommet.
6. Unsolder lamp leads and remove lamp.
7. Solder new lamp to leads.
8. Press lamp into grommet, being certain that it is fully
seated.
9.
Press grommet firmly into light reflector (23 on MC7031
and 22 on MC7041), using a twisting motion until it is
secure.
10.
Be certain that leads are dressed away from the dial cord.
17

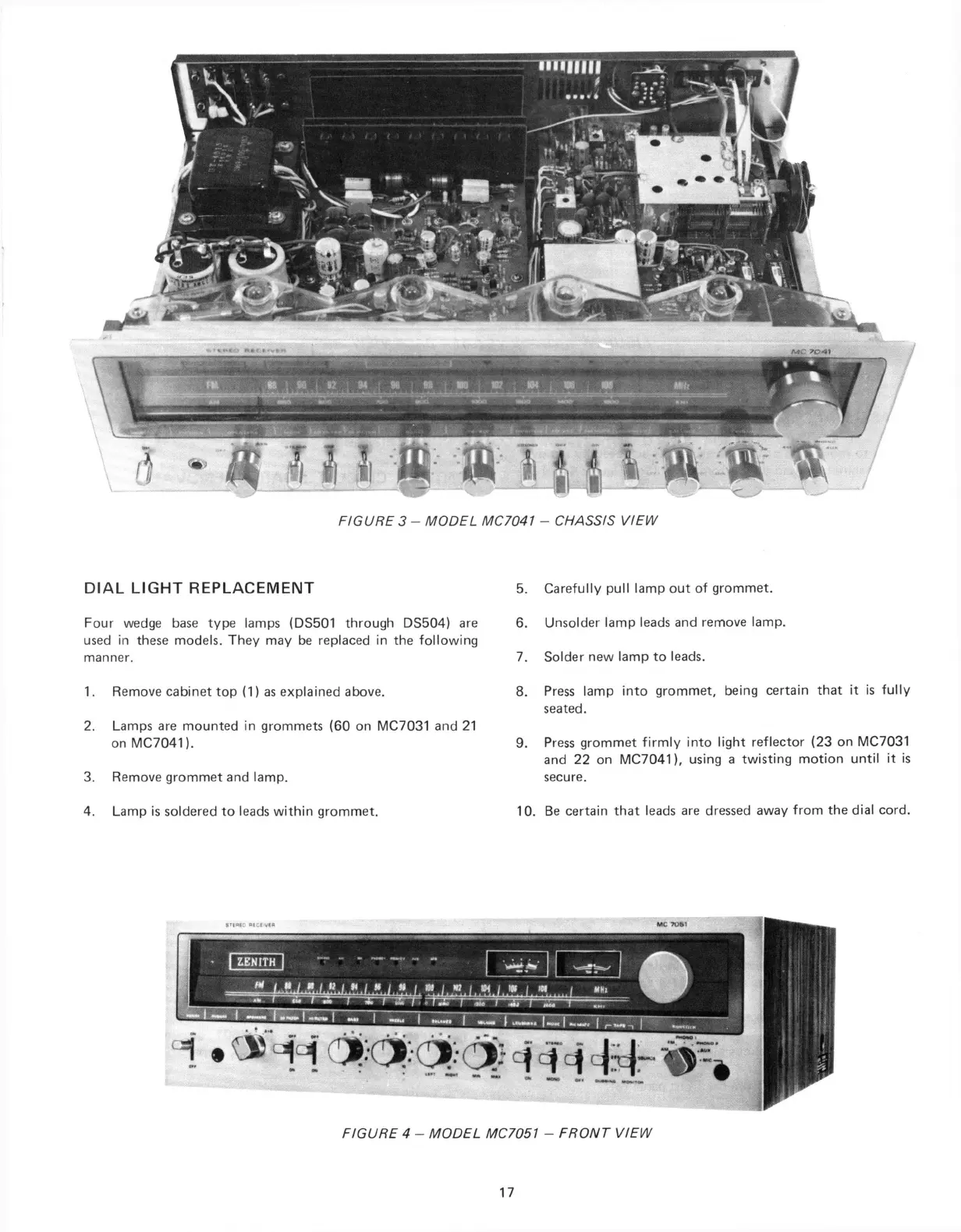

FIGURE 3 - MODEL MC7041 - CHASSIS VIEW
FIGURE 4 - MODEL MC7051 - FRONT VIEW
