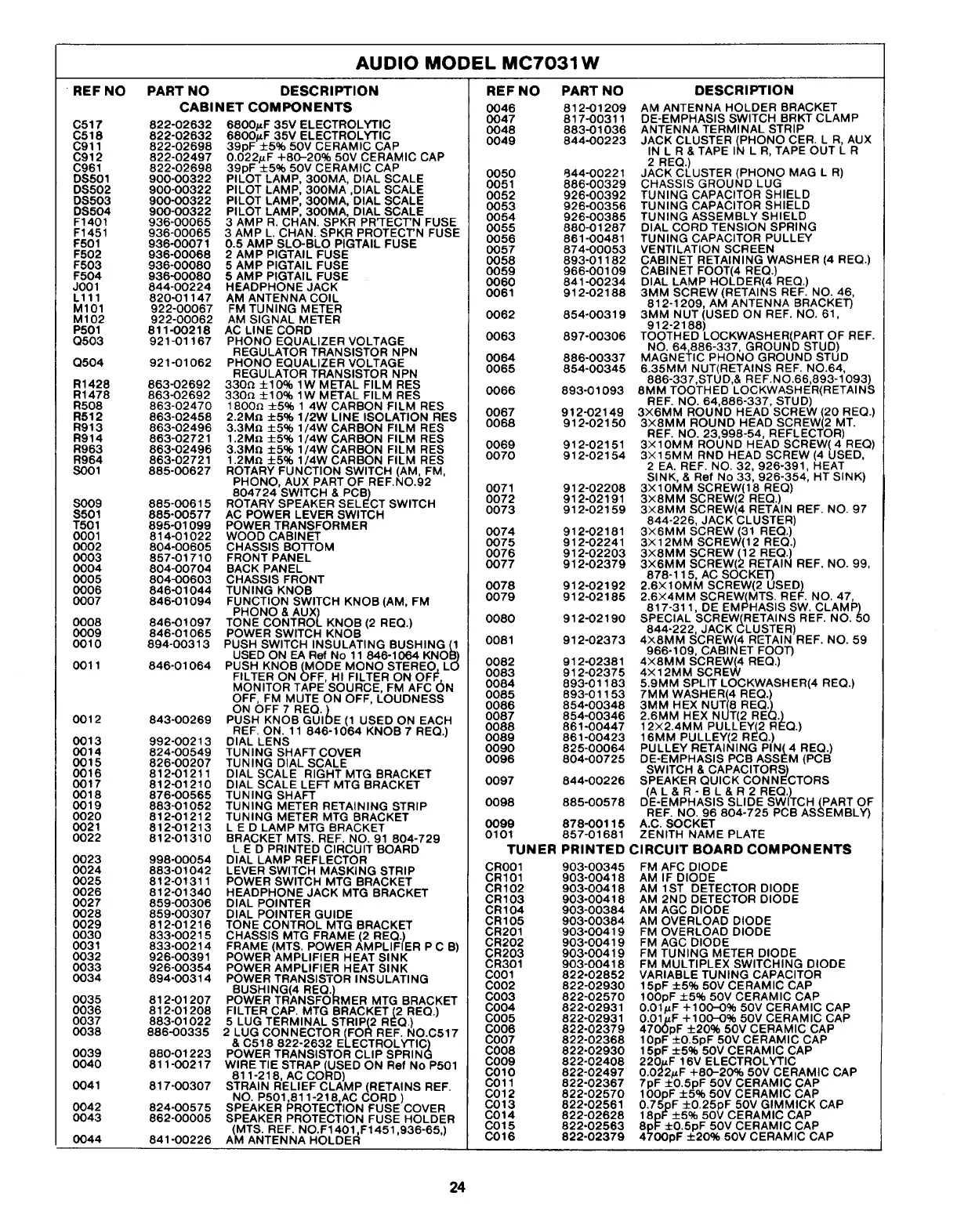

AUDIO MODEL MC7031W
REF NO
PART NO DESCRIPTION
CABINET COMPONENTS
C517
822-02632
6800uF 35V ELECTROLYTIC
C518 822-02632 6800uF 35V ELECTROLYTIC
C911 822-02698 39pF ±5% 50V CERAMIC CAP
C912 822-02497 0.022uF +80-20% 50V CERAMIC CAP
C961 822-02698 39pF ±5% 50V CERAMIC CAP
DS501 900-00322 PILOT LAMP. 300MA, DIAL SCALE
DS502 900-00322 PILOT LAMP. 300MA .DIAL SCALE
DS503 900-00322 PILOT LAMP. 300MA. DIAL SCALE
DS504 900-00322
PILOT LAMP. 300MA. DIAL SCALE
F1401 936-00065 3 AMP R. CHAN. SPKR PR'TECT'N FUSE
F1451 936-00065 3 AMP L. CHAN. SPKR PROTECT'N FUSE
F501 936-00071
0.5 AMP SLO-BLO PIGTAIL FUSE
F502
936-00068 2 AMP PIGTAIL FUSE
F503
936-00080 5 AMP PIGTAIL FUSE
F504
936-00080 5 AMP PIGTAIL FUSE
J001 844-00224 HEADPHONE JACK
L111 820-01147 AM ANTENNA COIL
M101 922-00067
FM TUNING METER
M102 922-00062
AM SIGNAL METER
P501 811-00218 AC LINE CORD
Q503 921-01167
PHONO EQUALIZER VOLTAGE
REGULATOR TRANSISTOR NPN
Q504 921-01062 PHONO EQUALIZER VOLTAGE
REGULATOR TRANSISTOR NPN
R1428 863-02692
330Ω ±10% 1W METAL FILM RES
R1478 863-02692
330Ω ±10% 1W METAL FILM RES
R508
863-02470 1800Ω ±5% 1 4W CARBON FILM RES
R512
863-02458 2.2MΩ ±5% 1/2W LINE ISOLATION RES
R913 863-02496 3.3MΩ ±5% 1/4W CARBON FILM RES
R914 863-02721
1.2MΩ ±5% 1/4W CARBON FILM RES
R963 863-02496 3.3MΩ ±5% 1/4W CARBON FILM RES
R964
863-02721
1.2MΩ ±5% 1/4W CARBON FILM RES
S001 885-00627
ROTARY FUNCTION SWITCH (AM, FM,
PHONO, AUX PART OF REF.NO.92
804724 SWITCH & PCB)
S009 885-00615 ROTARY SPEAKER SELECT SWITCH
S501 885-00577 AC POWER LEVER SWITCH
T501 895-01099 POWER TRANSFORMER
0001 814-01022
WOOD CABINET
0002
804-00605
CHASSIS BOTTOM
0003
857-01710 FRONT PANEL
0004 804-00704 BACK PANEL
0005
804-00603
CHASSIS FRONT
0006
846-01044
TUNING KNOB
0007 846-01094
FUNCTION SWITCH KNOB (AM, FM
PHONO & AUX)
0008 846-01097 TONE CONTROL KNOB (2 REQ.)
0009 846-01065
POWER SWITCH KNOB
0010
894-00313
PUSH SWITCH INSULATING BUSHING (1
USED ON EA Ret No 11 846-1064 KNOB)
0011 846-01064
PUSH KNOB (MODE MONO STEREO. LO
FILTER ON OFF, HI FILTER ON OFF,
MONITOR TAPE SOURCE, FM AFC ON
OFF, FM MUTE ON OFF, LOUDNESS
ON OFF 7 REQ.)
0012
843-00269
PUSH KNOB GUIDE (1 USED ON EACH
REF. ON. 11 846-1064 KNOB 7 REQ.)
0013 992-00213
DIAL LENS
0014
824-00549
TUNING SHAFT COVER
0015
826-00207
TUNING DIAL SCALE
0016
812-01211
DIAL SCALE RIGHT MTG BRACKET
0017
812-01210 DIAL SCALE LEFT MTG BRACKET
0018
876-00565
TUNING SHAFT
0019
883-01052
TUNING METER RETAINING STRIP
0020 812-01212
TUNING METER MTG BRACKET
0021
812-01213
LED LAMP MTG BRACKET
0022
812-01310
BRACKET MTS. REF. NO. 91 804-729
LED PRINTED CIRCUIT BOARD
0023 998-00054
DIAL LAMP REFLECTOR
0024 863-01042 LEVER SWITCH MASKING STRIP
0025
812-01311
POWER SWITCH MTG BRACKET
0026
812-01340
HEADPHONE JACK MTG BRACKET
0027 859-00306
DIAL POINTER
0028
859-00307 DIAL POINTER GUIDE
0029
812-01216
TONE CONTROL MTG BRACKET
0030 833-00215 CHASSIS MTG FRAME (2 REQ.)
0031
833-00214
FRAME (MTS. POWER AMPLIFIER PCB)
0032
926-00391
POWER AMPLIFIER HEAT SINK
0033 926-00354
POWER AMPLIFIER HEAT SINK
0034 894-00314
POWER TRANSISTOR INSULATING
BUSHING(4 REQ.)
0035
812-01207
POWER TRANSFORMER MTG BRACKET
0036 846-01097
FILTER CAP. MTG BRACKET (2 REQ *
0037
883-01022
5 LUG TERMINAL STRIP(2 REQ)
0038
886-00335
2 LUG CONNECTOR (FOR REF. NO.C517
& C518 822-2632 ELECTROLYTIC!
0039
880-01223 POWER TRANSISTOR CLIP SPRING
0040
811-00217
WIRE TIE STRAP (USED ON Ref No P501
811-218. AC CORD)
0041 817-00307
STRAIN RELIEF CLAMP (RETAINS REF.
NO. P501.811-218.AC CORD )
0042
824-00575
SPEAKER PROTECTION FUSE COVER
0043
862-00005
SPEAKER PROTECTION FUSE HOLDER
(MTS. REF. NO.F1401.F1451.936-65.)
| 0044 841-00226 AM ANTENNA HOLDER
REF NO
PART NO
DESCRIPTION
0046
812-01209
AM ANTENNA HOLDER BRACKET
0047 817-00311 DE-EMPHASIS SWITCH BRKT CLAMP
0048 883-01036
ANTENNA TERMINAL STRIP
0049 844-00223
JACK CLUSTER (PHONO CER. L R, AUX
IN L R & TAPE IN L R, TAPE OUT L R
2 REQ.)
0050
844-00221 JACK CLUSTER (PHONO MAG L R)
0051
886-00329 CHASSIS GROUND LUG
0052 926-00392 TUNING CAPACITOR SHIELD
0053 926-00356 TUNING CAPACITOR SHIELD
0054 926-00385 TUNING ASSEMBLY SHIELD
0055
880-01287
DIAL CORD TENSION SPRING
0056 861-00481 TUNING CAPACITOR PULLEY
0057 874-00053 VENTILATION SCREEN
0058
893-01182
CABINET RETAINING WASHER (4 REQ.)
0059 966-00109 CABINET FOOT(4 REQ.)
0060
841-00234 DIAL LAMP HOLDER(4 REQ.)
0061
912-02188
3MM SCREW (RETAINS REF. NO. 46,
812-1209, AM ANTENNA BRACKET)
0062 854-00319
3MM NUT (USED ON REF. NO. 61,
912-2188)
0063 897-00306
TOOTHED LOCKWASHER(PART OF REF.
NO. 64,886-337, GROUND STUD)
0064 886-00337 MAGNETIC PHONO GROUND STUD
0065 854-00345
6.35MM NUT(RETAINS REF. N0.64,
886-337.STUD.& REF.NO.66,893-1093)
0066
893-01093
8MM TOOTHED LOCKWASHER(RETAINS
REF. NO. 64,886-337, STUD)
0067 912-02149 3X6MM ROUND HEAD SCREW (20 REQ.)
0068 912-02150
3X8MM ROUND HEAD SCREWJ2 MT.
REF. NO. 23,998-54, REFLECTOR)
0069
0070
912-02151
912-02154
3X10MM ROUND HEAD SCREW( 4 REQ)
3X15MM RND HEAD SCREW (4 USED,
2 EA. REF. NO. 32, 926-391, HEAT
SINK, & Ref No 33, 926-354, HT SINK)
0071 912-02208
3X1OMM SCREWM8 REQ)
0072 912-02191 3X8MM SCREW(2 REQ.)
0073 912-02159
3X8MM SCREW(4 RETAIN REF. NO. 97
844-226, JACK CLUSTER)
0074 912-02181
3X6MM SCREW (31 REQ.)
0075 912-02241 3X12MM SCREW(12 REQ.)
0076 912-02203 3X8MM SCREW (12 REQ.)
0077
912-02379
3X6MM SCREW(2 RETAIN REF. NO. 99,
878-115, AC SOCKET)
0078 912-02192 2.6X1 OMM SCREW(2 USED)
0079 912-02185
2.6X4MM SCREWJMTS. REF. NO. 47,
817-311. DE EMPHASIS SW. CLAMP)
0080
912-02190
SPECIAL SCREW(RETAINS REF. NO. 50
844-222, JACK CLUSTER)
0081 912-02373
4X8MM SCREW(4 RETAIN REF. NO. 59
966-109, CABINET FOOT)
0082
912-02381 4X8MM SCREW(4 REQ.)
0083 912-02375 4X12MM SCREW
0084 893-01183 5.9MM SPLIT LOCKWASHER(4 REQ.)
0085
893-01153
7MM WASHER(4 REQ.)
0086 854-00348
3MM HEX NUT 8 REQ.)
0087 854-00346 2.6MM HEX NUT(2 REQ.)
0088 861-00447 12X2.4MM PULLEY(2 REQ.)
0089
861-00423
16MM PULLEY(2 REQ.)
0090
825-00064
PULLEY RETAINING PIN( 4 REQ.)
0096 804-00725
DE-EMPHASIS PCB ASSEM (PCB
SWITCH & CAPACITORS)
0097 844-00226
SPEAKER QUICK CONNECTORS
(AL&R-BL&R2 REQ.)
0098 885-00578
DE-EMPHASIS SLIDE SWITCH (PART OF
REF. NO. 96 804-725 PCB ASSEMBLY)
0099 878-00115 A.C. SOCKET
0101 857-01681 ZENITH NAME PLATE
TUNER PRINTED CIRCUIT BOARD COMPONENTS
CR001 903-00345
FM AFC DIODE
CR101 903-00418 AM IF DIODE
CR102
903-00418
AM 1ST DETECTOR DIODE
CR103
903-00418 AM 2ND DETECTOR DIODE
CR104 903-00384
AM AGC DIODE
CR105 903-00384 AM OVERLOAD DIODE
CR201
903-00419 FM OVERLOAD DIODE
CR202 903-00419 FM AGC DIODE
CR203 903-00419
FM TUNING METER DIODE
CR301
903-00418
FM MULTIPLEX SWITCHING DIODE
C001 822-02852 VARIABLE TUNING CAPACITOR
C002
822-02930 15pF ±5% 50V CERAMIC CAP
C003 822-02570 100pF ±5% 50V CERAMIC CAP
C004
822-02931 0.01uF +100-0% 50V CERAMIC CAP
C005
C006
822-02931
822-02379
0.01uF +100-0% 50V CERAMIC CAP
4700pF ±20% 50V CERAMIC CAP
C007 822-02368 10DF ±0.5DF 50V CERAMIC CAP
C008 822-02930 15pF ±5% 50V CERAMIC CAP
C009 822-02408 220uF 16V ELECTROLYTIC
C010 822-02497 0.022uF +80-20% 50V CERAMIC CAP
C011 822-02367 7pF ±0.5pF 50V CERAMIC CAP
C012
822-02570 100pF ±5% 50V CERAMIC CAP
C013 822-02561
0.75pF ±0.25pF 50V GIMMICK CAP
C014 822-02628 18pF ±5% 50V CERAMIC CAP
C015 822-02563 8pF ±0.5pF 50V CERAMIC CAP
C016 822-02379 4700pF ±20% 50V CERAMIC CAP
