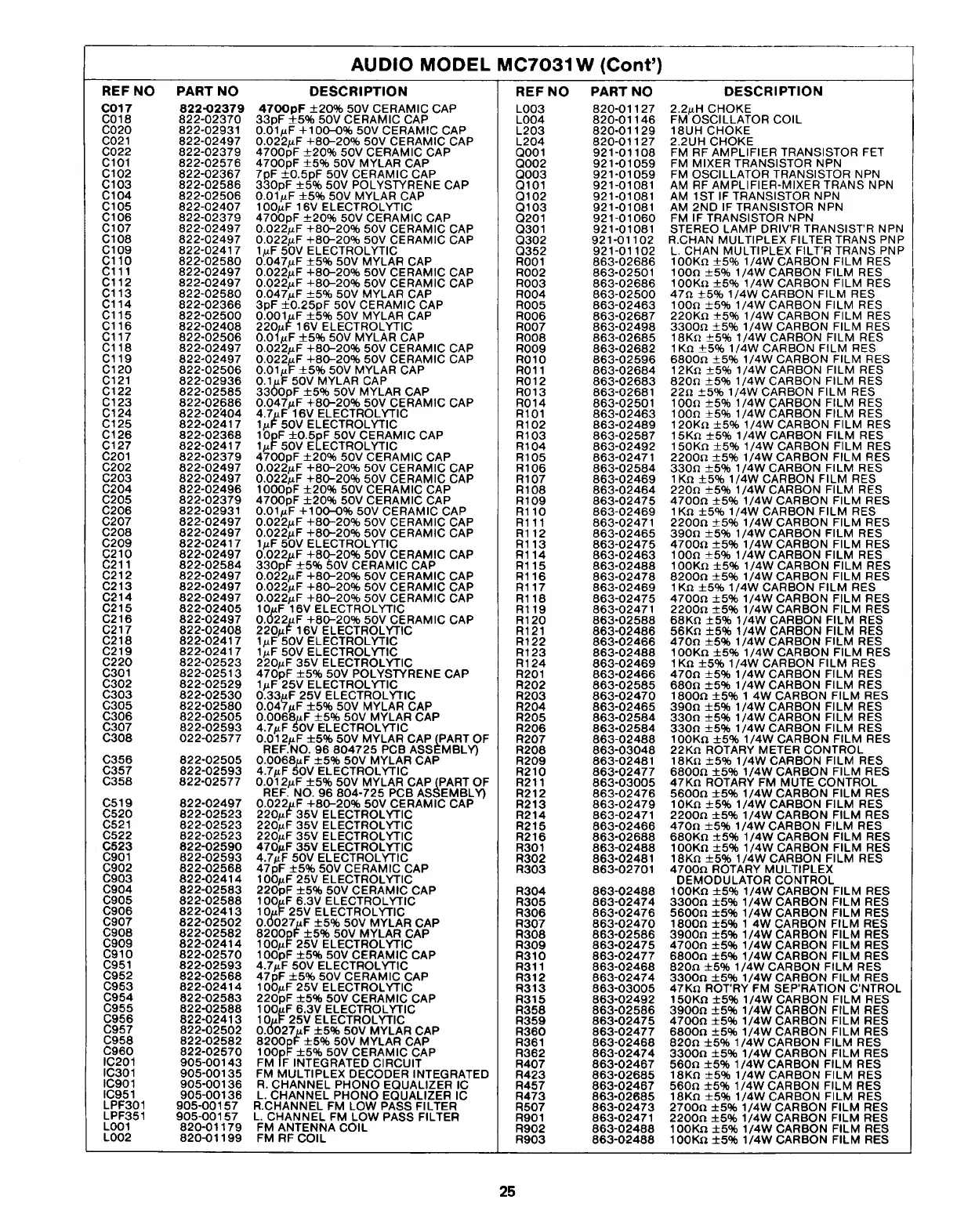

AUDIO MODEL MC7031W (Cont')
25
REFNO PART NO DESCRIPTION
C017
822-02379
4700PF ±20% 50V CERAMIC CAP
C018
822-02370
33pF ±5% 50V CERAMIC CAP
C020 822-02931 0.01uF +10^% 50V CERAMIC CAP
C021 822-02497 0.022juF +80-20% 50V CERAMIC CAP
C022
822-02379 4700pF ±20% 50V CERAMIC CAP
C101 822-02576
4700pF ±5% 50V MYLAR CAP
C102 822-02367
7pF ±0.5pF 50V CERAMIC CAP
C103 822-02586 330pF ±5% 50V POLYSTYRENE CAP
C104 822-02506 0.01 uF ±5% 50V MYLAR CAP
C105
822-02407 100uF 16V ELECTROLVTIC
C106
822-02379
4700pF ±20% 50V CERAMIC CAP
C107 822-02497 0.022uF +8^20% 50V CERAMIC CAP
C108 822-02497
0.022uF +8^20% 50V CERAMIC CAP
C109
822-02417
1uF 50V ELECTROLYTIC
C110
822-02580
0.047uF ±5% 50V MYLAR CAP
cm 822-02497 0.022uF +80-20% 50V CERAMIC CAP
C112
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C113
822-02580 0.047uF ±5% 50V MYLAR CAP
C114
822-02366
3pF ±0.25pF 50V CERAMIC CAP
C115
822-02500 0.001uF ±5% 50V MYLAR CAP
C116
822-02408
220uF 16V ELECTROLYTIC
C117
822-02506 0.01uF ±5% 50V MYLAR CAP
C118 822-02497 0.022uF +80-20% 50V CERAMIC CAP
C119
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C120
822-02506
0.01uF ±5% 50V MYLAR CAP
C121
822-02936 0.1uF 50V MYLAR CAP
C122 822-02585
3300pF ±5% 50V MYLAR CAP
C123
822-02686
0.047uF +80-20% 50V CERAMIC CAP
C124
822-02404
4.7uF 16V ELECTROLYTIC
C125 822-02417
1uF 50V ELECTROLYTIC
C126 822-02368 10pF ±0.5pF 50V CERAMIC CAP
C127 822-02417
1uF 50V ELECTROLYTIC
C201 822-02379 4700pF ±20% 50V CERAMIC CAP
C202
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C203 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C204
822-02496
1000pF ±20% 50V CERAMIC CAP
C205 822-02379
4700pF ±20% 50V CERAMIC CAP
C206
822-02931
0.01uF +100-0% 50V CERAMIC CAP
C207
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C208
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C209
822-02417
1uF 50V ELECTROLYTIC
C210 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C211 822-02584
330pF ±5% 50V CERAMIC CAP
C212 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C213
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C214
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C215 822-02405
10uF 16V ELECTROLYTIC
C216 822-02497 0.022uF +80-20% 50V CERAMIC CAP
C217
822-02408
220uF 16V ELECTROLYTIC
C218 822-02417
1uF 50V ELECTROLYTIC
C219
822-02417
1uF 50V ELECTROLYTIC
C220 822-02523 220uF 35V ELECTROLYTIC
C301
822-02513 470pF ±5% 50V POLYSTYRENE CAP
C302
822-02529
1uF 25V ELECTROLYTIC
C303
822-02530 0.33uF 25V ELECTROLYTIC
C305
822-02580 0.047uF ±5% 50V MYLAR CAP
C306
822-02505 0.0068uF ±5% 50V MYLAR CAP
C307
822-02593
4.7uF 50V ELECTROLYTIC
C308 022-02577 0.012uF ±5% 50V MYLAR CAP (PART OF
REF.NO. 96 804725 PCB ASSEMBLY)
C356 822-02505
0.0068uF ±5% 50V MYLAR CAP
C357
822-02593 4.7uF 50V ELECTROLYTIC
C358
822-02577
0.012uF ±5% 50V MYLAR CAP (PART OF
REF. NO. 96 804-725 PCB ASSEMBLY)
C519
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C520
822-02523 220uF 35V ELECTROLYTIC
C521
822-02523 220uF 35V ELECTROLYTIC
C522
822-02523
220uF 35V ELECTROLYTIC
C523
822-02590 470uF 35V ELECTROLYTIC
C901
822-02593 4.7uF 50V ELECTROLYTIC
C902
822-02568
47pF ±5% 50V CERAMIC CAP
C903 822-02414
100uF 25V ELECTROLYTIC
C904
822-02583
220pF ±5% 50V CERAMIC CAP
C905
822-02588
100uF 6.3V ELECTROLYTIC
C906
822-02413
10uF 25V ELECTROLYTIC
C907
822-02502
0.0027uF ±5% 50V MYLAR CAP
C908
822-02582 8200pF ±5% 50V MYLAR CAP
C909
822-02414
100uF 25V ELECTROLYTIC
C910
822-02570 100pF ±5% 50V CERAMIC CAP
C951
822-02593 4.7uF 50V ELECTROLYTIC
C952
822-02568
47pF ±5% 50V CERAMIC CAP
C953
822-02414
100uF 25V ELECTROLYTIC
C954
822-02583 220pF ±5% 50V CERAMIC CAP
C955
822-02588
100uF 6.3V ELECTROLYTIC
C956
822-02413 10uF 25V ELECTROLYTIC
C957
822-02502
0.0027uF ±5% 50V MYLAR CAP
C958
822-02582 8200pF ±5% 50V MYLAR CAP
C960
822-02570
100pF ±5% 50V CERAMIC CAP
IC201
905-00143 FM F INTEGRATED CIRCUIT
IC301
905-00135 FM MULTIPLEX DECODER INTEGRATED
IC901
905-00136 R. CHANNEL PHONO EQUALIZER IC
IC951
905-00136 L. CHANNEL PHONO EQUALIZER IC
LPF301
905-00157
R.CHANNEL FM LOW PASS FILTER
LPF351
905-00157
L. CHANNEL FM LOW PASS FILTER
L001 820-01179
FM ANTENNA COIL
L002
820-01199
FM RF COIL
REFNO
PART NO
DESCRIPTION
L003
820-01127 2.2uH CHOKE
L004 820-01146 FM OSCILLATOR COIL
L203 820-01129
18UH CHOKE
L204 820-01127 2.2UH CHOKE
Q001 921-01108
FM RF AMPLIFIER TRANSISTOR FET
Q002
921-01059
FM MIXER TRANSISTOR NPN
Q003 921-01059 FM OSCILLATOR TRANSISTOR NPN
Q101
921-01081 AM RF AMPLIFIER-MIXER TRANS NPN
Q102 921-01081 AM 1ST IF TRANSISTOR NPN
Q103 921-01081
AM 2ND IF TRANSISTOR NPN
Q201 921-01060
FM IF TRANSISTOR NPN
Q301 921-01081 STEREO LAMP DRIV'R TRANSIST'R NPN
Q302 921-01102 R.CHAN MULTIPLEX FILTER TRANS PNP
Q352 921-01102 L. CHAN MULTIPLEX FILT'R TRANS PNP
R001 863-02686 100KΩ ±5% 1/4W CARBON FILM RES
R002 863-02501 100Ω ±5% 1/4W CARBON FILM RES
R003
863-02686 100KΩ ±5% 1/4W CARBON FILM RES
R004
863-02500
47Ω ±5% 1/4W CARBON FILM RES
R005 863-02463
100Ω ±5% 1/4W CARBON FILM RES
R006 863-02687 220KΩ ±5% 1/4W CARBON FILM RES
R007 863-02498
3300Ω ±5% 1/4W CARBON FILM RES
R008 863-02685
18KΩ ±5% 1/4W CARBON FILM RES
R009
863-02682
1KΩ ±5% 1/4W CARBON FILM RES
R010
863-02596
6800Ω ±5% 1/4W CARBON FILM RES
R011
863-02684 12KΩ ±5% 1/4W CARBON FILM RES
R012
863-02683
820Ω ±5% 1/4W CARBON FILM RES
R013 863-02681 22Ω ±5% 1/4W CARBON FILM RES
R014
863-02501
100Ω ±5% 1/4W CARBON FILM RES
R101 863-02463
100Ω ±5% 1/4W CARBON FILM RES
R102
863-02489
120KΩ ±5% 1/4W CARBON FILM RES
R103 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R104 863-02492 150KΩ ±5% 1/4W CARBON FILM RES
R105 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R106 863-02584 330Ω ±5% 1/4W CARBON FILM RES
R107 863-02469 1 KΩ ±5% 1/4W CARBON FILM RES
R108 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R109 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R110 863-02469 1 KΩ ±5% 1 /4W CARBON FILM RES
R111 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R112 863-02465 390Ω ±5% 1/4W CARBON FILM RES
R113 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R114
863-02463
100Ω ±5% 1/4W CARBON FILM RES
R115 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R116 863-02478 8200Ω ±5% 1/4W CARBON FILM RES
R117
863-02469
1 KΩ ±5% 1/4W CARBON FILM RES
R118 863-02475
4700Ω ±5% 1/4W CARBON FILM RES
R119 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R120 863-02588
68KΩ ±5% 1/4W CARBON FILM RES
R121 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R122 863-02466 470nΩ ±5% 1/4W CARBON FILM RES
R123 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R124 863-02469 1KnΩ ±5% 1/4W CARBON FILM RES
R201 863-02466 470Ω ±5% 1/4W CARBON FILM RES
R202 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R203 863-02470 1800Ω ±5% 1 4W CARBON FILM RES
R204 863-02465 390Ω ±5% 1/4W CARBON FILM RES
R205 863-02584 330Ω ±5% 1/4W CARBON FILM RES
R206
863-02584 330Ω ±5% 1/4W CARBON FILM RES
R207 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R208 863-03048 22KΩ ROTARY METER CONTROL
R209 863-02481 18KΩ ±5% 1/4W CARBON FILM RES
R210
863-02477 6800Ω ±5% 1/4W CARBON FILM RES
R211 863-03005 47KΩ ROTARY FM MUTE CONTROL
R212 863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R213
863-02479 10KΩ ±5% 1/4W CARBON FILM RES
R214 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R215 863-02466
470Ω ±5% 1/4W CARBON FILM RES
R216 863-02688
680KΩ ±5% 1/4W CARBON FILM RES
R301 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R302 863-02481 18KΩ ±5% 1/4W CARBON FILM RES
R303 863-02701
4700Ω ROTARY MULTIPLEX
DEMODULATOR CONTROL
R304 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R305 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R306 863-02476 5600Ω ±5% 1/4W CARBON FILM RES
R307
863-02470
1800Ω ±5% 1 4W CARBON FILM RES
R308 863-02586 3900Ω ±5% 1/4W CARBON FILM RES
R309 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R310 863-02477 6800Ω ±5% 1/4W CARBON FILM RES
R311 863-02468 820Ω ±5% 1/4W CARBON FILM RES
R312 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R313 863-03005 47KΩ ROT'RY FM SEP'RATION C'NTROL
R315 863-02492 150KΩ ±5% 1/4W CARBON FILM RES
R358 863-02586 3900Ω ±5% 1/4W CARBON FILM RES
R359
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R360 863-02477 6800Ω ±5% 1/4W CARBON FILM RES
R361 863-02468 820Ω ±5% 1/4W CARBON FILM RES
R362 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R407 863-02467 560Ω ±5% 1/4W CARBON FILM RES
R423 863-02685 18KΩ ±5% 1/4W CARBON FILM RES
R457
863-02467 560Ω ±5% 1/4W CARBON FILM RES
R473
863-02685
18KΩ ±5% 1/4W CARBON FILM RES
R507
863-02473 2700Ω ±5% 1/4W CARBON FILM RES
R901 863-02471 2200nΩ±5% 1/4W CARBON FILM RES
R902 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R903 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
