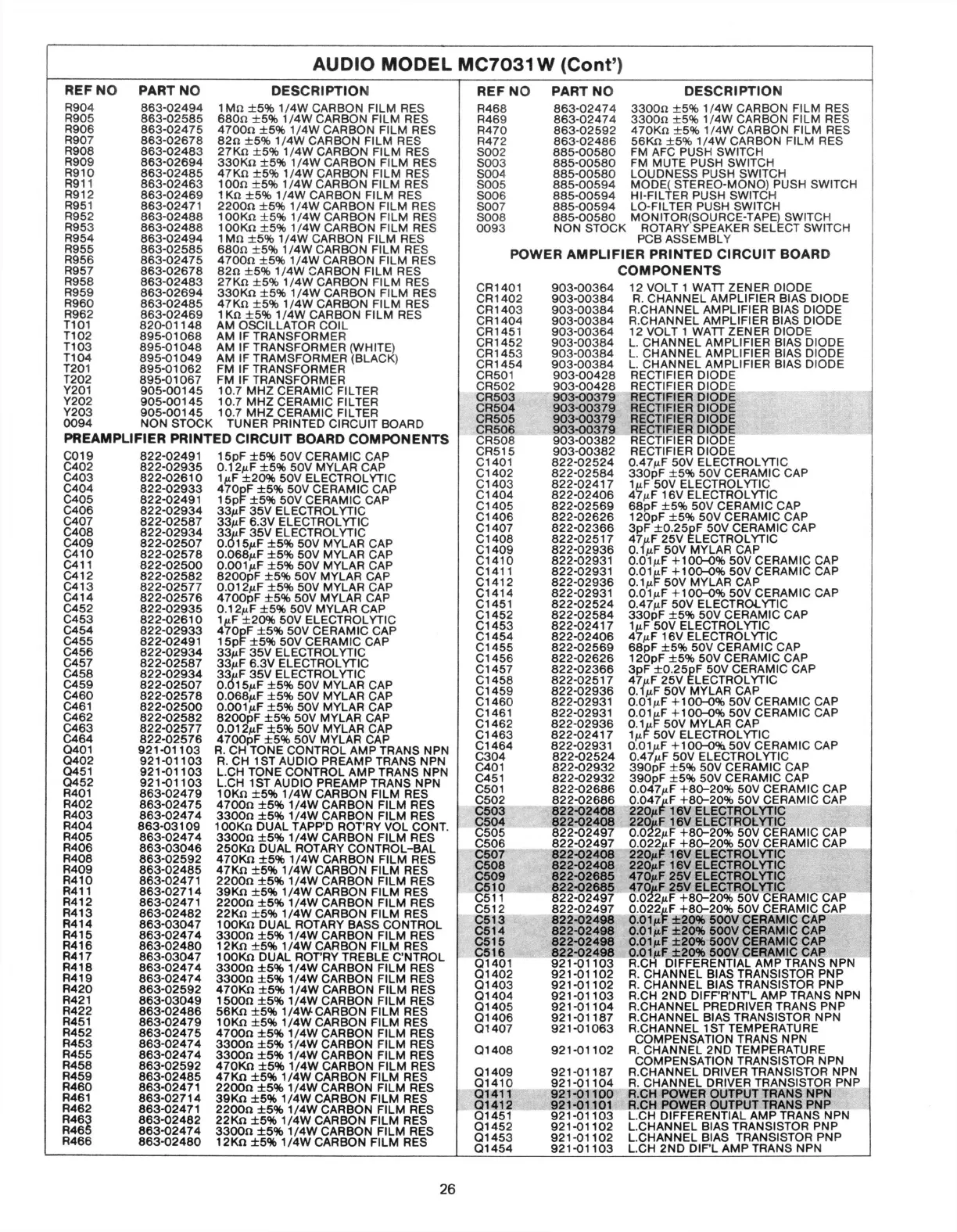

AUDIO MODEL MC7031W (Cont')
26
REF NO
PART NO DESCRIPTION
R904 863-02494
1 MΩ
±5%
1/4W CARBON FILM RES
R905
863-02585 680Ω
±5%
1/4W CARBON FILM RES
R906
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R907 863-02678
82Ω
±5%
1/4W CARBON FILM RES
R908 863-02483
27KΩ
±5%
1/4W CARBON FILM RES
R909 863-02694 330KΩ
±5%
1/4W CARBON FILM RES
R910 863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R911
863-02463 100Ω
±5%
1/4W CARBON FILM RES
R912 863-02469 1 KΩ
±5%
1/4W CARBON FILM RES
R951 863-02471
2200Ω
±5%
1/4W CARBON FILM RES
R952 863-02488 100KΩ
±5%
1/4W CARBON FILM RES
R953
863-02488
100KΩ
±5%
1/4W CARBON FILM RES
R954 863-02494
1 MΩ
±5%
1/4W CARBON FILM RES
R955 863-02585 680Ω
±5%
1/4W CARBON FILM RES
R956 863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R957 863-02678 82Ω
±5%
1/4W CARBON FILM RES
R958 863-02483
27KΩ
±5%
1/4W CARBON FILM RES
R959 863-02694
330KΩ
±5%
1/4W CARBON FILM RES
R960 863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R962 863-02469 1 KΩ
±5%
1/4W CARBON FILM RES
T101
820-01148
AM OSCILLATOR COIL
T102
895-01068
AM IF TRANSFORMER
T103
895-01048 AM IF TRANSFORMER (WHITE)
T104
895-01049
AM IF TRAMSFORMER (BLACK)
T201 895-01062
FM IF TRANSFORMER
T202 895-01067
FM IF TRANSFORMER
Y201 905-00145
10.7 MHZ CERAMIC FILTER
Y202
905-00145
10.7 MHZ CERAMIC FILTER
Y203 905-00145
10.7 MHZ CERAMIC FILTER
0094 NON STOCK
TUNER PRINTED CIRCUIT BOARD
POWER AMPLIFIER PRINTED CIRCUIT BOARD
COMPONENTS
CR1401
903-00364 12 VOLT 1 WATT ZENER DIODE
CR1402 903-00384 R. CHANNEL AMPLIFIER BIAS DIODE
CR1403 903-00384
R.CHANNEL
AMPLIFIER BIAS DIODE
CR1404 903-00384
R.CHANNEL
AMPLIFIER BIAS DIODE
CR1451 903-00364 12 VOLT 1 WATT ZEN ER DIODE
CR1452 903-00384 L. CHANNEL AMPLIFIER BIAS DIODE
CR1453 903-00384 L. CHANNEL AMPLIFIER BIAS DIODE
CR1454 903-00384 L. CHANNEL AMPLIFIER BIAS DIODE
CR501 903-00428 RECTIFIER DIODE
CR502 903-00428 RECTIFIER DIODE
CR503 903-00379 RECTIFIER DIODE
CR504 903-00379 RECTIFIER DIODE
CR505 903-00379 RECTIFIER DIODE
CR506 903-00379 RECTIFIER DIODE
CR508 903-00382 RECTIFIER DIODE
CR515 903-00382 RECTIFIER DIODE
C1401
822-02524
0.47uF
50V ELECTROLYTIC
C1402 822-02584 330pF ±5% 50V CERAMIC CAP
C1403
822-02417 1uF 50V ELECTROLYTIC
C1404
822-02406
47uF 16V ELECTROLYTIC
C1405 822-02569 68pF ±5% 50V CERAMIC CAP
C1406 822-02626 120pF ±5% 50V CERAMIC CAP
C1407 822-02366 3pF ±0.25pF 50V CERAMIC CAP
C1408 822-02517 47uF 25V ELECTROLYTIC
C1409 822-02936 0.1 uF 50V MYLAR CAP
C1410 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1411
822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1412
822-02936
0.1 uF 50V MYLAR CAP
C1414
822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1451 822-02524
0.47uF
50V ELECTROLYTIC
C1452 822-02584 330pF ±5% 50V CERAMIC CAP
C1453 822-02417 1uF 50V ELECTROLYTIC
C1454 822-02406 47uF 16V ELECTROLYTIC
C1455 822-02569 68pF ±5% 50V CERAMIC CAP
C1456 822-02626 120pF ±5% 50V CERAMIC CAP
C1457 822-02366 3pF ±0.25pF 50V CERAMIC CAP
C1458 822-02517 47uF 25V ELECTROLYTIC
C1459 822-02936 0.1 uF 50V MYLAR CAP
C1460 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1461 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1462 822-02936 0.1 uF 50V MYLAR CAP
C1463
822-02417 1uF 50V ELECTROLYTIC
C1464 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C304 822-02524
0.47uF
50V ELECTROLYTIC
C401 822-02932 390pF ±5% 50V CERAMIC CAP
C451 822-02932 390pF ±5% 50V CERAMIC CAP
C501 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C502 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C503 822-02408
220uF 16V ELECTROLYTIC
C504
822-02408
220uF 16V ELECTROLYTIC
C505 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C506
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C507 822-02408 220uF 16V ELECTROLYTIC
C508 822-02408 220uF 16V ELECTROLYTIC
C509 822-02685 470uF 25V ELECTROLYTIC
C510
822-02685
470uF 25V ELECTROLYTIC
C511
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C512 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C513 822-02498 0.01F ±20% 500V CERAMIC CAP
C514 822-02498
0.01uF
±20% 500V CERAMIC CAP
C515 822-02498
0.01uF
±20% 500V CERAMIC CAP
C516 822-02498
0.01uF
±20% 500V CERAMIC CAP
Q1401 921-01103
R.CH DIFFERENTIAL AMP TRANS NPN
Q1402 921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1403 921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1404
921-01103
R.CH 2ND DIFF'R'NTL AMP TRANS NPN
Q1405 921-01104
R.CHANNEL
PREDRIVER TRANS PNP
Q1406 921-01187
R.CHANNEL
BIAS TRANSISTOR NPN
Q1407 921-01063
R.CHANNEL
1
ST TEMPERATURE
COMPENSATION TRANS NPN
Q1408 921-01102
R. CHANNEL 2ND TEMPERATURE
COMPENSATION TRANSISTOR NPN
Q1409 921-01187
R.CHANNEL
DRIVER TRANSISTOR NPN
Q1410
921-01104 R. CHANNEL DRIVER TRANSISTOR PNP
Q1411 921-01100 R.CH POWER OUTPUT TRANS NPN
Q1412
921-01101
R.CH POWER OUTPUT TRANS PNP
Q1451 921-01103 L.CH DIFFERENTIAL AMP TRANS NPN
Q1452 921-01102
L.CHANNEL
BIAS TRANSISTOR PNP
Q1453 921-01102
L.CHANNEL
BIAS TRANSISTOR PNP
Q1454 921-01103 L.CH 2ND DIF'L AMP TRANS NPN
PREAMPLIFIER PRINTED CIRCUIT BOARD COMPONENTS
C019
822-02491 15pF ±5% 50V CERAMIC CAP
C402
822-02935
0.12uF
±5% 50V MYLAR CAP
C403
822-02610 1uF ±20% 50V ELECTROLYTIC
C404
822-02933
470pF ±5% 50V CERAMIC CAP
C405 822-02491
15pF ±5% 50V CERAMIC CAP
C406 822-02934
33uF 35V ELECTROLYTIC
C407
822-02587
33uF 6.3V ELECTROLYTIC
C408
822-02934
33uF 35V ELECTROLYTIC
C409 822-02507
0.015uF
±5% 50V MYLAR CAP
C410
822-02578
0.068uF
±5% 50V MYLAR CAP
C411
822-02500 0.001 uF ±5% 50V MYLAR CAP
C412 822-02582
8200pF ±5% 50V MYLAR CAP
C413 822-02577
0.012uF
±5% 50V MYLAR CAP
C414
822-02576 4700pF ±5% 50V MYLAR CAP
C452 822-02935
0.12uF
±5% 50V MYLAR CAP
C453
822-02610
1uF ±20% 50V ELECTROLYTIC
C454 822-02933 470PF ±5% 50V CERAMIC CAP
C455
822-02491 15pF ±5% 50V CERAMIC CAP
C456 822-02934
33uF 35V ELECTROLYTIC
C457
822-02587
33uF 6.3V ELECTROLYTIC
C458 822-02934
33uF 35V ELECTROLYTIC
C459
822-02507
0.015uF
±5% 50V MYLAR CAP
C460
822-02578
0.068uF
±5% 50V MYLAR CAP
C461
822-02500 0.001 uF ±5% 50V MYLAR CAP
C462
822-02582
8200pF ±5% 50V MYLAR CAP
C463
822-02577
0.012uF
±5% 50V MYLAR CAP
C464
822-02576 4700pF ±5% 50V MYLAR CAP
Q401
921-01103 R. CH TONE CONTROL AMP TRANS NPN
Q402
921-01103
R. CH 1ST AUDIO PREAMP TRANS NPN
Q451
921-01103 L.CH TONE CONTROL AMP TRANS NPN
Q452
921-01103 L.CH 1ST AUDIO PREAMP TRANS NPN
R401 863-02479 10KΩ
±5%
1/4W CARBON FILM RES
R402
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R403
863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R404
863-03109
100KΩ DUAL TAPP'D ROT'RY VOL CONT.
R405 863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R406
863-03046
250KΩ DUAL ROTARY CONTROL-BAL
R408
863-02592
470KΩ
±5%
1/4W CARBON FILM RES
R409
863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R410 863-02471
2200Ω
±5%
1/4W CARBON FILM RES
R411
863-02714
39KΩ
±5%
1/4W CARBON FILM RES
R412 863-02471 2200Ω
±5%
1/4W CARBON FILM RES
R413
863-02482
22KΩ
±5%
1/4W CARBON FILM RES
R414
863-03047
100KΩ DUAL ROTARY BASS CONTROL
R415
863-02474
3300nΩ±5% 1/4W CARBON FILM RES
R416
863-02480 12KΩ
±5%
1/4W CARBON FILM RES
R417
863-03047
100KΩ DUAL ROT'RY TREBLE
C'NTROL
R418 863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R419 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R420 863-02592
470KΩ
±5%
1/4W CARBON FILM RES
R421
863-03049 1500Ω
±5%
1/4W CARBON FILM RES
R422
863-02486
56KΩ
±5%
1/4W- CARBON FILM RES
R451
863-02479 10KΩ
±5%
1/4W CARBON FILM RES
R452
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R453
863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R455 863-02474 3300Ω
±5%
1/4W CARBON FILM RES
R458
863-02592
470KΩ
±5%
1/4W CARBON FILM RES
R459
863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R460 863-02471
2200Ω
±5%
1/4W CARBON FILM RES
R461
863-02714
39KΩ
±5%
1/4W CARBON FILM RES
R462
863-02471 2200Ω
±5%
1/4W CARBON FILM RES
R463
863-02482
22KΩ
±5%
1/4W CARBON FILM RES
R466
863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R466
863-02480 12KΩ
±5%
1/4W CARBON FILM RES
REF NO
PART NO
DESCRIPTION
R468
863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R469 863-02474 3300Ω
±5%
1/4W CARBON FILM RES
R470 863-02592 470KΩ
±5%
1/4W CARBON FILM RES
R472 863-02486
56KΩ
±5%
1/4W CARBON FILM RES
S002 885-00580 FM AFC PUSH SWITCH
S003 885-00580
FM MUTE PUSH SWITCH
S004
885-00580
LOUDNESS PUSH SWITCH
S005
885-00594
MODE( STEREO-MONO) PUSH SWITCH
S006 885-00594 HI-FILTER PUSH SWITCH
S007 885-00594 LO-FILTER PUSH SWITCH
S008 885-00580 MONITOR(SOURCE-TAPE) SWITCH
0093 NON STOCK
ROTARY SPEAKER SELECT SWITCH
PCB ASSEMBLY
