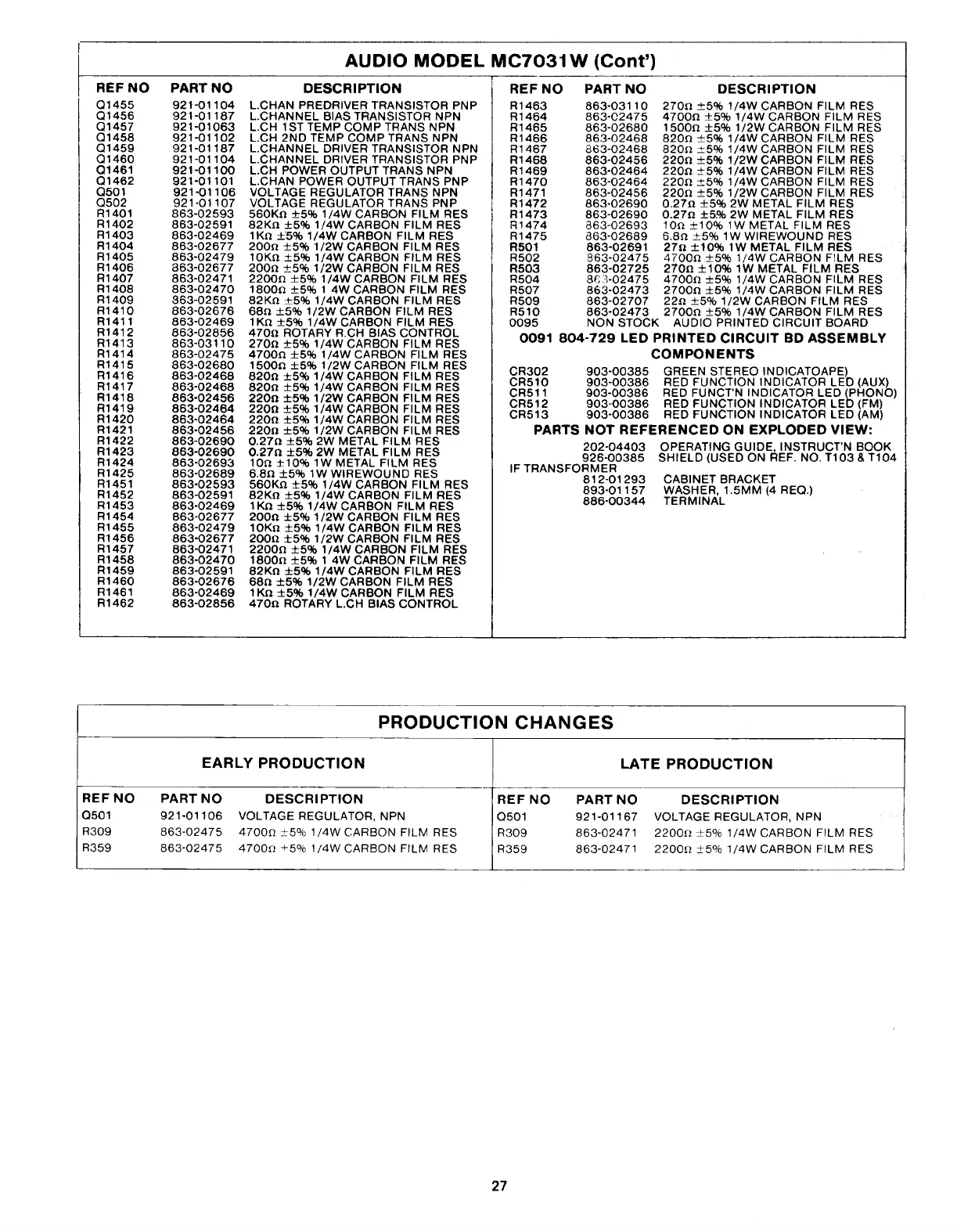

AUDIO MODEL MC7031W (Cont')
REF NO PART NO
DESCRIPTION
Q1455 921-01104
L.CHAN PREDRIVER TRANSISTOR PNP
Q1456 921-01187
L.CHANNEL BIAS TRANSISTOR NPN
Q1457
921-01063
L.CH 1 ST TEMP COMP TRANS NPN
Q1458 921-01102
L.CH 2ND TEMP COMP TRANS NPN
Q1459 921-01187
L.CHANNEL DRIVER TRANSISTOR NPN
Q1460 921-01104
L.CHANNEL DRIVER TRANSISTOR PNP
Q1461
921-01100 L.CH POWER OUTPUT TRANS NPN
Q1462 921-01101
L.CHAN POWER OUTPUT TRANS PNP
Q501
921-01106 VOLTAGE REGULATOR TRANS NPN
Q502 921-01107
VOLTAGE REGULATOR TRANS PNP
R1401
863-02593
560KΩ ±5% 1/4W CARBON FILM RES
R1402 863-02591
82KΩ ±5% 1/4W CARBON FILM RES
R1403
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R1404 863-02677
200Ω ±5% 1/2W CARBON FILM RES
R1405 863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R1406 863-02677
200Ω ±5% 1/2W CARBON FILM RES
R1407 863-02471
2200Ω ±5% 1/4W CARBON FILM RES
R1408
863-02470
1800Ω ±5% 1 4W CARBON FILM RES
R1409 363-02591
82KΩ ±5% 1/4W CARBON FILM RES
R1410
863-02676 68Ω ±5% 1/2W CARBON FILM RES
R1411 863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R1412 863-02856
470Ω ROTARY R.CH BIAS CONTROL
R1413
863-03110 270Ω ±5% 1/4W CARBON FILM RES
R1414
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R1415
863-02680
1500Ω ±5% 1/2W CARBON FILM RES
R1416 863-02468
820Ω ±5% 1/4W CARBON FILM RES
R1417
863-02468 820Ω ±5% 1/4W CARBON FILM RES
R1418
863-02456
220Ω ±5% 1/2W CARBON FILM RES
R1419 863-02464
220Ω ±5% 1/4W CARBON FILM RES
R1420 863-02464
220Ω ±5% 1/4W CARBON FILM RES
R1421
863-02456 220Ω ±5% 1/2W CARBON FILM RES
R1422
863-02690 0.27Ω ±5% 2W METAL FILM RES
R1423
863-02690 0.27Ω ±5% 2W METAL FILM RES
R1424 863-02693 10Ω ±10% 1W METAL FILM RES
R1425 863-02689
6.8Ω ±5% 1W WIREWOUND RES
R1451 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R1452 863-02591
82KΩ ±5% 1/4W CARBON FILM RES
R1453
863-02469 1KΩ ±5% 1/4W CARBON FILM RES
R1454 863-02677
200Ω ±5% 1/2W CARBON FILM RES
R1455
863-02479 10KΩ ±5% 1/4W CARBON FILM RES
R1456 863-02677 200Ω ±5% 1/2W CARBON FILM RES
R1457 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R1458
863-02470 1800Ω ±5% 1 4W CARBON FILM RES
R1459 863-02591 82KΩ ±5% 1/4W CARBON FILM RES
R1460 863-02676 68Ω ±5% 1/2W CARBON FILM RES
R1461
863-02469 1KΩ ±5% 1/4W CARBON FILM RES
R1462 863-02856
470Ω ROTARY L.CH BIAS CONTROL
REF NO
PART NO DESCRIPTION
R1463
863-03110 270Ω ±5% 1/4W CARBOM FILM RES
R1464 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R1465 863-02680 1500Ω ±5% 1/2W CARBON FILM RES
R1466 863-02468 820Ω ±5% 1/4W CARBON FILM RES
R1467 863-02468 820Ω ±5% 1/4W CARBON FILM RES
R1468 863-02456 220Ω ±5% 1/2W CARBON FILM RES
R1469 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1470 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1471 863-02456 220Ω ±5% 1/2W CARBON FILM RES
R1472 863-02690 0.27Ω ±5% 2W METAL FILM RES
R1473 863-02690 0.27Ω ±5% 2W METAL FILM RES
R1474 863-02693 10Ω ±10% 1W METAL FILM RES
R1475 863-02689 6.8Ω ±5% 1W WIREWOUND RES
R501 863-02691 27Ω ±10% 1W METAL FILM RES
R502 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R503 863-02725 270Ω ±10% 1W METAL FILM RES
R504 863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R507
863-02473
2700Ω ±5% 1/4W CARBON FILM RES
R509 863-02707 22Ω ±5% 1/2W CARBON FILM RES
R510 863-02473 2700Ω ±5% 1/4W CARBON FILM RES
0095 NON STOCK AUDIO PRINTED CIRCUIT BOARD
0091 804-729 LED PRINTED CIRCUIT BD ASSEMBLY
COMPONENTS
CR302
903-00385
GREEN STEREO INDICATOAPE)
CR510 903-00386 RED FUNCTION INDICATOR LED (AUX)
CR511 903-00386 RED FUNCT'N INDICATOR LED (PHONO)
CR512 903-00386 RED FUNCTION INDICATOR LED (FM)
CR513 903-00386 RED FUNCTION INDICATOR LED (AM)
PARTS NOT REFERENCED ON EXPLODED VIEW:
202-04403 OPERATING GUIDE, INSTRUCT'N BOOK
926-00385
IF TRANSFORMER
SHIELD (USED ON REF. NO. T103 & T104
812-01293 CABINET BRACKET
893-01157 WASHER, 1.5MM (4 REQ.)
886-00344 TERMINAL
PRODUCTION CHANGES
EARLY PRODUCTION
LATE PRODUCTION
REF NO
PART NO DESCRIPTION
REF NO
PART NO DESCRIPTION
Q501 921-01106 VOLTAGE REGULATOR, NPN
Q501
921-01167 VOLTAGE REGULATOR, NPN
R309
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R309 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R359
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R359 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
