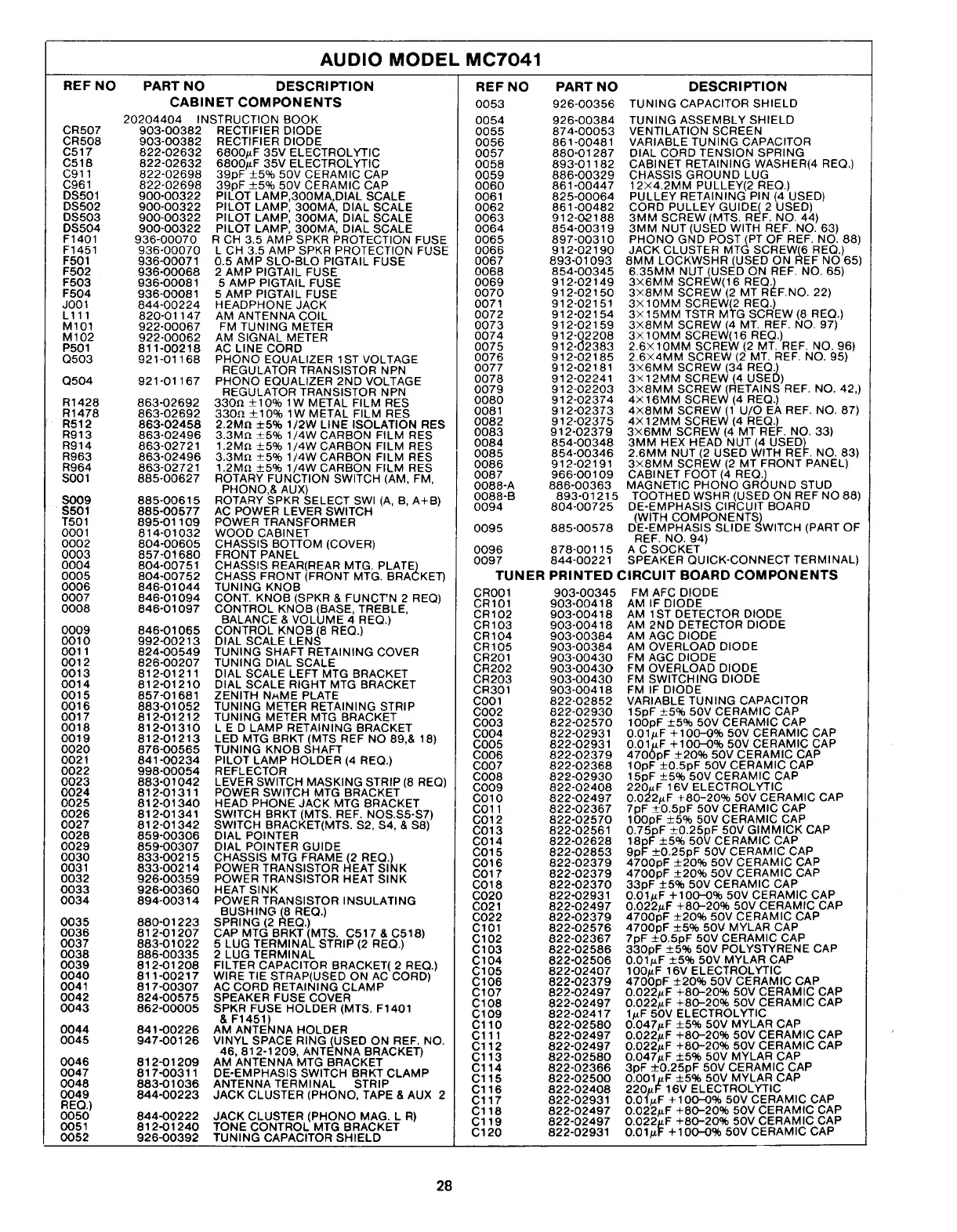

AUDIO MODEL MC7041
REF NO PART NO DESCRIPTION
CABINET COMPONENTS
20204404 IN STRUCTION BOOK
CR507 903-00382
RECTIFIER DIODE
CR508 903-00382 RECTIFIER DIODE
C517 822-02632
6800uF 35V ELECTROLYTIC
C518 822-02632
6800uF 35V ELECTROLYTIC
C911 822-02698 39pF ±5% 50V CERAMIC CAP
C961
822-02698 39pF ±5% 50V CERAMIC CAP
DS501 900-00322
PILOT LAMP.300MA.DIAL SCALE
DS502
900-00322 PILOT LAMP, 300MA, DIAL SCALE
DS503 900-00322 PILOT LAMP, 300MA, DIAL SCALE
DS504
900-00322 PILOT LAMP, 300MA, DIAL SCALE
F1401 936-00070 R CH 3.5 AMP SPKR PROTECTION FUSE
F1451 936-00070 L CH 3.5 AMP SPKR PROTECTION FUSE
F501 936-00071
0.5 AMP SLO-BLO PIGTAIL FUSE
F502 936-00068
2 AMP PIGTAIL FUSE
F503 936-00081
5 AMP PIGTAIL FUSE
F504
936-00081 5 AMP PIGTAIL FUSE
J001 844-00224
HEADPHONE JACK
L111 820-01147 AM ANTENNA COIL
M101 922-00067
FM TUNING METER
M102 922-00062 AM SIGNAL METER
P501 811-00218 AC LINE CORD
Q503 921-01168
PHONO EQUALIZER 1ST VOLTAGE
REGULATOR TRANSISTOR NPN
Q504
921-01167
PHONO EQUALIZER 2ND VOLTAGE
REGULATOR TRANSISTOR NPN
R1428 863-02692
330Ω
±10%
1W METAL FILM RES
R1478 863-02692
330Ω
±10%
1W METAL FILM RES
R512
863-02458
2.2MΩ
±5%
1/2W LINE ISOLATION RES
R913 863-02496
3.3MΩ
±5%
1/4W CARBON FILM RES
R914 863-02721
1.2MΩ
±5%
1
/4W CARBON FILM RES
R963
863-02496
3.3MΩ
±5%
1/4W CARBON FILM RES
R964 863-02721 1.2MΩ
±5%
1/4W CARBON FILM RES
S001 885-00627 ROTARY FUNCTION SWITCH (AM, FM,
PHONO.& AUX)
S009
885-00615 ROTARY SPKR SELECT SWI (A, B, A+B)
S501 885-00577 AC POWER LEVER SWITCH
T501 895-01109 POWER TRANSFORMER
0001 814-01032 WOOD CABINET
0002 804-00605 CHASSIS BOTTOM (COVER)
0003 857-01680 FRONT PANEL
0004 804-00751 CHASSIS REAR(REAR MTG. PLATE)
0005 804-00752 CHASS FRONT (FRONT MTG. BRACKET)
0006 846-01044 TUNING KNOB
0007 846-01094 CONT. KNOB (SPKR & FUNCTN 2 REQ)
0008 846-01097 CONTROL KNOB (BASE, TREBLE,
BALANCE & VOLUME 4 REQ.)
0009 846-01065 CONTROL KNOB (8 REQ.)
0010 992-00213 DIAL SCALE LENS
0011 824-00549
TUNING SHAFT RETAINING COVER
0012 826-00207 TUNING DIAL SCALE
0013 812-01211 DIAL SCALE LEFT MTG BRACKET
0014 812-01210 DIAL SCALE RIGHT MTG BRACKET
0015 857-01681 ZENITH NAME PLATE
0016 883-01052
TUNING METER RETAINING STRIP
0017 812-01212 TUNING METER MTG BRACKET
0018 812-01310 LED LAMP RETAINING BRACKET
0019
812-01213 LED MTG BRKT (MTS REF NO 89,& 18)
0020 876-00565 TUNING KNOB SHAFT
0021 841-00234 PILOT LAMP HOLDER (4 REQ.)
0022 998-00054
REFLECTOR
0023 883-01042 LEVER SWITCH MASKING STRIP (8 REQ)
0024 812-01311 POWER SWITCH MTG BRACKET
0025 812-01340 HEAD PHONE JACK MTG BRACKET
0026 812-01341
SWITCH BRKT (MTS. REF. NOS.S5-S7)
0027 812-01342 SWITCH BRACKET(MTS. S2, S4, & S8)
0028 859-00306 DIAL POINTER
0029 859-00307
DIAL POINTER GUIDE
0030 833-00215 CHASSIS MTG FRAME (2 REQ.)
0031 833-00214 POWER TRANSISTOR HEAT SINK
0032 926-00359
POWER TRANSISTOR HEAT SINK
0033
926-00360
HEAT SINK
0034 894-00314 POWER TRANSISTOR INSULATING
BUSHING (8 REQ.)
0035 880-01223 SPRING (2 REQ.)
0036 812-01207
CAP MTG BRKT (MTS. C517&C518)
0037 883-01022 5 LUG TERMINAL STRIP (2 REQ.)
0038 886-00335
2 LUG TERMINAL
0039
812-01208 FILTER CAPACITOR BRACKET( 2 REQ.)
0040 811-00217 WIRE TIE STRAP(USED ON AC CORD)
0041 817-00307
AC CORD RETAINING CLAMP
0042 824-00575 SPEAKER FUSE COVER
0043 862-00005 SPKR FUSE HOLDER (MTS. F1401
& F1451)
0044 841-00226 AM ANTENNA HOLDER
0045 947-00126
VINYL SPACE RING (USED ON REF. NO.
46,
812-1209, ANTENNA BRACKET)
0046 812-01209 AM ANTENNA MTG BRACKET
0047 817-00311
DE-EMPHASIS SWITCH BRKT CLAMP
0048 883-01036
ANTENNA TERMINAL STRIP
0049
844-00223
JACK CLUSTER (PHONO. TAPE & AUX 2
REQ.)
0050 844-00222 JACK CLUSTER (PHONO MAG. L R)
0051
812-01240
TONE CONTROL MTG BRACKET
0052 926-00392
TUNING CAPACITOR SHIELD
REF NO
PART NO
DESCRIPTION
0053 926-00356
TUNING CAPACITOR SHIELD
0054
926-00384 TUNING ASSEMBLY SHIELD
0055 874-00053 VENTILATION SCREEN
0056 861-00481 VARIABLE TUNING CAPACITOR
0057 880-01287 DIAL CORD TENSION SPRING
0058 893-01182 CABINET RETAINING WASHER(4 REQ.)
0059 886-00329 CHASSIS GROUND LUG
0060 861-00447 12X4.2MM PULLEY(2 REQ.)
0061 825-00064 PULLEY RETAINING PIN (4 USED)
0062 861-00482 CORD PULLEY GUIDEJ 2 USED)
0063 912-02188 3MM SCREW (MTS. REF. NO. 44)
0064 854-00319 3MM NUT (USED WITH REF. NO. 63)
0065 897-00310 PHONO GND POST (PT OF REF. NO. 88)
0066 912-02190 JACK CLUSTER MTG SCREW(6 REQ.)
0067 893-01093 8MM LOCKWSHR (USED ON REF NO 65)
0068 854-00345
6.35MM
NUT (USED ON REF. NO. 65)
0069 912-02149 3X6MM SCREW(16 REQ.)
0070 912-02150 3X8MM SCREW (2 MT REF.NO. 22)
0071 912-02151 3X1OMM SCREW(2 REQ.)
0072 912-02154 3X15MM TSTR MTG SCREW (8 REQ.)
0073 912-02159 3X8MM SCREW (4 MT. REF. NO. 97)
0074 912-02208 3X10MM SCREW(16 REQ.)
0075
912-0*2383
2.6X10MM
SCREW (2 MT. REF. NO. 96)
0076 912-02185
2.6X4MM
SCREW (2 MT. REF. NO. 95)
0077 912-02181 3X6MM SCREW (34 REQ.)
0078 912-02241 3X12MM SCREW (4 USED)
0079 912-02203 3X8MM SCREW (RETAINS REF. NO. 42,)
0080 912-02374 4X16MM SCREW (4 REQ.)
0081 912-02373 4X8MM SCREW (1 U/O EA REF. NO. 87)
0082 912-02375 4X12MM SCREW (4 REQ.)
0083 912-02379 3X6MM SCREW (4 MT REF. NO. 33)
0084 854-00348 3MM HEX HEAD NUT (4 USED)
0085 854-00346
2.6MM
NUT (2 USED WITH REF. NO. 83)
0086 912-02191 3X8MM SCREW (2 MT FRONT PANEL)
0087 966-00109 CABINET FOOT (4 REQ.)
0088-A 886-00363 MAGNETIC PHONO GROUND STUD
0088-B 893-01215 TOOTHED WSHR (USED ON REF NO 88)
0094 804-00725
DE-EMPHASIS CIRCUIT BOARD
(WITH COMPONENTS)
0095 885-00578
DE-EMPHASIS SLIDE SWITCH (PART OF
REF.
NO. 94)
0096 878-00115 A C SOCKET
0097 844-00221 SPEAKER QUICK-CONNECT TERMINAL)
TUNER PRINTED CIRCUIT BOARD COMPONENTS
CR001
903-00345
FM AFC DIODE
CR101 903-00418 AM IF DIODE
CR102 903-00418 AM 1ST DETECTOR DIODE
CR103 903-00418 AM 2ND DETECTOR DIODE
CR104
903-00384 AM AGC DIODE
CR105 903-00384 AM OVERLOAD DIODE
CR201 903-00430
FM AGC DIODE
CR202 903-00430 FM OVERLOAD DIODE
CR203 903-00430 FM SWITCHING DIODE
CR301 903-00418 FM IF DIODE
C001 822-02852 VARIABLE TUNING CAPACITOR
C002 822-02930 15pF ±5% 50V CERAMIC CAP
C003 822-02570 100pF ±5% 50V CERAMIC CAP
C004 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C005 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C006 822-02379 4700pF ±20% 50V CERAMIC CAP
C007 822-02368 10pF ±0.5pF 50V CERAMIC CAP
C008 822-02930
15pF ±5% 50V CERAMIC CAP
C009 822-02408 220uF 16V ELECTROLYTIC
C010
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C011 822-02367 7pF ±0.5pF 50V CERAMIC CAP
C012 822-02570 100pF ±5% 50V CERAMIC CAP
C013 822-02561
0.75pF
±0.25pF 50V GIMMICK CAP
C014
822-02628 18pF ±5% 50V CERAMIC CAP
C015
822-02853
9pF ±0.25pF 50V CERAMIC CAP
C016
822-02379 4700pF ±20% 50V CERAMIC CAP
C017 822-02379 4700pF ±20% 50V CERAMIC CAP
C018
822-02370 33pF ±5% 50V CERAMIC CAP
C020
822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C021 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C022 822-02379 4700pF ±20% 50V CERAMIC CAP
C101 822-02576 4700pF ±5% 50V MYLAR CAP
C102 822-02367 7pF ±0.5pF 50V CERAMIC CAP
C103
822-02586 330pF ±5% 50V POLYSTYRENE CAP
C104 822-02506
0.01uF
±5% 50V MYLAR CAP
C105 822-02407 100uF 16V ELECTROLYTIC
C106 822-02379 4700pF ±20% 50V CERAMIC CAP
C107 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C108 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C109 822-02417 1uF 50V ELECTROLYTIC
C110 822-02580
0.047uF
±5% 50V MYLAR CAP
cm 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C112 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C113
822-02580
0.047uF
±5% 50V MYLAR CAP
C114 822-02366 3pF ±0.25pF 50V CERAMIC CAP
C115 822-02500 0.001 uF ±5% 50V MYLAR CAP
C116 822-02408 220uF 16V ELECTROLYTIC
C117 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C118 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C119
822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C120 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
28
