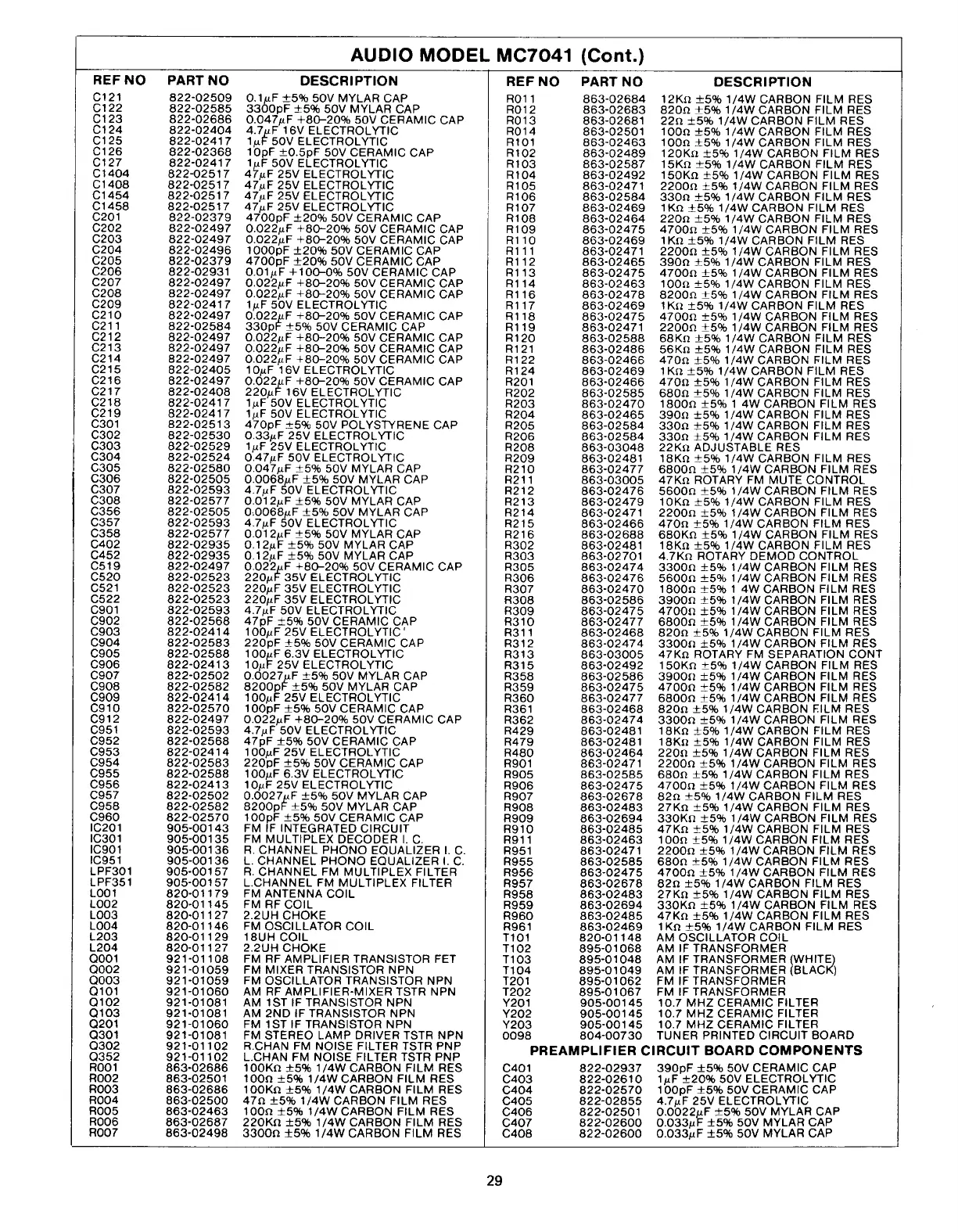

AUDIO MODEL MC7041 (Cont.)
REF NO PART NO
DESCRIPTION
C121
822-02509 0.1uF ±5% 50V MYLAR CAP
C122 822-02585
3300pF ±5% 50V MYLAR CAP
C123
822-02686
0.047uF +80-20% 50V CERAMIC CAP
C124 822-02404
4.7uF 16V ELECTROLYTIC
C125 822-02417
1uF 50V ELECTROLYTIC
C126 822-02368
10pF ±0.5dF 50V CERAMIC CAP
C127
822-02417
1uF 50V ELECTROLYTIC
C1404
822-02517
47uF 25V ELECTROLYTIC
C1408 822-02517
47uF 25V ELECTROLYTIC
C1454 822-02517
47uF 25V ELECTROLYTIC
C1458 822-02517 47uF 25V ELECTROLYTIC
C201 822-02379
4700pF ±20% 50V CERAMIC CAP
C202 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C203
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C204 822-02496
1000pF ±20% 50V CERAMIC CAP
C205
822-02379
4700pF ±20% 50V CERAMIC CAP
C206
822-02931
0.01uF +100-0% 50V CERAMIC CAP
C207 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C208 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C209 822-02417
1uF 50V ELECTROLYTIC
C210 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C211 822-02584
330pF ±5% 50V CERAMIC CAP
C212
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C213 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C214 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C215
822-02405
10uF 16V ELECTROLYTIC
C216
822-02497
0.022uF +80-20% 50V CERAMIC CAP
C217 822-02408
220uF 16V ELECTROLYTIC
C218
822-02417
1uF 50V ELECTROLYTIC
C219 822-02417
1uF 50V ELECTROLYTIC
C301
822-02513 470pF ±5% 50V POLYSTYRENE CAP
C302 822-02530
0.33uF 25V ELECTROLYTIC
C303 822-02529
1uF 25V ELECTROLYTIC
C304 822-02524
0.47uF 50V ELECTROLYTIC
C305 822-02580 0.047uF ±5% 50V MYLAR CAP
C306 822-02505
0.0068uF ±5% 50V MYLAR CAP
C307
822-02593
4.7uF 50V ELECTROLYTIC
C308
822-02577
0.012uF ±5% 50V MYLAR CAP
C356
822-02505
0,0068uF ±5% 50V MYLAR CAP
C357
822-02593 4.7uF 50V ELECTROLYTIC
C358 822-02577
0.012uF ±5% 50V MYLAR CAP
C402 822-02935
0.12uF ±5% 50V MYLAR CAP
C452 822-02935
0.12uF ±5% 50V MYLAR CAP
C519 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C520 822-02523
220uF 35V ELECTROLYTIC
C521 822-02523 220uF 35V ELECTROLYTIC
C522 822-02523
220uF 35V ELECTROLYTIC
C901 822-02593 4.7uF 50V ELECTROLYTIC
C902
822-02568
47pF +5% 50V CERAMIC CAP
C903 822-02414
100uF 25V ELECTROLYTIC
C904 822-02583 220pF ±5% 50V CERAMIC CAP
C905 822-02588
100uF 6.3V ELECTROLYTIC
C906
822-02413
10uF 25V ELECTROLYTIC
C907 822-02502 0.0027uF +5% 50V MYLAR CAP
C908 822-02582 8200pF ±5% 50V MYLAR CAP
C909 822-02414
100uF 25V ELECTROLYTIC
C910 822-02570 100pF ±5% 50V CERAMIC CAP
C912 822-02497
0.022uF +80-20% 50V CERAMIC CAP
C951
822-02593 4.7uF 50V ELECTROLYTIC
C952
822-02568
47pF ±5% 50V CERAMIC CAP
C953 822-02414
100uF 25V ELECTROLYTIC
C954
822-02583
220pF ±5% 50V CERAMIC CAP
C955 822-02588
100uF 6.3V ELECTROLYTIC
C956
822-02413 10uF 25V ELECTROLYTIC
C957 822-02502
0.0027uF ±5% 50V MYLAR CAP
C958
822-02582
8200pF ±5% 50V MYLAR CAP
C960 822-02570
100pF ±5% 50V CERAMIC CAP
IC201 905-00143
FM IF INTEGRATED CIRCUIT
IC301
905-00135
FM MULTIPLEX DECODER I. C.
IC901
905-00136
R. CHANNEL PHONO EQUALIZER I. C.
IC951
905-00136
L. CHANNEL PHONO EQUALIZER I. C.
LPF301 905-00157
R. CHANNEL FM MULTIPLEX FILTER
LPF351
905-00157 L.CHANNEL FM MULTIPLEX FILTER
L001 820-01179 FM ANTENNA COIL
L002 820-01145 FM RF COIL
L003 820-01127 2.2UH CHOKE
L004 820-01146
FM OSCILLATOR COIL
L203 820-01129 18UH COIL
L204 820-01127 2.2UH CHOKE
Q001
921-01108 FM RF AMPLIFIER TRANSISTOR FET
Q002
921-01059
FM MIXER TRANSISTOR NPN
Q003
921-01059 FM OSCILLATOR TRANSISTOR NPN
Q101
921-01060 AM RF AMPLIFIER-MIXER TSTR NPN
Q102 921-01081 AM 1ST IF TRANSISTOR NPN
Q103 921-01081
AM 2ND IF TRANSISTOR NPN
Q201 921-01060 FM 1 ST IF TRANSISTOR NPN
Q301 921-01081 FM STEREO LAMP DRIVER TSTR NPN
Q302 921-01102 R.CHAN FM NOISE FILTER TSTR PNP
Q352 921-01102 L.CHAN FM NOISE FILTER TSTR PNP
R001 863-02686
100KΩ ±5% 1/4W CARBON FILM RES
R002 863-02501 100Ω ±5% 1/4W CARBON FILM RES
R003 863-02686 100KΩ ±5% 1/4W CARBON FILM RES
R004 863-02500
47Ω ±5% 1/4W CARBON FILM RES
R005 863-02463 100Ω ±5% 1/4W CARBON FILM RES
R006 863-02687 220KΩ ±5% 1/4W CARBON FILM RES
R007 863-02498 3300Ω ±5% 1/4W CARBON FILM RES
REF NO
PART NO
DESCRIPTION
R011
863-02684
12Kn ±5% 1/4W CARBON FILM RES
R012
820n ±5% 1/4W CARBON FILM RES
R013 863-02681 22n ±5% 1/4W CARBON FILM RES
R014
863-02501 100n ±5% 1/4W CARBON FILM RES
R101 863-02463 100n ±5% 1/4W CARBON FILM RES
R102
863-02489 120Kn ±5% 1/4W CARBON FILM RES
R103
863-02587 15Kn ±5% 1/4W CARBON FILM RES
R104
863-02492 150Kn ±5% 1/4W CARBON FILM RES
R105 863-02471 2200n ±5% 1/4W CARBON FILM RES
R106 330n ±5% 1/4W CARBON FILM RES
R107
863-02469
1 Kn ±5% 1/4W CARBON FILM RES
R108
863-02464 220n ±5% 1/4W CARBON FILM RES
R109
863-02475
4700n ±5% 1/4W CARBON FILM RES
R110 863-02469 1 Kn ±5% 1/4W CARBON FILM RES
R111
863-02471
2200n ±5% 1/4W CARBON FILM RES
R112
390n ±5% 1/4W CARBON FILM RES
R113 863-02475
4700n ±5% 1/4W CARBON FILM RES
R1 14
863-02463 100n ±5% 1/4W CARBON FILM RES
R116 863-02478
8200n ±5% 1/4W CARBON FILM RES
R117
863-02469
1 Kn ±5% 1/4W CARBON FILM RES
R118
863-02475
4700n ±5% 1/4W CARBON FILM RES
R119 863-02471
2200n ±5% 1/4W CARBON FILM RES
R120 863-02588
68Kn ±5% 1/4W CARBON FILM RES
R121 863-02486 56Kn ±5% 1/4W CARBON FILM RES
R122
863-02466 470n ±5% 1/4W CARBON FILM RES
R124
863-02469
1 Kn ±5% 1/4W CARBON FILM RES
R201
863-02466
470n ±5% 1/4W CARBON FILM RES
R202
•:I*I.M.1:M
680n ±5% 1/4W CARBON FILM RES
R203
863-02470
1800n ±5% 1 4W CARBON FILM RES
R204
863-02465 390n ±5% 1/4W CARBON FILM RES
R205
|:I*EiM.1:Ea
330n ±5% 1/4W CARBON FILM RES
R206 330n ±5% 1/4W CARBON FILM RES
R208 863-03048
22Kn ADJUSTABLE RES
R209 863-02481
18Kn ±5% 1/4W CARBON FILM RES
R210 863-02477 6800n ±5% 1/4W CARBON FILM RES
R211
863-03005
47Kn ROTARY FM MUTE CONTROL
R212
863-02476
5600n ±5% 1/4W CARBON FILM RES
R213 863-02479 10Kn ±5% 1/4W CARBON FILM RES
R214
863-02471
2200n ±5% 1/4W CARBON FILM RES
R215
863-02466
470n ±5% 1/4W CARBON FILM RES
R216 863-02688 680Kn ±5% 1/4W CARBON FILM RES
R302
863-02481
18Kn ±5% 1/4W CARBON FILM RES
R303
863-02701
4.7Kn ROTARY DEMOD CONTROL
R305 863-02474 3300n ±5% 1/4W CARBON FILM RES
R306
863-02476
5600n ±5% 1/4W CARBON FILM RES
R307
863-02470
1800n ±5% 1 4W CARBON FILM RES
R308 863-02586
3900n ±5% 1/4W CARBON FILM RES
R309 863-02475 4700n ±5% 1/4W CARBON FILM RES
R310 863-02477
6800n ±5% 1/4W CARBON FILM RES
R311
863-02468 820n ±5% 1/4W CARBON FILM RES
R312
863-02474
3300n ±5% 1/4W CARBON FILM RES
R313 863-03005
47Kn ROTARY FM SEPARATION CONT
R315
863-02492 150Kn ±5% 1/4W CARBON FILM RES
R358 863-02586 3900n ±5% 1/4W CARBON FILM RES
R359 863-02475
4700n ±5% 1/4W CARBON FILM RES
R360
863-02477 6800n ±5% 1/4W CARBON FILM RES
R361 863-02468
820n ±5% 1/4W CARBON FILM RES
R362 863-02474
3300n ±5% 1/4W CARBON FILM RES
R429
863-02481
18Kn ±5% 1/4W CARBON FILM RES
R479 863-02481 18Kn ±5% 1/4W CARBON FILM RES
R480
863-02464 220n ±5% 1/4W CARBON FILM RES
R901 863-02471 2200n ±5% 1/4W CARBON FILM RES
R905 863-02585
680n ±5% 1/4W CARBON FILM RES
R906
4700n ±5% 1/4W CARBON FILM RES
R907
863-02678
82n ±5% 1/4W CARBON FILM RES
R908
863-02483
27Kn ±5% 1/4W CARBON FILM RES
R909
863-02694
330Kn ±5% 1/4W CARBON FILM RES
R910
47Kn ±5% 1/4W CARBON FILM RES
R911
863-02463 100n ±5% 1/4W CARBON FILM RES
R951 863-02471
2200n ±5% 1/4W CARBON FILM RES
R955 863-02585 680n ±5% 1/4W CARBON FILM RES
R956 863-02475
4700n ±5% 1/4W CARBON FILM RES
R957
863-02678
82n ±5% 1/4W CARBON FILM RES
R958 863-02483 27Kn ±5% 1/4W CARBON FILM RES
R959
863-02694
330Kn ±5% 1/4W CARBON FILM RES
R960
863-02485 47Kn ±5% 1/4W CARBON FILM RES
R961
863-02469 1 Kn ±5% 1/4W CARBON FILM RES
T101
820-01148 AM OSCILLATOR COIL
T102 895-01068 AM IF TRANSFORMER
T103
895-01048
AM IF TRANSFORMER (WHITE)
T104 AM IF TRANSFORMER (BLACK)
T201
895-01062
FM IF TRANSFORMER
T202 895-01067
FM IF TRANSFORMER
Y201
10.7 MHZ CERAMIC FILTER
Y202 10.7 MHZ CERAMIC FILTER
Y203 905-00145 10.7 MHZ CERAMIC FILTER
0098 804-00730
TUNER PRINTED CIRCUIT BOARD
PREAMPLIFIER CIRCUIT BOARD COMPONENTS
C401 822-02937
390pF ±5% 50V CERAMIC CAP
C403
1uF ±20% 50V ELECTROLYTIC
C404
822-02570
100pF ±5% 50V CERAMIC CAP
C405 4.7uF 25V ELECTROLYTIC
C406
822-02501 0.0022uF ±5% 50V MYLAR CAP
C407 822-02600 0.033uF ±5% 50V MYLAR CAP
C408 822-02600
0.033uF ±5% 50V MYLAR CAP
