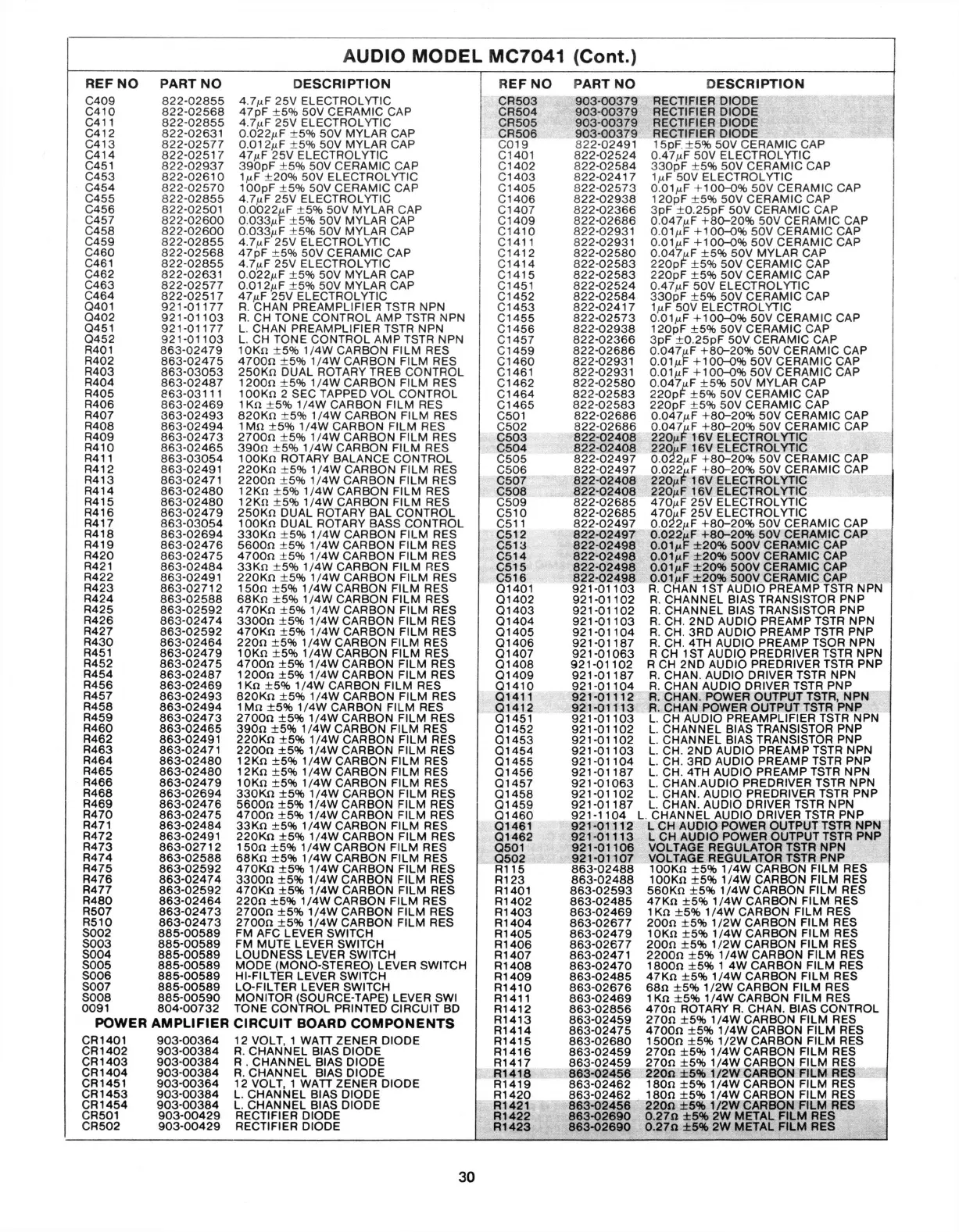

AUDIO MODEL MC7041 (Cont.)
REF NO PART NO DESCRIPTION
C409 822-02855
4.7uF
25V ELECTROLYTIC
C410 822-02568 47pF ±5% 50V CERAMIC CAP
C411 822-02855
4.7uF
25V ELECTROLYTIC
C412 822-02631
0.022uF
±5% 50V MYLAR CAP
C413 822-02577
0.012uF
±5% 50V MYLAR CAP
C414
822-02517
47uF 25V ELECTROLYTIC
C451 822-02937 390pF ±5% 50V CERAMIC CAP
C453
822-02610 1uF ±20% 50V ELECTROLYTIC
C454
822-02570 100pF ±5% 50V CERAMIC CAP
C455 822-02855
4.7uF
25V ELECTROLYTIC
C456
822-02501
0.0022uF
±5% 50V MYLAR CAP
C457
822-02600
0.033uF
±5% 50V MYLAR CAP
C458
822-02600
0.033uF
±5% 50V MYLAR CAP
C459 822-02855
4.7uF
25V ELECTROLYTIC
C460 822-02568 47pF ±5% 50V CERAMIC CAP
C461 822-02855
4.7uF
25V ELECTROLYTIC
C462
822-02631
0.022uF
±5% 50V MYLAR CAP
C463
822-02577
0.012uF
±5% 50V MYLAR CAP
C464
822-02517
47uF 25V ELECTROLYTIC
Q401
921-01177 R. CHAN PREAMPLIFIER TSTR NPN
Q402
921-01103 R. CH TONE CONTROL AMP TSTR NPN
Q451
921-01177 L. CHAN PREAMPLIFIER TSTR NPN
Q452
921-01103 L. CH TONE CONTROL AMP TSTR NPN
R401
863-02479
10KΩ
±5%
1/4W CARBON FILM RES
R402
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R403
863-03053 250KΩ DUAL ROTARY TREB CONTROL
R404
863-02487
1200Ω
±5%
1/4W CARBON FILM RES
R405
863-03111 100KΩ 2 SEC TAPPED VOL CONTROL
R406 863-02469 1KΩ
±5%
1/4W CARBON FILM RES
R407 363-02493 820KΩ
±5%
1/4W CARBON FILM RES
R408 863-02494 1MΩ
±5%
1/4W CARBON FILM RES
R409
863-02473 2700Ω
±5%
1/4W CARBON FILM RES
R410 863-02465 390Ω
±5%
1/4W CARBON FILM RES
R411 863-03054 100KΩ ROTARY BALANCE CONTROL
R412
863-02491 220KΩ
±5%
1/4W CARBON FILM RES
R413 863-02471 2200Ω
±5%
1/4W CARBON FILM RES
R414 863-02480 12KΩ
±5%
1/4W CARBON FILM RES
R415
863-02480 12KΩ
±5%
1/4W CARBON FILM RES
R416 863-02479 250KΩ DUAL ROTARY BAL CONTROL
R417 863-03054
100KΩ DUAL ROTARY BASS CONTROL
R418 863-02694
330KΩ
±5%
1/4W CARBON FILM RES
R419 863-02476 5600Ω
±5%
1/4W CARBON FILM RES
R420
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R421 863-02484
33KΩ
±5%
1/4W CARBON FILM RES
R422
863-02491 220KΩ
±5%
1/4W CARBON FILM RES
R423
863-02712 150Ω
±5%
1/4W CARBON FILM RES
R424
863-02588
68KΩ
±5%
1/4W CARBON FILM RES
R425 863-02592
470KΩ
±5%
1/4W CARBON FILM RES
R426 863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R427
863-02592
470KΩ
±5%
1/4W CARBON FILM RES
R430 863-02464
220Ω
±5%
1/4W CARBON FILM RES
R451 863-02479
10KΩ
±5%
1/4W CARBON FILM RES
R452 863-02475 4700Ω
±5%
1/4W CARBON FILM RES
R454 863-02487
1200Ω
±5%
1/4W CARBON FILM RES
R456
863-02469
1KΩ
±5%
1/4W CARBON FILM RES
R457
863-02493
820KΩ
±5%
1/4W CARBON FILM RES
R458 863-02494
1MΩ
±5%
1/4W CARBON FILM RES
R459
863-02473 2700Ω
±5%
1/4W CARBON FILM RES
R460
863-02465
390Ω
±5%
1/4W CARBON FILM RES
R462
863-02491
220KΩ
±5%
1/4W CARBON FILM RES
R463 863-02471 2200Ω
±5%
1/4W CARBON FILM RES
R464
863-02480 12KΩ
±5%
1
/4W CARBON FILM RES
R465
863-02480
12KΩ
±5%
1/4W CARBON FILM RES
R466
863-02479 10KΩ
±5%
1/4W CARBON FILM RES
R468 863-02694 330KΩ
±5%
1/4W CARBON FILM RES
R469 863-02476 5600Ω
±5%
1/4W CARBON FILM RES
R470 863-02475 4700Ω
±5%
1/4W CARBON FILM RES
R471 863-02484
33KΩ
±5%
1/4W CARBON FILM RES
R472 863-02491 220KΩ
±5%
1/4W CARBON FILM RES
R473 863-02712 150Ω
±5%
1/4W CARBON FILM RES
R474 863-02588 68KΩ
±5%
1/4W CARBON FILM RES
R475 863-02592 470KΩ
±5%
1/4W CARBON FILM RES
R476 863-02474
3300Ω
±5%
1/4W CARBON FILM RES
R477
863-02592 470KΩ
±5%
1/4W CARBON FILM RES
R480
863-02464
220Ω
±5%
1/4W CARBON FILM RES
R507 863-02473 2700Ω
±5%
1/4W CARBON FILM RES
R510
863-02473 2700Ω
±5%
1/4W CARBON FILM RES
S002
885-00589 FM AFC LEVER SWITCH
S003
885-00589 FM MUTE LEVER SWITCH
S004 885-00589 LOUDNESS LEVER SWITCH
S005 885-00589
MODE (MONO-STEREO) LEVER SWITCH
S006 885-00589 HI-FILTER LEVER SWITCH
S007
885-00589 LO-FILTER LEVER SWITCH
S008
885-00590 MONITOR (SOURCE-TAPE) LEVER SWI
0091 804-00732 TONE CONTROL PRINTED CIRCUIT BD
POWER AMPLIFIER CIRCUIT BOARD COMPONENTS
CR1401 903-00364
12 VOLT. 1 WATT ZENER DIODE
CR1402 903-00384
R. CHANNEL BIAS DIODE
CR1403
903-00384
R . CHANNEL BIAS DIODE
CR1404 903-00384
R.CHANNEL
BIAS DIODE
CR1451 903-00364 12 VOLT. 1 WATT ZENER DIODE
CR1453
903-00384
L. CHANNEL BIAS DIODE
CR1454 903-00384
L. CHANNEL BIAS DIODE
CR501 903-00429 RECTIFIER DIODE
CR502 903-00429
RECTIFIER DIODE
REF NO
PART NO DESCRIPTION
CR503 903-00379 RECTIFIER DIODE
CR504
903-00379 RECTIFIER DIODE
CR505
903-00379 RECTIFIER DIODE
CR506 903-00379 RECTIFIER DIODE
C019 822-02491
15pF.
±5% 50V CERAMIC CAP
C1401 822-02524
0.47uF
50V ELECTROLYTIC
C1402 822-02584 330pF ±5% 50V CERAMIC CAP
C1403 822-02417 1uF 50V ELECTROLYTIC
C1405 822-02573
0.01uF
+100-0% 50V CERAMIC CAP
C1406 822-02938
1
20pF ±5% 50V CERAMIC CAP
C1407 822-02366 3pF ±0.25pF 50V CERAMIC CAP
C1409 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C1410 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1411
822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1412 822-02580
0.047uF
±5% 50V MYLAR CAP
C1414 822-02583 220pF ±5% 50V CERAMIC CAP
C1415 822-02583 220pF ±5% 50V CERAMIC CAP
C1451 822-02524
0.47uF
50V ELECTROLYTIC
C1452 822-02584 330pF ±5% 50V CERAMIC CAP
C1453
822-02417
1uF 50V ELECTROLYTIC
C1455 822-02573
0.01uF
+100-0% 50V CERAMIC CAP
C1456
822-02938 120pF ±5% 50V CERAMIC CAP
C1457
822-02366 3pF ±0.25pF 50V CERAMIC CAP
C1459 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C1460 822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1461
822-02931
0.01uF
+100-0% 50V CERAMIC CAP
C1462 822-02580
0.047uF
±5% 50V MYLAR CAP
C1464 822-02583 220pF +5% 50V CERAMIC CAP
C1465 822-02583 220pF +5% 50V CERAMIC CAP
C501 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C502 822-02686
0.047uF
+80-20% 50V CERAMIC CAP
C503 822-02408 220uF 16V ELECTROLYTIC
C504 822-02408 220uF 16V ELECTROLYTIC
C505 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C506 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C507 822-02408 220uF 16V ELECTROLYTIC
C508 822-02408
220uF 16V ELECTROLYTIC
C509 822-02685 470uF 25V ELECTROLYTIC
C510 822-02685
470uF 25V ELECTROLYTIC
C511 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C512 822-02497
0.022uF
+80-20% 50V CERAMIC CAP
C513 822-02498
0.01uF
±20% 500V CERAMIC CAP
C514 822-02498
0.01uF
±20% 500V CERAMIC CAP
C515 822-02498
0.01uF
±20% 500V CERAMIC CAP
C516 822-02498
0.01uF
±20% 500V CERAMIC CAP
Q1401 921-01103
R. CHAN 1ST AUDIO PREAMP TSTR NPN
Q1402
921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1403 921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1404
921-01103
R. CH. 2ND AUDIO PREAMP TSTR NPN
Q1405 921-01104 R. CH. 3RD AUDIO PREAMP TSTR PNP
Q1406 921-01187 R. CH. 4TH AUDIO PREAMP TSOR NPN
Q1407
921-01063
R CH 1ST AUDIO PREDRIVER TSTR NPN
Q1408 921-01102 R CH 2ND AUDIO PREDRIVER TSTR PNP
Q1409 921-01187
R. CHAN. AUDIO DRIVER TSTR NPN
Q1410 921-01104 R. CHAN AUDIO DRIVER TSTR PNP
Q1411 921-01112 R. CHAN. POWER OUTPUT TSTR, NPN
Q1412
921-01113
R. CHAN POWER OUTPUT TSTR PNP
Q1451 921-01103
L. CH AUDIO PREAMPLIFIER TSTR NPN
Q1452 921-01102 L. CHANNEL BIAS TRANSISTOR PNP
Q1453 921-01102 L. CHANNEL BIAS TRANSISTOR PNP
Q1454 921-01103 L. CH. 2ND AUDIO PREAMP TSTR NPN
Q1455 921-01104 L. CH. 3RD AUDIO PREAMP TSTR PNP
Q1456
921-01187 L. CH. 4TH AUDIO PREAMP TSTR NPN
Q1457
921-01063
L. CHAN.AUDIO PREDRIVER TSTR NPN
Q1458 921-01102 L. CHAN. AUDIO PREDRIVER TSTR PNP
Q1459 921-01187 L. CHAN. AUDIO DRIVER TSTR NPN
Q1460
921-1104 L. CHANNEL AUDIO DRIVER TSTR PNP
Q1461 921-01112 L CH AUDIO POWER OUTPUT TSTR NPN
Q1462 921-01113
L CH AUDIO POWER OUTPUT TSTR PNP
Q501
921-01106
VOLTAGE REGULATOR TSTR NPN
Q502 921-01107 VOLTAGE REGULATOR TSTR PNP
R115 863-02488 100KΩ
±5%
1/4W CARBON FILM RES
R123
863-02488
100KΩ
±5%
1/4W CARBON FILM RES
R1401 863-02593
560KΩ
±5%
1/4W CARBON FILM RES
R1402 863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R1403 863-02469
1KΩ
±5%
1/4W CARBON FILM RES
R1404 863-02677
200Ω
±5%
1/2W CARBON FILM RES
R1405
863-02479
10KΩ
±5%
1/4W CARBON FILM RES
R1406
863-02677
200Ω
±5%
1/2W CARBON FILM RES
R1407 863-02471
2200Ω
±5%
1/4W CARBON FILM RES
R1408 863-02470
1800Ω
±5%
1 4W CARBON FILM RES
R1409 863-02485
47KΩ
±5%
1/4W CARBON FILM RES
R1410 863-02676
68Ω
±5%
1/2W CARBON FILM RES
R1411
863-02469
1KΩ
±5%
1/4W CARBON FILM RES
R1412
863-02856
470Ω ROTARY R. CHAN. BIAS CONTROL
R1413
863-02459
270Ω
±5%
1/4W CARBON FILM RES
R1414
863-02475
4700Ω
±5%
1/4W CARBON FILM RES
R1415 863-02680
1500Ω
±5%
1/2W CARBON FILM RES
R1416 863-02459
270Ω
±5%
1/4W CARBON FILM RES
R1417 863-02459
270Ω
±5%
1/4W CARBON FILM RES
R1418
863-02456
220Ω
±5%
1/2W CARBON FILM RES
R1419
863-02462 180Ω
±5%
1/4W CARBON FILM RES
R1420
863-02462 180Ω
±5%
1/4W CARBON FILM RES
R1421 863-02456 220Ω
±5%
1/2W CARBON FILM RES
R1422 863-02690
0.27Ω
±5%
2W METAL FILM RES
R1423
863-02690
0.27Ω
±5%
2W METAL FILM RES
30
