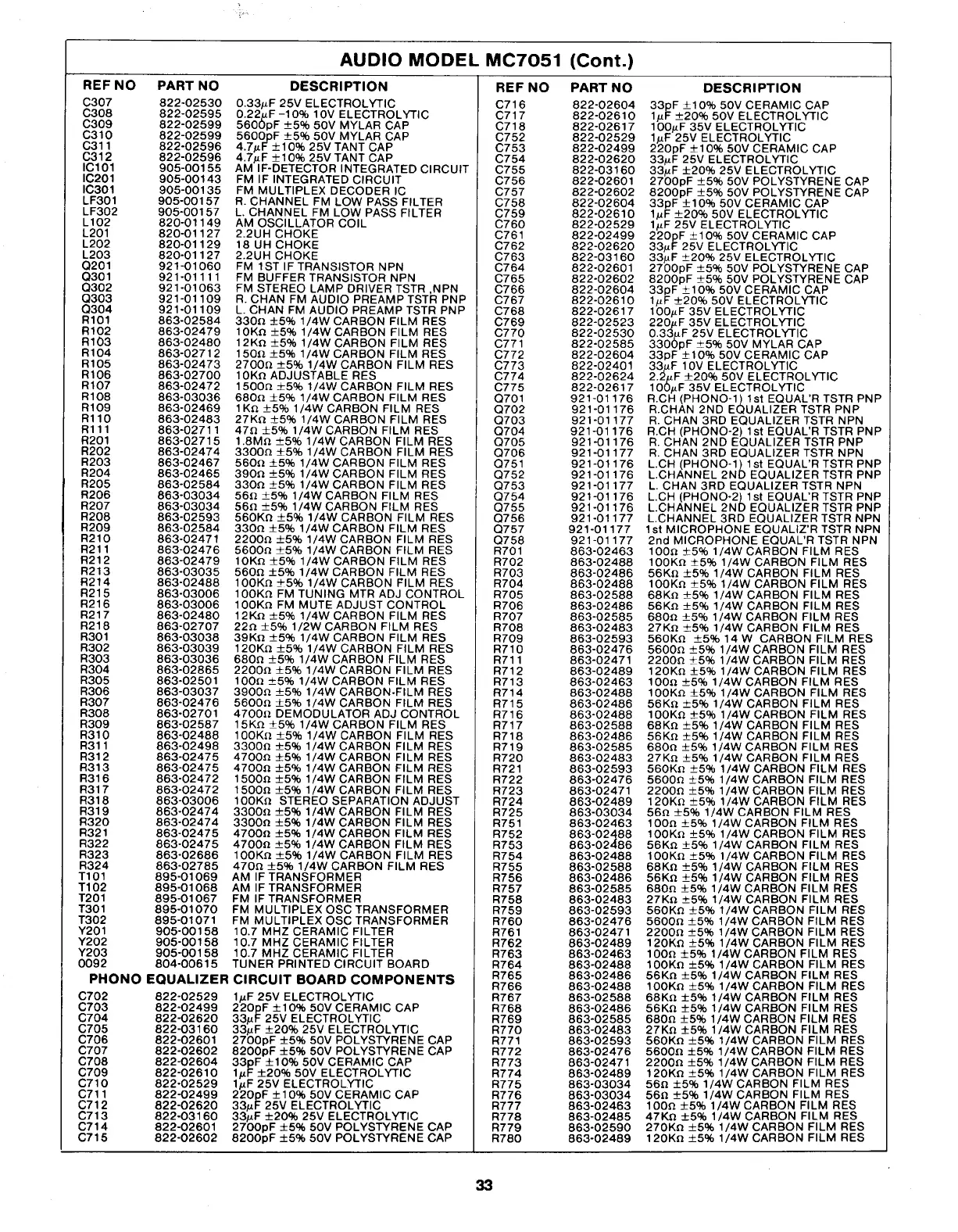

AUDIO MODEL MC7051 (Cont.)
REF NO
PART NO
DESCRIPTION
C307
822-02530
0.33uF 25V ELECTROLYTIC
C308 822-02595
0.22uF -10% 10V ELECTROLYTIC
C309
822-02599
5600pF ±5% 50V MYLAR CAP
C310 822-02599
5600pF ±5% 50V MYLAR CAP
C311
822-02596
4.7uF ± 10% 25V TANT CAP
C312 822-02596
4.7uF ±10% 25V TANT CAP
IC101 905-00155
AM IF-DETECTOR INTEGRATED CIRCUIT
IC201
905-00143
FM IF INTEGRATED CIRCUIT
IC301
905-00135
FM MULTIPLEX DECODER IC
LF301
905-00157
R. CHANNEL FM LOW PASS FILTER
LF302 905-00157
L. CHANNEL FM LOW PASS FILTER
L102 820-01149
AM OSCILLATOR COIL
L201 820-01127
2.2UH CHOKE
L202 820-01129
18 UH CHOKE
L203
820-01127
2.2UH CHOKE
Q201
921-01060
FM 1 ST IF TRANSISTOR N PN
Q301
921-01111
FM BUFFER TRANSISTOR NPN
Q302
921-01063
FM STEREO LAMP DRIVER TSTR ,NPN
Q303 921-01109
R. CHAN FM AUDIO PREAMP TSTR PNF
Q304
921-01109
L. CHAN FM AUDIO PREAMP TSTR PNP
R101 863-02584
330Ω ±5% 1/4W CARBON FILM RES
R102
863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R103
863-02480
12KΩ ±5% 1/4W CARBON FILM RES
R104 863-02712
150Ω ±5% 1/4W CARBON FILM RES
R105
863-02473
2700Ω ±5% 1/4W CARBON FILM RES
R106
863-02700
10KΩ ADJUSTABLE RES
R107 863-02472
1500Ω ±5% 1/4W CARBON FILM RES
R108
863-03036
680Ω ±5% 1/4W CARBON FILM RES
R109
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R110
863-02483 27KΩ ±5% 1/4W CARBON FILM RES
R111 863-02711
47Ω ±5% 1/4W CARBON FILM RES
R201
863-02715
1.8MΩ ±5% 1 /4W CARBON FILM RES
R202 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R203 863-02467
560Ω ±5% 1/4W CARBON FILM RES
R204 863-02465
390Ω ±5% 1/4W CARBON FILM RES
R205 863-02584
330Ω ±5% 1/4W CARBON FILM RES
R206 863-03034
56Ω ±5% 1/4W CARBON FILM RES
R207 863-03034
56Ω ±5% 1/4W CARBON FILM RES
R208 863-02593
560KΩ ±5% 1/4W CARBON FILM RES
R209 863-02584
330Ω ±5% 1/4W CARBON FILM RES
R210
863-02471
2200Ω ±5% 1/4W CARBON FILM RES
R211 863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R212
863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R213
863-03035 560Ω ±5% 1/4W CARBON FILM RES
R214 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R215
863-03006
100KΩ FM TUNING MTR ADJ CONTROL
R216
863-03006 100KΩ FM MUTE ADJUST CONTROL
R217
863-02480 12KΩ ±5% 1/4W CARBON FILM RES
R218 863-02707
22Ω ±5% 1/2W CARBON FILM RES
R301
863-03038
39KΩ ±5% 1/4W CARBON FILM RES
R302 863-03039
120KΩ ±5% 1/4W CARBON FILM RES
R303
863-03036
680Ω ±5% 1/4W CARBON FILM RES
R304
863-02865
2200Ω ±5% 1/4W CARBON FILM RES
R305
863-02501 100Ω ±5% 1/4W CARBON FILM RES
R306 863-03037
3900Ω ±5% 1/4W CARBON FILM RES
R307
863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R308
863-02701
4700Ω DEMODULATOR ADJ CONTROL
R309 863-02587 15KΩ ±5% 1 /4W CARBON FILM RES
R310 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R311 863-02498
3300Ω ±5% 1/4W CARBON FILM RES
R312
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R313 863-02475
4700Ω ±5% 1/4W CARBON FILM RES
R316 863-02472
1500Ω ±5% 1/4W CARBON FILM RES
R317 863-02472
1500Ω ±5% 1/4W CARBON FILM RES
R318 863-03006
100KΩ STEREO SEPARATION ADJUST
R319 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R320 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R321
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R322
863-02475 4700Ω ±5% 1/4W CARBON FILM RES
R323 863-02686
100KΩ ±5% 1/4W CARBON FILM RES
R324 863-02785
470Ω ±5% 1/4W CARBON FILM RES
T101
895-01069 AM IF TRANSFORMER
T102 895-01068
AM IF TRANSFORMER
T201 895-01067
FM IF TRANSFORMER
T301 895-01070
FM MULTIPLEX OSC TRANSFORMER
T302 895-01071
FM MULTIPLEX OSC TRANSFORMER
Y201
905-00158 10.7 MHZ CERAMIC FILTER
Y202 905-00158
10.7 MHZ CERAMIC FILTER
Y203
905-00158 10.7 MHZ CERAMIC FILTER
0092
804-00615 TUNER PRINTED CIRCUIT BOARD
PHONO EQUALIZER CIRCUIT BOARD COMPONENTS
C702
822-02529
1
M
F 25V ELECTROLYTIC
C703
822-02499 220pF ±10% 50V CERAMIC CAP
C704
C705
822-02620
822-03160
33/xF 25V ELECTROLYTIC
33jotF ±20% 25V ELECTROLYTIC
C706
822-02601 2700pF ±5% 50V POLYSTYRENE CAP
C707
822-02602
8200pF ±5% 50V POLYSTYRENE CAP
C708 822-02604
33pF ±10% 50V CERAMIC CAP
C709
822-02610
1/xF ±20% 50V ELECTROLYTIC
C710
822-02529 1mF 25V ELECTROLYTIC
C711
822-02499
220pF ±10% 50V CERAMIC CAP
C712
822-02620 33/xF 25V ELECTROLYTIC
C713 822-03160
33/xF ±20% 25V ELECTROLYTIC
C714
822-02601
2700pF ±5% 50V POLYSTYRENE CAP
C715 822-02602 8200pF ±5% 50V POLYSTYRENE CAP
REF NO
PART NO
DESCRIPTION
C716 822-02604
33pF ±10% 50V CERAMIC CAP
C717 822-02610
1uF ±20% 50V ELECTROLYTIC
C718 822-02617
100uF 35V ELECTROLYTIC
C752 822-02529
1uF 25V ELECTROLYTIC
C753
822-02499
220pF ±10% 50V CERAMIC CAP
C754
822-02620 33uF 25V ELECTROLYTIC
C755 822-03160
33uF ±20% 25V ELECTROLYTIC
C756
822-02601
2700pF ±5% 50V POLYSTYRENE CAP
C757 822-02602
8200pF ±5% 50V POLYSTYRENE CAP
C758 822-02604
33pF ±10% 50V CERAMIC CAP
C759 822-02610
1uF ±20% 50V ELECTROLYTIC
C760
822-02529
1uF 25V ELECTROLYTIC
C761 822-02499
220pF ±10% 50V CERAMIC CAP
C762 822-02620 33uF 25V ELECTROLYTIC
C763 822-03160
33uF ±20% 25V ELECTROLYTIC
C764
822-02601 2700pF ±5% 50V POLYSTYRENE CAP
C765 822-02602
8200pF ±5% 50V POLYSTYRENE CAP
C766 822-02604 33pF ±10% 50V CERAMIC CAP
C767 822-02610
1uF ±20% 50V ELECTROLYTIC
C768 822-02617
100uF 35V ELECTROLYTIC
C769
822-02523 220uF 35V ELECTROLYTIC
C770 822-02530
0.33uF 25V ELECTROLYTIC
C771 822-02585 3300pF ±5% 50V MYLAR CAP
C772 822-02604
33pF ±10% 50V CERAMIC CAP
C773 822-02401 33uF 10V ELECTROLYTIC
C774 822-02624
2.2uF ±20% 50V ELECTROLYTIC
C775 822-02617
100uF 35V ELECTROLYTIC
Q701
921-01176
R.CH (PHONO-1) 1st EQUAL'R TSTR PNP
Q702 921-01176 R.CHAN 2ND EQUALIZER TSTR PNP
Q703 921-01177 R. CHAN 3RD EQUALIZER TSTR NPN
Q704 921-01176 R.CH (PHONO-2) 1st EQUAL'R TSTR PNP
Q705 921-01176 R. CHAN 2ND EQUALIZER TSTR PNP
Q706 921-01177 R. CHAN 3RD EQUALIZER TSTR NPN
Q751 921-01176 L.CH (PHONO-1) 1 st EQUAL'R TSTR PNP
Q752 921-01176 L.CHANNEL 2ND EQUALIZER TSTR PNP
Q753 921-01177 L. CHAN 3RD EQUALIZER TSTR NPN
Q754 921-01176 L.CH (PHONO-2) 1st EQUAL'R TSTR PNP
Q755 921-01176
L.CHANNEL 2ND EQUALIZER TSTR PNP
Q756 921-01177 L.CHANNEL 3RD EQUALIZER TSTR NPN
Q757 921-01177 1st MICROPHONE EQUALIZ'R TSTR NPN
Q758 921-01177 2nd MICROPHONE EQUAL'R TSTR NPN
R701 863-02463 100Ω ±5% 1/4W CARBON FILM RES
R702
863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R703 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R704 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R705
863-02588
68KΩ ±5% 1/4W CARBON FILM RES
R706 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R707 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R708
863-02483
27KΩ ±5% 1/4W CARBON FILM RES
R709 863-02593 560KΩ ±5% 14 W CARBON FILM RES
R710 863-02476 5600Ω ±5% 1/4W CARBON FILM RES
R711 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R712 863-02489 120KΩ ±5% 1/4W CARBON FILM RES
R713 863-02463 100Ω ±5% 1/4W CARBON FILM RES
R714 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R715 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R716 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R717 863-02588 68KΩ ±5% 1/4W CARBON FILM RES
R718
863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R719 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R720
863-02483 27KΩ ±5% 1/4W CARBON FILM RES
R721 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R722 863-02476 5600Ω ±5% 1/4W CARBON FILM RES
R723 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R724 863-02489 120KΩ ±5% 1/4W CARBON FILM RES
R725 863-03034 56Ω ±5% 1/4W CARBON FILM RES
R751 863-02463 100Ω ±5% 1/4W CARBON FILM RES
R752 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R753 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R754 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R755 863-02588 68KΩ ±5% 1/4W CARBON FILM RES
R756 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R757 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R758
863-02483 27KΩ ±5% 1/4W CARBON FILM RES
R759 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R760 863-02476 5600Ω ±5% 1/4W CARBON FILM RES
R761 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R762 863-02489 120KΩ ±5% 1/4W CARBON FILM RES
R763
863-02463 100Ω ±5% 1/4W CARBON FILM RES
R764 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R765 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R766 863-02488 100KΩ ±5% 1/4W CARBON FILM RES
R767 863-02588 68KΩ ±5% 1/4W CARBON FILM RES
R768 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R769 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R770 863-02483 27KΩ ±5% 1/4W CARBON FILM RES
R771 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R772 863-02476 5600Ω ±5% 1/4W CARBON FILM RES
R773 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R774 863-02489 120KΩ ±5% 1/4W CARBON FILM RES
R775 863-03034 56Ω ±5% 1/4W CARBON FILM RES
R776 863-03034 56Ω ±5% 1/4W CARBON FILM RES
R777 863-02463 100Ω ±5% 1/4W CARBON FILM RES
R778 863-02485 47KΩ ±5% 1/4W CARBON FILM RES
R779 863-02590 270KΩ ±5% 1/4W CARBON FILM RES
R780 863-02489 120KΩ ±5% 1/4W CARBON FILM RES
33
