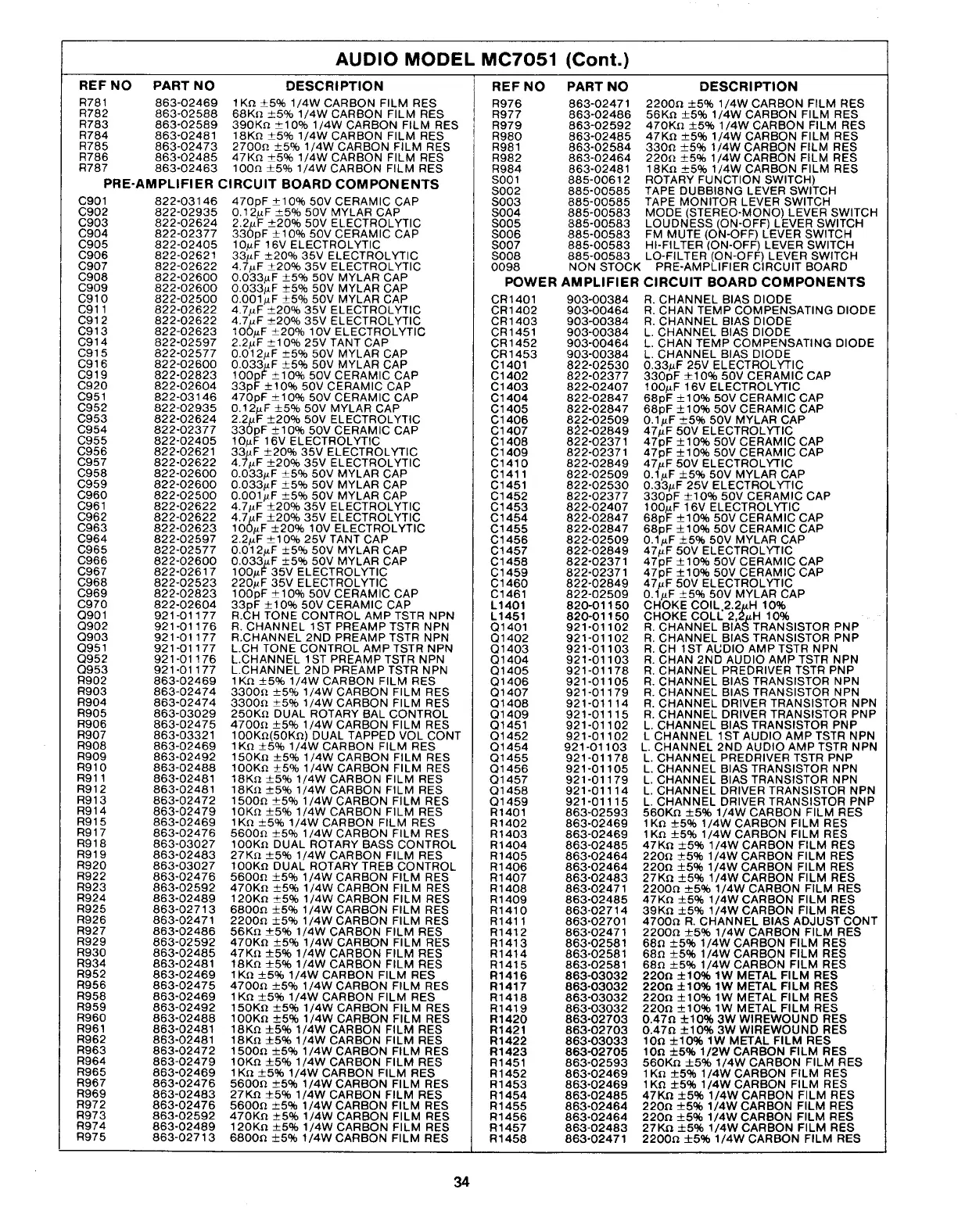

Zenith MC7041 - Page 36

AUDIO MODEL MC7051 (Cont.)
REF NO PART NO
DESCRIPTION
R781
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R782 863-02588 68KΩ ±5% 1/4W CARBON FILM RES
R783
863-02589 390KΩ ±10% 1/4W CARBON FILM RES
R784
863-02481 18KΩ ±5% 1/4W CARBON FILM RES
R785 863-02473
2700Ω. ±5% 1/4W CARBON FILM RES
R786 863-02485
47KΩ ±5% 1/4W CARBON FILM RES
R787
863-02463 100Ω ±5% 1/4W CARBON FILM RES
PRE-AMPLIFIER CIRCUIT BOARD COMPONENTS
C901
822-03146
470pF ±10% 50V CERAMIC CAP
C902 822-02935 0.12uF ±5% 50V MYLAR CAP
C903 822-02624
2.2uF ±20% 50V ELECTROLYTIC
C904 822-02377 330pF ±10% 50V CERAMIC CAP
C905 822-02405
10uF 16V ELECTROLYTIC
C906 822-02621
33uF ±20% 35V ELECTROLYTIC
C907 822-02622
4.7uF ±20% 35V ELECTROLYTIC
C908 822-02600
0.033uF ±5% 50V MYLAR CAP
C909 822-02600 0.033uF ±5% 50V MYLAR CAP
C910 822-02500
0.001uF ±5% 50V MYLAR CAP
C911 822-02622
4.7uF ±20% 35V ELECTROLYTIC
C912 822-02622
4.7uF ±20% 35V ELECTROLYTIC
C913 822-02623
100uF ±20% 10V ELECTROLYTIC
C914 822-02597
2.2uF ±10% 25V TANT CAP
C915 822-02577 0.012uF ±5% 50V MYLAR CAP
C916 822-02600
0.033uF ±5% 50V MYLAR CAP
C919 822-02823
100pF ±10% 50V CERAMIC CAP
C920 822-02604
33pF ±10% 50V CERAMIC CAP
C951 822-03146
470pF ±10% 50V CERAMIC CAP
C952
822-02935
0.12uF ±5% 50V MYLAR CAP
C953 822-02624
2.2uF ±20% 50V ELECTROLYTIC
C954 822-02377
330pF ±10% 50V CERAMIC CAP
C955 822-02405
10uF 16V ELECTROLYTIC
C956 822-02621
33uF ±20% 35V ELECTROLYTIC
C957 822-02622
4.7uF ±20% 35V ELECTROLYTIC
C958 822-02600
0.033uF ±5% 50V MYLAR CAP
C959 822-02600
0.033uF ±5% 50V MYLAR CAP
C960
822-02500
0.001uF ±5% 50V MYLAR CAP
C961 822-02622 4.7uF ±20% 35V ELECTROLYTIC
C962 822-02622
4.7uF ±20% 35V ELECTROLYTIC
C963
822-02623
100uF ±20% 10V ELECTROLYTIC
C964 822-02597
2.2uF ±10% 25V TANT CAP
C965 822-02577 0.012uF ±5% 50V MYLAR CAP
C966
822-02600 0.033uF ±5% 50V MYLAR CAP
C967 822-02617
100uF 35V ELECTROLYTIC
C968 822-02523 220uF 35V ELECTROLYTIC
C969
822-02823 100pF ±10% 50V CERAMIC CAP
C970 822-02604
33pF ±10% 50V CERAMIC CAP
Q901 921-01177 R.CH TONE CONTROL AMP TSTR NPN
Q902 921-01176
R. CHANNEL 1ST PREAMP TSTR NPN
Q903 921-01177
R.CHANNEL 2ND PREAMP TSTR NPN
Q951 921-01177 L.CH TONE CONTROL AMP TSTR NPN
Q952
921-01176 L.CHANNEL 1ST PREAMP TSTR NPN
Q953 921-01177
L.CHANNEL 2ND PREAMP TSTR NPN
R902 863-02469
1KΩ ±5% 1 /4W CARBON FILM RES
R903 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R904 863-02474
3300Ω ±5% 1/4W CARBON FILM RES
R905
863-03029
250KΩ DUAL ROTARY BAL CONTROL
R906 863-02475
4700Ω ±5% 1/4W CARBON FILM RES
R907 863-03321
100KΩ(50KΩ) DUAL TAPPED VOL CONT
R908
863-02469 1KΩ ±5% 1/4W CARBON FILM RES
R909 863-02492
150KΩ ±5% 1/4W CARBON FILM RES
R910 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R911 863-02481
18KΩ ±5% 1/4W CARBON FILM RES
R912 863-02481
18KΩ ±5% 1/4W CARBON FILM RES
R913 863-02472
1500Ω ±5% 1 /4W CARBON FILM RES
R914 863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R915 863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R917 863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R918 863-03027
100KΩ DUAL ROTARY BASS CONTROL
R919 863-02483
27KΩ ±5% 1/4W CARBON FILM RES
R920 863-03027
100KΩ DUAL ROTARY TREB CONTROL
R922 863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R923
863-02592
470KΩ ±5% 1/4W CARBON FILM RES
R924 863-02489
120KΩ ±5% 1/4W CARBON FILM RES
R925
863-02713
6800Ω ±5% 1/4W CARBON FILM RES
R926 863-02471
2200Ω ±5% 1/4W CARBON FILM RES
R927 863-02486
56KΩ ±5% 1/4W CARBON FILM RES
R929 863-02592
470KΩ ±5% 1/4W CARBON FILM RES
R930 863-02485
47KΩ ±5% 1/4W CARBON FILM RES
R934
863-02481
18KΩ ±5% 1/4W CARBON FILM RES
R952 863-02469
1KΩ ±5% 1 /4W CARBON FILM RES
R956
863-02475
4700Ω ±5% 1/4W CARBON FILM RES
R958 863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R959 863-02492
150KΩ ±5% 1/4W CARBON FILM RES
R960 863-02488
100KΩ ±5% 1/4W CARBON FILM RES
R961
863-02481
18KΩ ±5% 1/4W CARBON FILM RES
R962 863-02481
18KΩ ±5% 1/4W CARBON FILM RES
R963 863-02472
1500Ω ±5% 1/4W CARBON FILM RES
R964
863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R965
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R967
863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R969
863-02483
27KΩ ±5% 1/4W CARBON FILM RES
R972
863-02476
5600Ω ±5% 1/4W CARBON FILM RES
R973 863-02592
470KΩ ±5% 1/4W CARBON FILM RES
R974 863-02489
120KΩ ±5% 1/4W CARBON FILM RES
R975
863-02713
6800Ω ±5% 1/4W CARBON FILM RES
REF NO
PART NO
DESCRIPTION
R976 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R977 863-02486 56KΩ ±5% 1/4W CARBON FILM RES
R979 863-02592 470KΩ ±5% 1/4W CARBON FILM RES
R980 863-02485 47KΩ ±5% 1/4W CARBON FILM RES
R981 863-02584 330Ω ±5% 1/4W CARBON FILM RES
R982 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R984
863-02481
18KΩ ±5% 1/4W CARBON FILM RES
S001 885-00612 ROTARY FUNCTION SWITCH)
S002
885-00585
TAPE DUBBI8NG LEVER SWITCH
S003 885-00585 TAPE MONITOR LEVER SWITCH
S004
885-00583 MODE (STEREO-MONO) LEVER SWITCH
S005 385-00583 LOUDNESS (ON-OFF) LEVER SWITCH
S006 885-00583 FM MUTE (ON-OFF) LEVER SWITCH
S007
885-00583
HI-FILTER (ON-OFF) LEVER SWITCH
S008 885-00583 LO-FILTER (ON-OFF) LEVER SWITCH
0098 NON STOCK PRE-AMPLIFIER CIRCUIT BOARD
POWER AMPLIFIER CIRCUIT BOARD COMPONENTS
CR1401
903-00384 R. CHANNEL BIAS DIODE
CR1402 903-00464 R. CHAN TEMP COMPENSATING DIODE
CR1403 903-00384 R. CHANNEL BIAS DIODE
CR1451
903-00384 L. CHANNEL BIAS DIODE
CR1452 903-00464
L. CHAN TEMP COMPENSATING DIODE
CR1453
903-00384 L. CHANNEL BIAS DIODE
C1401 822-02530 0.33uF 25V ELECTROLYTIC
C1402 822-02377 330pF ±10% 50V CERAMIC CAP
C1403 822-02407 100uF 16V ELECTROLYTIC
C1404 822-02847 68pF ±10% 50V CERAMIC CAP
C1405 822-02847 68pF ±10% 50V CERAMIC CAP
C1406 822-02509 0.1uF ±5% 50V MYLAR CAP
C1407 822-02849 47uF 50V ELECTROLYTIC
C1408 822-02371 47pF ±10% 50V CERAMIC CAP
C1409 822-02371 47pF ±10% 50V CERAMIC CAP
C1410 822-02849 47uF 50V ELECTROLYTIC
C1411 822-02509 0.1uF ±5% 50V MYLAR CAP
C1451 822-02530 0.33uF 25V ELECTROLYTIC
C1452 822-02377 330pF ±10% 50V CERAMIC CAP
C1453 822-02407 100uF 16V ELECTROLYTIC
C1454 822-02847 68pF ±10% 50V CERAMIC CAP
C1455 822-02847 68pF ±10% 50V CERAMIC CAP
C1456 822-02509 0.1uF ±5% 50V MYLAR CAP
C1457 822-02849 47uF 50V ELECTROLYTIC
C1458 822-02371 47pF ±10% 50V CERAMIC CAP
C1459 822-02371 47pF ±10% 50V CERAMIC CAP
C1460 822-02849
47uF 50V ELECTROLYTIC
C1461 822-02509 0.1uF ±5% 50V MYLAR CAP
L1401
820-01150
CHOKE COIL.2.2uH 10%
L1451 820-01150 CHOKE COLL 2.2uH 10%
Q1401 921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1402 921-01102 R. CHANNEL BIAS TRANSISTOR PNP
Q1403 921-01103 R. CH 1ST AUDIO AMP TSTR NPN
Q1404 921-01103 R. CHAN 2ND AUDIO AMP TSTR NPN
Q1405 921-01178 R. CHANNEL PREDRIVER TSTR PNP
Q1406 921-01105 R. CHANNEL BIAS TRANSISTOR NPN
Q1407 921-01179 R. CHANNEL BIAS TRANSISTOR NPN
Q1408 921-01114 R. CHANNEL DRIVER TRANSISTOR NPN
Q1409 921-01115 R. CHANNEL DRIVER TRANSISTOR PNP
Q1451 921-01102 L. CHANNEL BIAS TRANSISTOR PNP
Q1452 921-01102 L CHANNEL 1 ST AUDIO AMP TSTR NPN
Q1454 921-01103 L. CHANNEL 2ND AUDIO AMP TSTR NPN
Q1455 921-01178 L. CHANNEL PREDRIVER TSTR PNP
Q1456 921-01105 L. CHANNEL BIAS TRANSISTOR NPN
Q1457 921-01179 L. CHANNEL BIAS TRANSISTOR NPN
Q1458
921-01114
L. CHANNEL DRIVER TRANSISTOR NPN
Q1459 921-01115 L. CHANNEL DRIVER TRANSISTOR PNP
R1401 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R1402
863-02469 1KΩ ±5% 1 /4W CARBON FILM RES
R1403 863-02469 1KΩ ±5% 1 /4W CARBON FILM RES
R1404 863-02485 47KΩ ±5% 1/4W CARBON FILM RES
R1405 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1406 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1407 863-02483 27KΩ ±5% 1/4W CARBON FILM RES
R1408 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R1409 863-02485 47KΩ ±5% 1/4W CARBON FILM RES
R1410 863-02714 39KΩ ±5% 1/4W CARBON FILM RES
R1411
863-02701 4700Ω R. CHANNEL BIAS ADJUST CONT
R1412 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
R1413 863-02581
68Ω ±5% 1/4W CARBON FILM RES
R1414 863-02581 68Ω ±5% 1/4W CARBON FILM RES
R1415
863-02581
68Ω ±5% 1/4W CARBON FILM RES
R1416 863-03032 220Ω ±10% 1W METAL FILM RES
R1417 863-03032 220Ω ±10% 1W METAL FILM RES
R1418
863-03032 220Ω ±10% 1W METAL FILM RES
R1419 863-03032 220Ω ±10% 1W METAL FILM RES
R1420 863-02703 0.47Ω ±10% 3W WIREWOUND RES
R1421 863-02703 0.47Ω ±10% 3W WIREWOUND RES
R1422 863-03033 10Ω ±10% 1W METAL FILM RES
R1423 863-02705 10Ω ±5% 1/2W CARBON FILM RES
R1451 863-02593 560KΩ ±5% 1/4W CARBON FILM RES
R1452
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R1453 863-02469 1KΩ ±5% 1/4W CARBON FILM RES
R1454 863-02485 47KΩ ±5% 1/4W CARBON FILM RES
R1455 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1456 863-02464 220Ω ±5% 1/4W CARBON FILM RES
R1457
863-02483
27KΩ ±5% 1/4W CARBON FILM RES
R1458 863-02471 2200Ω ±5% 1/4W CARBON FILM RES
34
