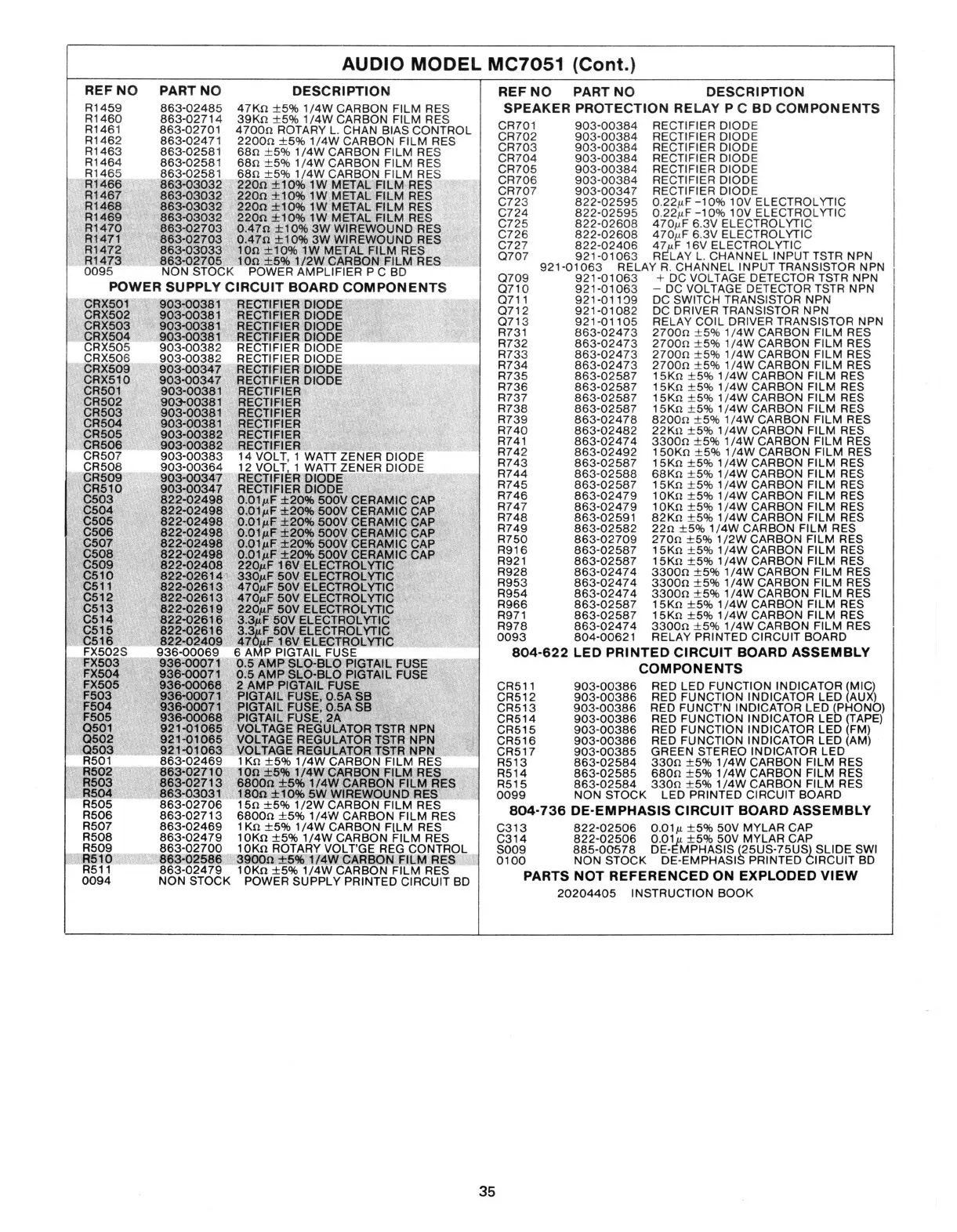

AUDIO MODEL MC7051 (Cont.)
REF NO PART NO
DESCRIPTION
R1459
863-02485
47KΩ ±5% 1/4W CARBON FILM RES
R1460 863-02714 39KΩ ±5% 1/4W CARBON FILM RES
R1461
863-02701 4700Ω ROTARY L. CHAN BIAS CONTROL
R1462
863-02471
2200Ω ±5% 1/4W CARBON FILM RES
R1463 863-02581 68Ω ±5% 1/4W CARBON FILM RES
R1464
863-02581
68Ω ±5% 1/4W CARBON FILM RES
R1465 863-02581
68Ω ±5% 1/4W CARBON FILM RES
R1466 863-03032 220Ω ±10% 1W METAL FILM RES
R1467
863-03032
220Ω ±10% 1W METAL FILM RES
R1468
863-03032
220Ω ±10% 1W METAL FILM RES
R1469 863-03032
220Ω ±10% 1W METAL FILM RES
R1470 863-02703
0.47Ω ±10% 3W WIREWOUND RES
R1471
863-02703
0.47Ω ±10% 3W WIREWOUND RES
R1472 863-03033
10Ω ±10% 1W METAL FILM RES
R1473 863-02705
10Ω ±5% 1/2W CARBON FILM RES
0095
NON STOCK
POWER AMPLIFIER P C BD
POWER SUPPLY CIRCUIT BOARD COMPONENTS
CRX501
903-00381 RECTIFIER DIODE
CRX502
903-00381 RECTIFIER DIODE
CRX503 903-00381 RECTIFIER DIODE
CRX504
903-00381 RECTIFIER DIODE
CRX505 903-00382
RECTIFIER DIODE
CRX506 903-00382
RECTIFIER DIODE
CRX509 903-00347 RECTIFIER DIODE
CRX510 903-00347
RECTIFIER DIODE
CR501
903-00381
RECTIFIER
CR502
903-00381
RECTIFIER
CR503
903-00381
RECTIFIER
CR504
903-00381
RECTIFIER
CR505
903-00382
RECTIFIER
CR506 903-00382
RECTIFIER
CR507 903-00383
14 VOLT, 1 WATT ZENER DIODE
CR508 903-00364
12 VOLT, 1 WATT ZENER DIODE
CR509
903-00347
RECTIFIER DIODE
CR510 903-00347
RECTIFIER DIODE
C503
822-02498
0.01uF ±20% 500V CERAMIC CAP
C504
822-02498
0.01uF ±20% 500V CERAMIC CAP
C505
822-02498
0.01uF ±20% 500V CERAMIC CAP
C506
822-02498
0.01uF ±20% 500V CERAMIC CAP
C507 822-02498
0.01uF ±20% 500V CERAMIC CAP
C508
822-02498
0.01uF ±20% 500V CERAMIC CAP
C509
822-02408
220uF 16V ELECTROLYTIC
C510 822-02614
330uF 50V ELECTROLYTIC
C511
822-02613
470uF 50V ELECTROLYTIC
C512
822-02613
470uF 50V ELECTROLYTIC
C513 822-02619
220uF 50V ELECTROLYTIC
C514 822-02616
3.3uF 50V ELECTROLYTIC
C515
822-02616
3.3uF 50V ELECTROLYTIC
C516
822-02409 470uF 16V ELECTROLYTIC
FX502S
936-00069 6 AMP PIGTAIL FUSE
FX503
936-00071
0.5 AMP SLO-BLO PIGTAIL FUSE
FX504 936-00071
0.5 AMP SLO-BLO PIGTAIL FUSE
FX505
936-00068
2 AMP PIGTAIL FUSE
F503
936-00071
PIGTAIL FUSE, 0.5A SB
F504
936-00071
PIGTAIL FUSE, 0.5A SB
F505
936-00068 PIGTAIL FUSE, 2A
Q501
921-01065
VOLTAGE REGULATOR TSTR NPN
Q502
921-01065
VOLTAGE REGULATOR TSTR NPN
Q503
921-01063
VOLTAGE REGULATOR TSTR NPN
R501 863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R502
863-02710
10Ω ±5% 1/4W CARBON FILM RES
R503
863-02713
6800Ω ±5% 1/4W CARBON FILM RES
R504
863-03031
180Ω ±10% 5W WIREWOUND RES
R505 863-02706
15Ω ±5% 1 /2W CARBON FILM RES
R506
863-02713 6800Ω ±5% 1/4W CARBON FILM RES
R507
863-02469
1KΩ ±5% 1/4W CARBON FILM RES
R508 863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R509
863-02700
10KΩ ROTARY VOLT'GE REG CONTROL
R510
863-02586
3900Ω ±5% 1/4W CARBON FILM RES
R511 863-02479
10KΩ ±5% 1/4W CARBON FILM RES
0094 NON STOCK
POWER SUPPLY PRINTED CIRCUIT BD
REF NO PART NO
DESCRIPTION
SPEAKER PROTECTION RELAY P C BD COMPONENTS
CR701
903-00384
RECTIFIER DIODE
CR702 903-00384 RECTIFIER DIODE
CR703 903-00384 RECTIFIER DIODE
CR704 903-00384 RECTIFIER DIODE
CR705 903-00384 RECTIFIER DIODE
CR706 903-00384 RECTIFIER DIODE
CR707 903-00347 RECTIFIER DIODE
C723 822-02595 0.22uF -10% 10V ELECTROLYTIC
C724 822-02595 0.22uF -10% 10V ELECTROLYTIC
C725 822-02608 470uF 6.3V ELECTROLYTIC
C726 822-02608 470uF 6.3V ELECTROLYTIC
C727 822-02406 47uF 16V ELECTROLYTIC
Q707 921-01063 RELAY L. CHANNEL INPUT TSTR NPN
921-01063 RELAY R. CHANNEL INPUT TRANSISTOR NPN
Q709 921-01063 + DC VOLTAGE DETECTOR TSTR NPN
Q710 921-01063 - DC VOLTAGE DETECTOR TSTR NPN
Q711 921-01139 DC SWITCH TRANSISTOR NPN
Q712 921-01082 DC DRIVER TRANSISTOR NPN
Q713 921-01105 RELAY COIL DRIVER TRANSISTOR NPN
R731 863-02473 2700Ω ±5% 1/4W CARBON FILM RES
R732 863-02473 2700Ω ±5% 1/4W CARBON FILM RES
R733 863-02473 2700Ω ±5% 1/4W CARBON FILM RES
R734 863-02473 2700Ω ±5% 1/4W CARBON FILM RES
R735 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R736 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R737 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R738 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R739 863-02478 8200Ω ±5% 1/4W CARBON FILM RES
R740 863-02482 22KΩ ±5% 1/4W CARBON FILM RES
R741 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R742 863-02492 150KΩ ±5% 1/4W CARBON FILM RES
R743 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R744 863-02588 68KΩ ±5% 1/4W CARBON FILM RES
R745 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R746 863-02479 10KΩ ±5% 1/4W CARBON FILM RES
R747
863-02479
10KΩ ±5% 1/4W CARBON FILM RES
R748 863-02591 82KΩ ±5% 1/4W CARBON FILM RES
R749 863-02582 22Ω ±5% 1/4W CARBON FILM RES
R750 863-02709 270Ω ±5% 1/2W CARBON FILM RES
R916 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R921 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R928 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R953 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R954 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
R966 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R971 863-02587 15KΩ ±5% 1/4W CARBON FILM RES
R978 863-02474 3300Ω ±5% 1/4W CARBON FILM RES
0093 804-00621 RELAY PRINTED CIRCUIT BOARD
804-622 LED PRINTED CIRCUIT BOARD ASSEMBLY
COMPONENTS
CR511
903-00386 RED LED FUNCTION INDICATOR (MIC)
CR512 903-00386 RED FUNCTION INDICATOR LED (AUX)
CR513 903-00386 RED FUNCT'N INDICATOR LED (PHONO)
CR514
903-00386
RED FUNCTION INDICATOR LED (TAPE)
CR515 903-00386 RED FUNCTION INDICATOR LED (FM)
CR516 903-00386 RED FUNCTION INDICATOR LED (AM)
CR517 903-00385 GREEN STEREO INDICATOR LED
R513 863-02584 330Ω ±5% 1/4W CARBON FILM RES
R514 863-02585 680Ω ±5% 1/4W CARBON FILM RES
R515 863-02584 330Ω ±5% 1/4W CARBON FILM RES
0099 NON STOCK LED PRINTED CIRCUIT BOARD
804-736 DE-EMPHASIS CIRCUIT BOARD ASSEMBLY
C313 822-02506
0.01u ±5% 50V MYLAR CAP
C314 822-02506 0.01u ±5% 50V MYLAR CAP
S009 885-00578 DE-EMPHASIS (25US-75US) SLIDE SWI
0100 NON STOCK DE-EMPHASIS PRINTED CIRCUIT BD
PARTS NOT REFERENCED ON EXPLODED VIEW
20204405 INSTRUCTION BOOK
35
