Page 3-2
CONTRAST CONTROL
The Contrast control is located on the front of the
Monitor behind the access door. Refer to Figure 3-2.
BLACK LEVEL CONTROL
The Black Level control is located on the front of
the Monitor behind the access door. Refer to Figure
3- 2.
VERTICAL SIZE CONTROL
The Vertical Size control is located on the front of
the Monitor behind the access door. Refer to Figure
3-2.
VERTICAL SIZE
VERTICAL HOLD CONTROL
The Vertical Hold control is located on the front of
the Monitor behind the access door. Refer to Figure
3-2.
HomZONTALHOLDCONTROL
The horizontal hold control is located in front of
the monitor behind the access door. Refer to Figure
3-2.
ON/OFF SWITCH
The ON/OFF switch is located on the front of the
monitor.

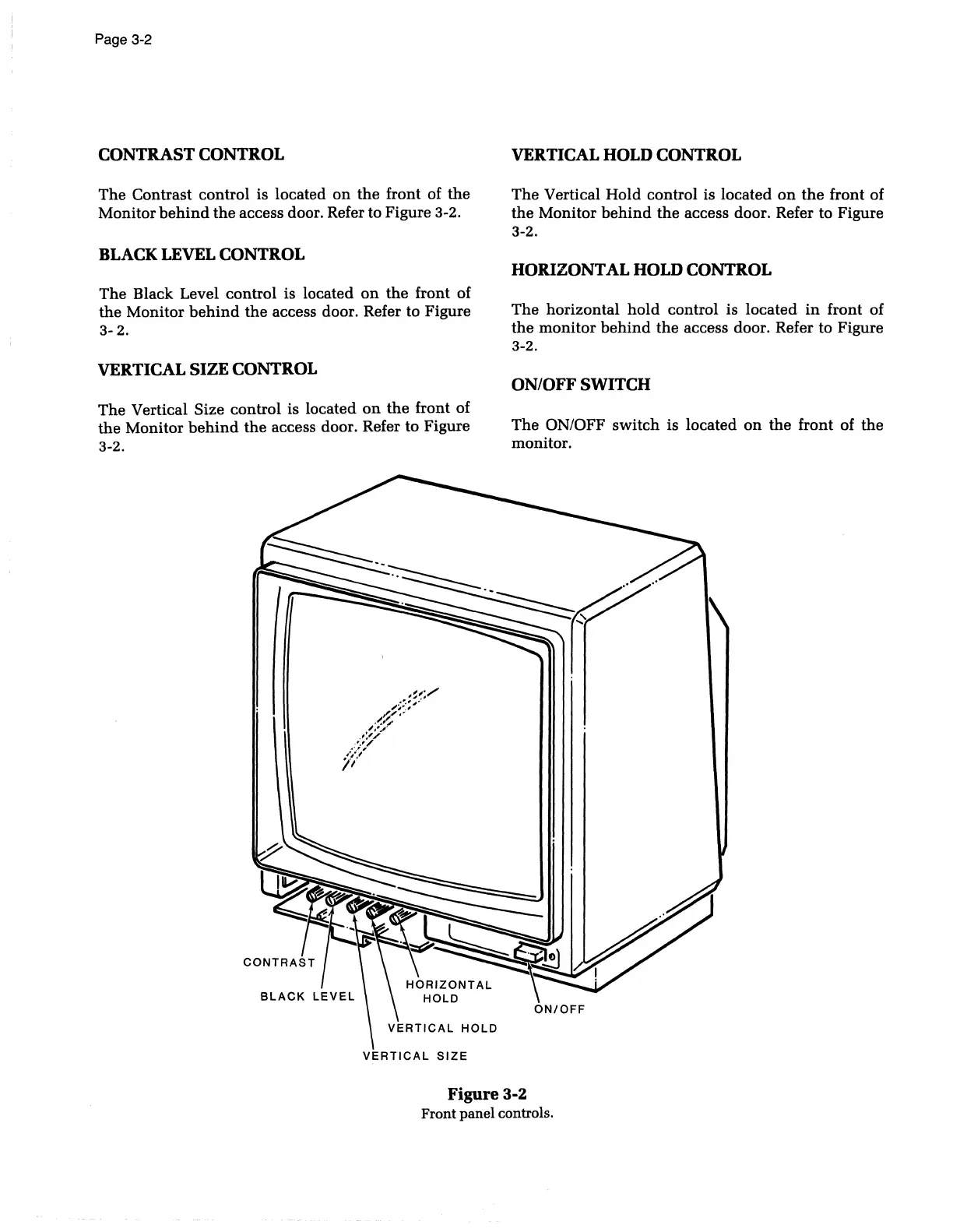

Figure 3-2
Front panel controls.
