INSTALLATION AND SET UP
Control adjustments are covered in Service Proce-
dure, section 6.
LOCATION
The ZVM-122 and ZVM-123 Monitors should be lo-
cated near an AC power source, and in an area which
will provide proper ventilation. There are vents on
the back and bottom of the cabinet permitting air
flow
through the cabinet. Be sure these vents are
not blocked.
CABLE DESCRIPTION
The video output cable from the computer to the
Video In jack on the Monitors is a single conductor
cable (HE 134-1319). Refer to Figure 3-1 for cable
connection to the Monitor.
WIDTH CONTROL
The Width control is soldered to the input board
and is accessible from the rear panel. Refer to Figure
3-1.
40/80 CHARACTER SWITCH
The 40/80 Character switch is an SPST slide switch
located on the rear panel. Refer to Figure 3-1.
1111111111111111111111111111111111
~
.. ~~============~
o
D

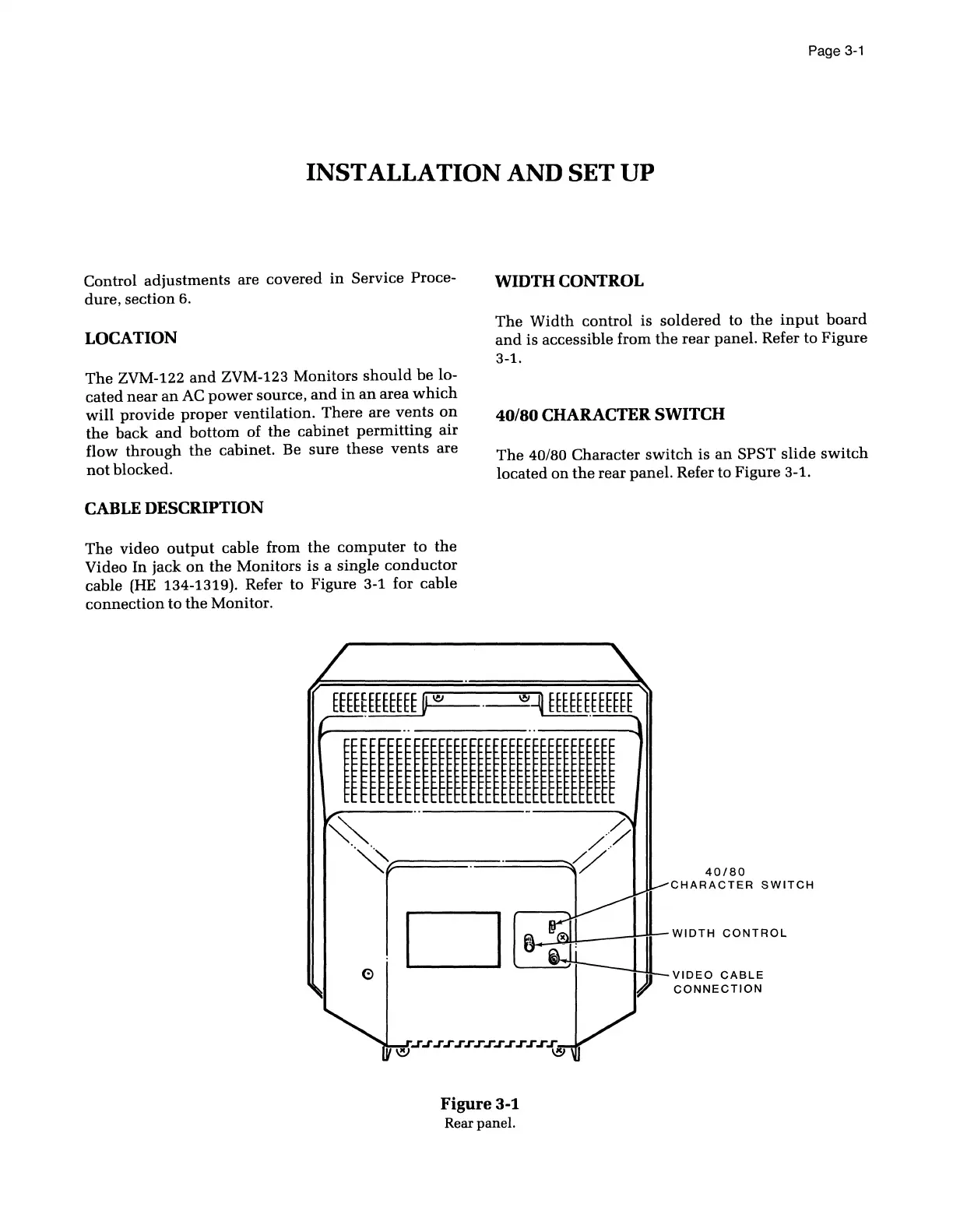

Figure 3-1
Rear panel.
40/80
CHARACTER SWITCH
