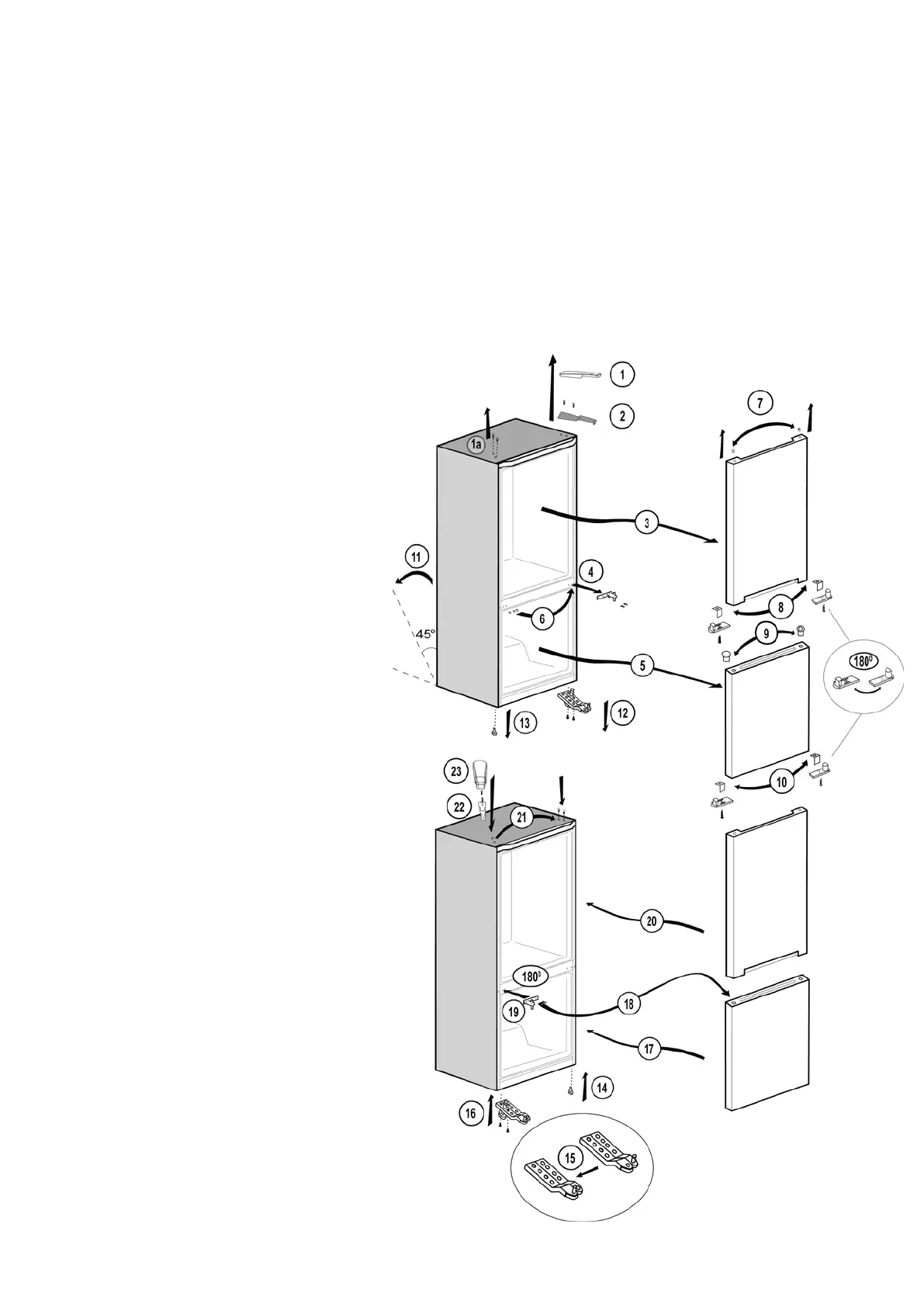

REVERSING THE DOORS
(You may need somebody to help you.)
1- Switch off the appliance at the socket outlet and pull out the mains plug.
2- Remove all loose items and fittings and food, if any, from inside the appliance and door racks.
3- Remove the plastic cover of the top hinge and the two plastic ornaments on top of the cabinet. (1 & 1a)
4- Unscrew the bolts and remove the top hinge while holding fridge door. (2)
5- Remove the fridge door from the middle hinge. (3)
6- Unscrew the bolts and remove the middle hinge while holding freezer door. (4)
7- Remove the freezer door from the lower hinge. (5)
8- Reposition plugs on the opposite side. (6)
9- Reposition the hinge bushing and the tap on the fridge door. (7)
10- Unscrew and reposition the middle hinge bushing from fridge door. (8)
11- Reposition the hinge bushing and the tap on the freezer door. (9)
12- Unscrew and reposition the bottom hinge bushing from freezer door. (10)
13- Carefully tilt the appliance on its back. (11) (You may need somebody to help you.)
14- Take off lower hinge. (12)
15- Unscrew the screw level. (13)
16- Screw the screw level. (14)
17- Reposition the lower hinge pin. (15)
18- Take on lower hinge. (16)
19- Locate the freezer door to the lower
hinge and attach to the cabinet. (17)
20- Locate the middle hinge on the freezer
door. (18)
21- Fit the middle hinge. (19)
22- Locate the fridge door to the middle hinge
and attach to the cabinet. (20)
23- Reposition the two plastic ornaments
on top of the cabinet. (21)
24- Locate the top hinge on the fridge door,
fit on top of the cabinet and screw the
bolts. (22)
25- Fit the plastic cover of the top hinge. (23)
26- Carefully stand your appliance (you
may need somebody to help you)
adjust the front feet.
27- Put back all, loose items and fittings.
28- Wait for at least 4 hours to allow the system
to settle before switching on.
29- Once the correct storage temperatures have
been reached in the appliance, put back
all the food.
