Zenoah G230PU User Manual

Q' ty per unit
PU PUH PUM
Description
Parts No.
Index
No.
Q' ty per unit
PU PUH PUM
Description
Parts No.
Index
No.
Index Q’ty
No. Parts No. Description /Unit
Index Q’ty
No. Parts No. Description /Unit
Index Q’ty
No. Parts No. Description /Unit
Index Q’ty
No. Parts No. Description /Unit
1 1148-12112 CYLINDER 1 1 0
2 1160-12111 CYLINDER 0 0 1
3 1160-12210 JACKET 0 0 1
4 07851-00515 JOINT 0 0 2
5 07000-03038 O RING 3×38 001
6 1160-12320 O RING 1.5×19.5 0 0 1
7 1160-12330 BOLT M3×8 002
8 1140-13121 GASKET CYL 1 1 1
9 3310-12281 BOLT M5×20 444
10 1140-13151 GASKET INSU 1 1 1
11 1148-13161 INSULATOR 1 1 1
12 3330-14121 GASKET CARB 1 2 1
1155-21101
CRANKCASE COMP 111
13 ✽ CRANKCASE (R) 1 1 1
14 ✽ CRANKCASE (F) 1 1 1
15 2629-21130 PIN 3 3 3
16 1140-21141 GASKET CASE 1 1 1
17 2169-21210 SEAL 12×22×7 111
18 1155-21240 BEARING 2 2 2
19 04065-02812 RING SNAP 1 1 1
20 06034-06001 BEARING 1 1 0
21 1850-21220 SEAL OIL 0 0 1
22 01252-30530 BOLT M5×30 444
23 5600-41111 PISTON 1 1 1
24 1100-41210 RING PISTON 2 2 2
Head Office : 1-9 Minamidai, Kawagoe-city,
Saitama, 350-1192 Japan
Phone: (+81)492-43-1117 Fax: (+81)492-43-7197
Printed in Japan
25 1101-41310 PIN PISTON 1 1 1
26 1260-41320 RING SNAP 2 2 2
27 5500-41410 BEARING 1 1 1
28 1101-41340
WASHER THRUST 222
29 1155-42000 CRANKSHAFT C 1 1 1
30 1155-74110 PLATE MOUNT 1 1 1
31 0262-10516 SCREW CM5×16 333
32 1650-43230 NUT 1 0 0
33 1160-75210 PULLEY 0 1 1
34 1861-75101 RECOlL ASSY 0 1 1
35 0263-30414 SCREW M4×14 044
36 1000-43240 KEY 1 1 1
37 1140-43250 SHIM 0
~20~20~2
38 2629-71210 COIL SO (GRAY) 1 0 0
39 1160-71211 COIL SO (RED) 0 1 1
40 2629-71311 COIL IG 1 1 1
41 0263-30414 SCREW M4×14 222
42 2629-72210
CAP PLUG (BLACK) 100
43 2850-72110
CAP PLUG (RED) 0 1 1
44 1400-72121 SPRING 1 1 1
45 0260-30422 SCREW M4×22 222
46-1 1148-73120
SPARKPLUG BMR7A 100
46-2 1155-73120
SPARKPLUG RCJ4 0 1 1
47 0263-90550 SCREW M5×50 202
48 0263-30555 SCREW M5×55 020
49 1142-83110 SPACER 5×10×I.6 2 0 2
50 1751-82002 AIRCREANER 0 1 0
51 1145-81002
CARBURETOR 197A 100
52 1148-81002
CARBURETOR 167A 011
53 0263-90520 SCREW M5X20 2 2 2
54 1155-71110 ROTOR 1 1 1
55-1 1155-15110 MUFFLER 1 0 0
55-2 1148-08010 MUFFLER 0 1 0
56 1140-13141 GASKET MUFF 1 2 0
57-1 01252-30550 BOLT M5×50 200
57-2 01252-30560 BOLT M5×60 020
58-1 0263-30408 SCREW M4×8 100
58-2 0263-90416 SCREW M4×16 010
59 1152-43260 HUB 1 0 0
60 1152-43281 STUD 1 0 0
61 1152-43290 WASHER HUB 1 0 0
62 3350-53410 NUT 1 0 0
63 3350-96220 STOPPER (OPT) 1 1 1
64 1490-96101
PULLER ASSY (OPT) 111
65 1110-91320 SOCKET 1 1 1
66 1145-15412 SPACER 0 1 0
67 1158-15420 SPACER 0 1 0
68 1101-96220 ROD-A (OPT) 1 1 1
Q' ty per unit
PU PUH PUM
Description
Parts No.
Index
No.

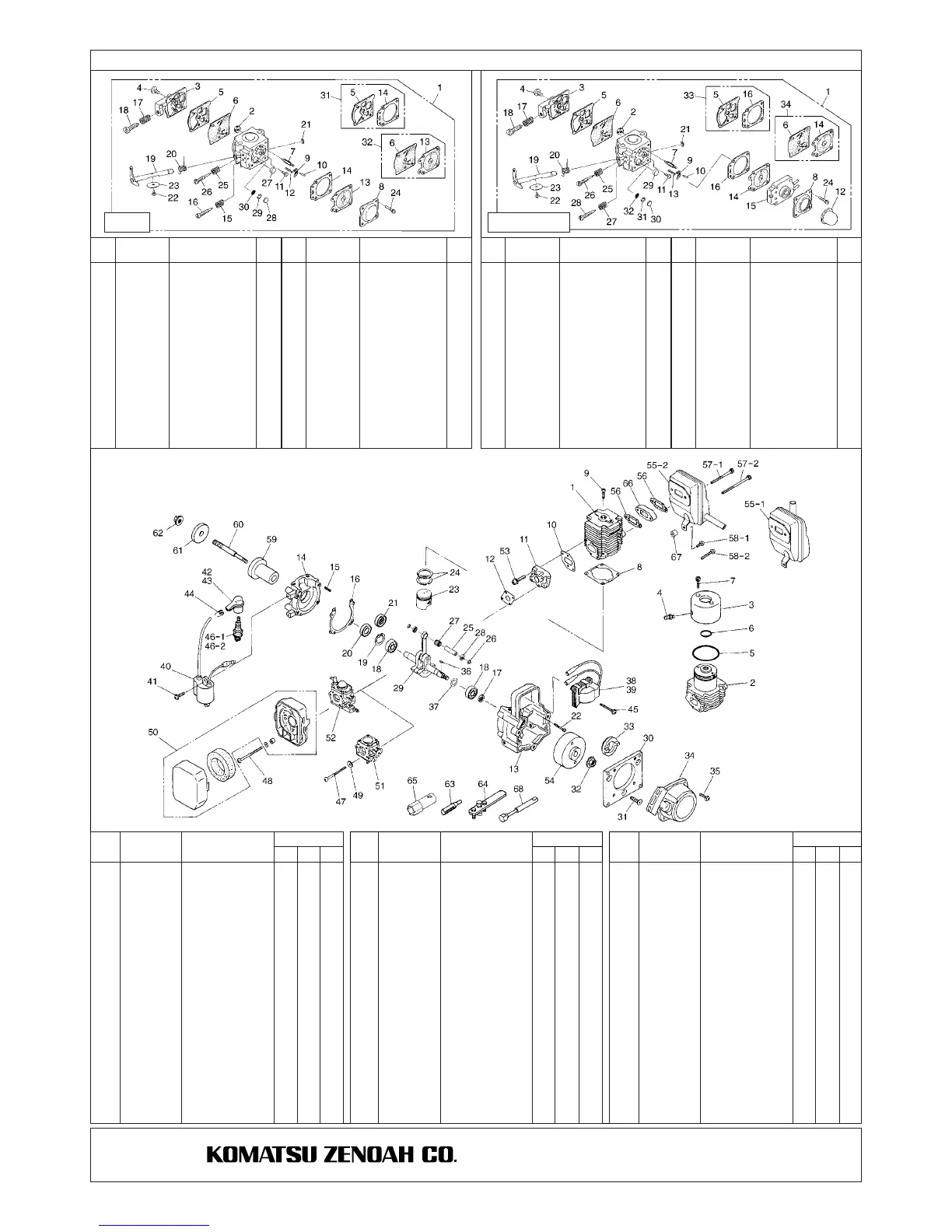

10. PARTS LIST
PUH, PUMPU
[ NOTE ]
The parts indicated “ ✽ ” in the part number column are supplied as an
assembly. No individual part available.
1 1145-81002 CARBURETOR ASSY
2 3306-81380 • SCREEN 1
3 2630-81120 • PUMP COVER 1
4 3330-81130 • SCREW 1
5 3304-81140 • GASKET, pump 1
6 1172-81150 • DIAPHRAGM, pump 1
7 3310-81311 • VALVE, inlet 1
8 3310-81280 • METERING COVER 1
9 3310-81230 • METERING LEVER 1
10 3310-81250 • PIN 1
11 3310-81240 • SCREW 1
12 2670-81270 • SPRING 1
13 3310-81260 • DIAPHRAGM ASSY 1
14 3310-81290 • GASKET, metering 1
15 1491-81160 • SPRING 1
16 1148-81171 • NEEDLE 1
17 3350-81380 • SPRING 1
18 2630-81330 • SCREW 1
19 1148-81371 • SHAFT ASSY 1
20 2670-81410 • SPRING 1
21 1148-81390 • RING 1
22 3310-81360 • SCREW 1
23 1282-81340 • THROTTLE VALVE 1
24 3310-81351 • SCREW 4
25 3080-81320 • SPRING 1
26 1148-81331 • H NEEDLE 1
27 1480-81420 • PLUG, welch 1
28 1790-81430 • PLUG 1
29 3304-81440 • RING 1
30 3304-81450 • SCREEN 1
31 3304-81910 • GASKET KIT 1
32 3304-81920 • DIAPHRAM KIT 1
1 1148-81002 CARBURETOR ASSY
2 3306-81380 • SCREEN 1
3 2630-81120 • PUMP COVER 1
4 3310-81130 • SCREW 1
5 3304-81140 • GASKET, pump 1
6 1172-81150 • DIAPHRAGM, pump 1
7 3310-81311 • VALVE, inlet 1
8 1751-81520 • METERING COVER 1
9 3310-81230 • METERING LEVER 1
10 3310-81250 • PIN 1
11 3310-81240 • SCREW 1
12 1751-81510 • PRIMER PUMP 1
13 2670-81270 • SPRING 1
14 3310-81260 • DIAPHRAGM ASSY 1
15 1790-81210 • BODY ASSY 1
16 1751-81470 • GASKET, metering 1
17 3350-81380 • SPRING 1
18 2630-81330 • SCREW 1
19 1148-81371 • SHAFT ASSY 1
20 2670-81410 • SPRING 1
21 1148-81390 • RING 1
22 3310-81360 • SCREW 1
23 1282-81340 • THROTTLE VALVE 1
24 1148-81530 • SCREW 4
25 3080-81320 • SPRING 1
26 1148-81331 • H NEEDLE 1
27 1491-81160 • SPRING 1
28 1148-81171 • NEEDLE 1
29 1480-81420 • PLUG, welch 1
30 1790-81430 • PLUG 1
31 3304-81440 • RING 1
32 3304-81450 • SCREEN 1
33 2630-06010 • GASKET KIT 1
34 3304-81920 • DIAPHRAM KIT 1
