Installation Instructions
Horizontal Ducting Preparation

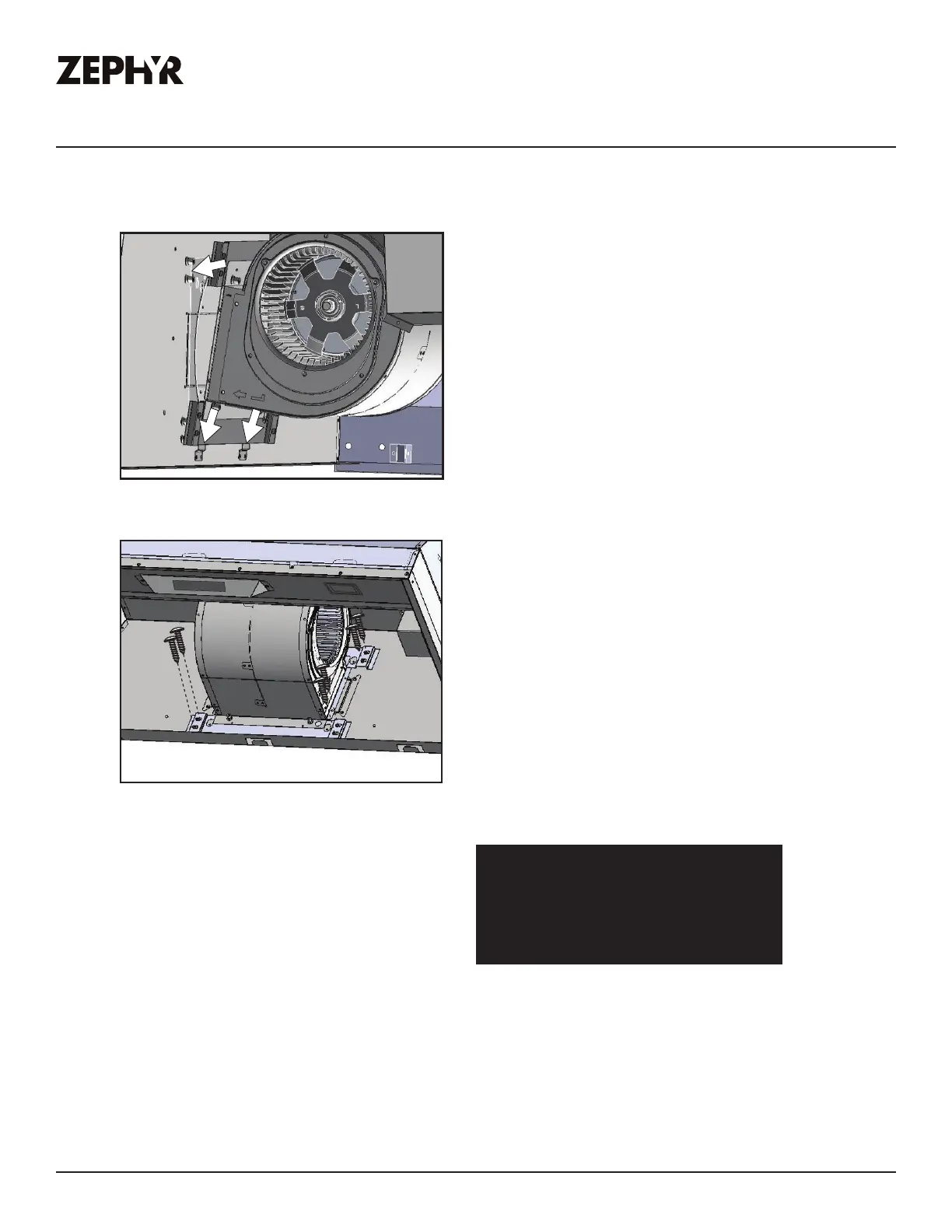

7. Position blower inside liner body
as shown by: 1) Rest the bottom
horizontal ducting bracket on
the two support clips located on
the interior back wall of the liner.
2) Pivot top horizontal ducting
bracket to meet captive nuts on
interior back wall.
1
2
1
8. Secure blower to captive nuts on
interior back wall of liner with (8)
3/16” x 3/8” screws, (4) screws
for each bracket. Seal any gaps
around the knock-out plate by
using certified aluminum duct
tape. Plug in blower molex plug.
Horizontal ducting preparation
is now complete. Refer to
page 14, step 5 to complete
installation.
