Monsoon Connect Use, Care, and Installation Guide
MONSOON
CONNECT
INSERT
CORE
Installation Instructions

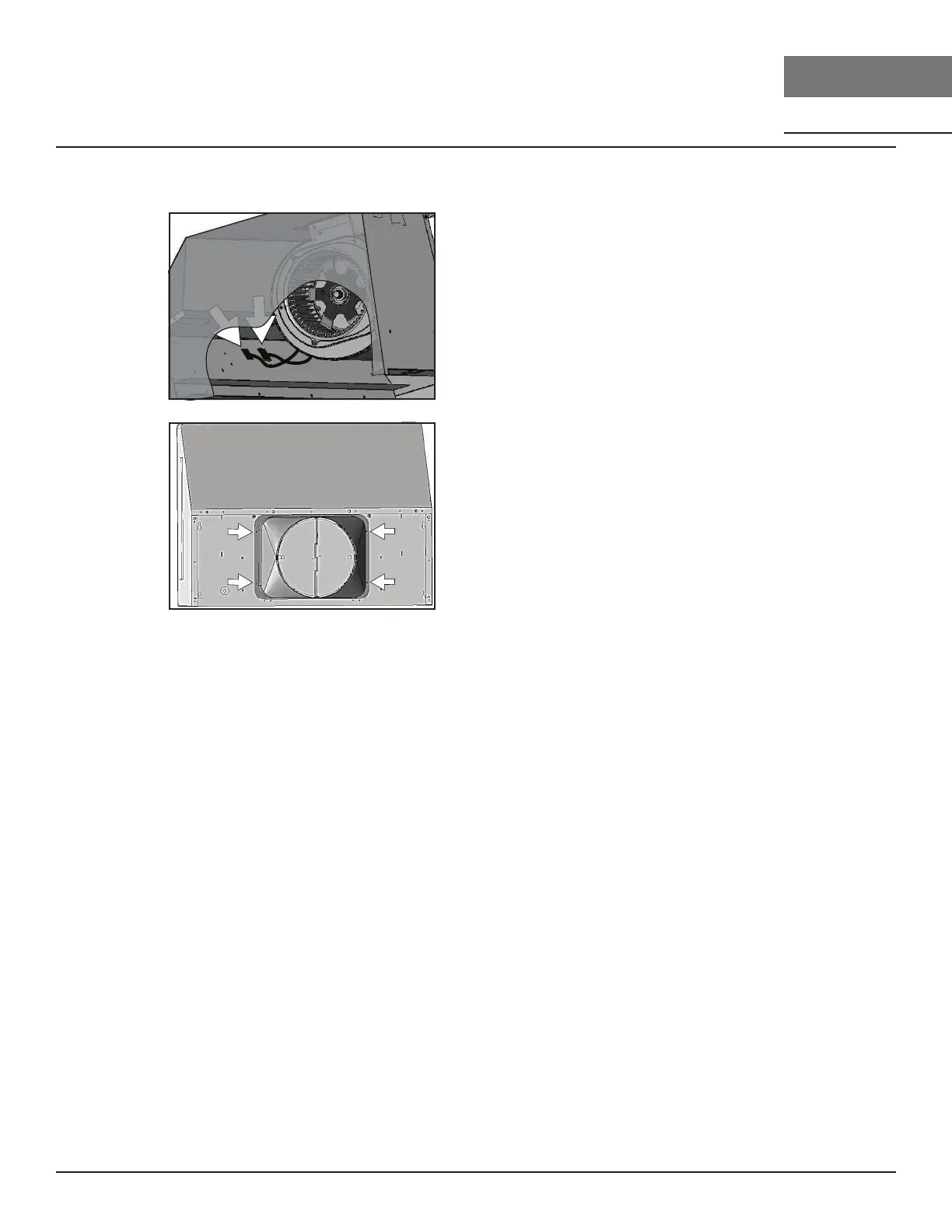

PBD-1300B Dual Blower Installation
9. Refer to page 36-37 section for
this step. Connect the wiring
from the dual blower including
both blower plugs, blower cable
6 pin connector (E), dual blower
switch cable (H), black single pin
power cord from dual blower (K),
and white single pin power cord
(F) to dual blower PCB.
NOTE: To secure the 10” transition adapter to top of hood a cut out of 14-1/2” width x 10-1/2” depth
will need to be made in the cabinet bottom.
If internal cabinet dimensions prevent this size of a cut out then the 10” transition adapter may be
mounted to the cabinet bottom rather than the top of the hood. Cut out dimensions for this type of
installation are 13-1/4” width x 6-1/4” depth.
10. Place 10” round adapter
(included with PBD-1300B) on top
of hood and secure with (4) M3.5
x 8 screws.

Zephyr AK9440BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	5 cubic feet per minute
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	40 3/8 inches
Net Weight	55 pounds
