Zephyr AK9440BS User Manual

31
Monsoon Connect Use, Care, and Installation Guide
ZEPHYRONLINE.COM
ŲĕĘė

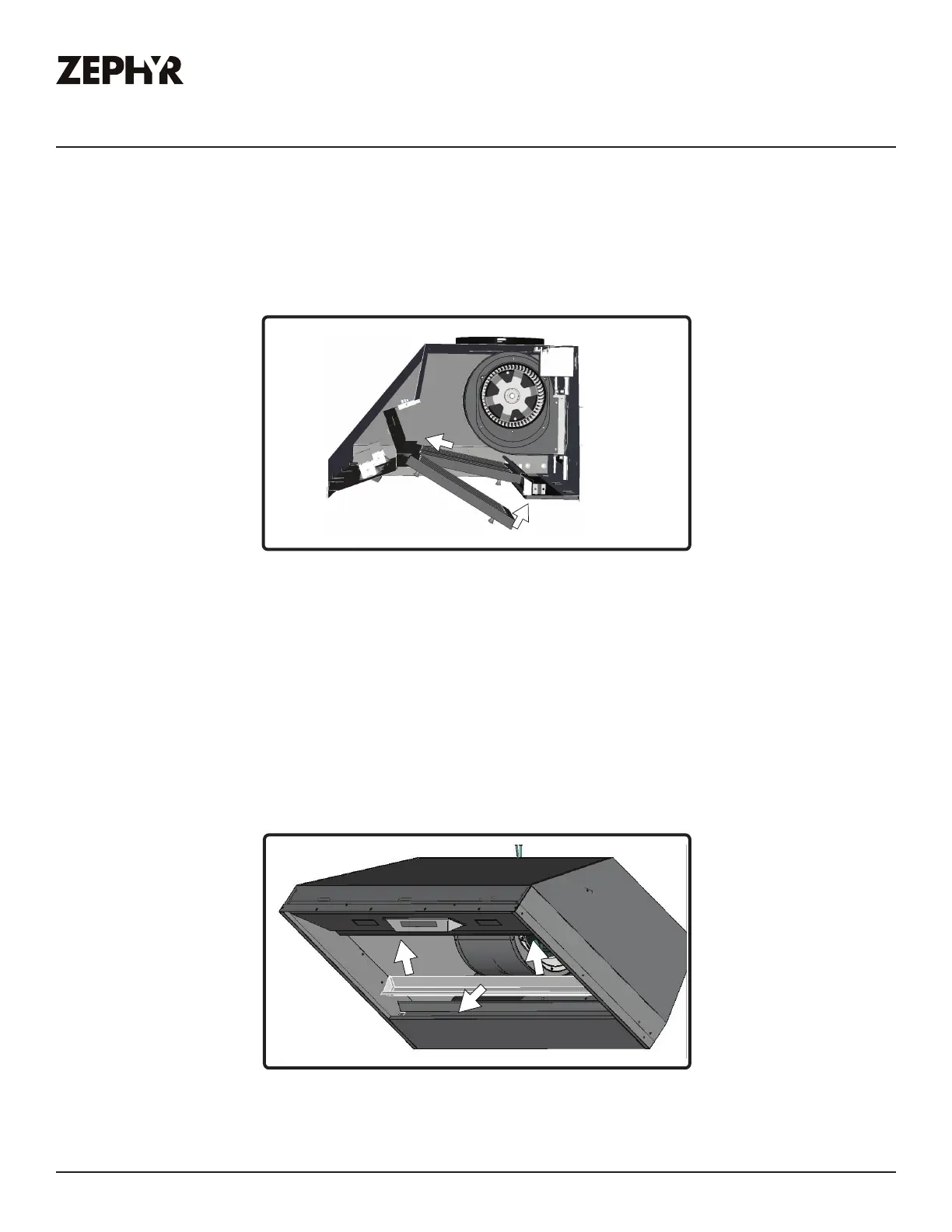

1. Place filter into top groove of the liner as shown and pull towards front of liner using handles.
2. Pivot back of filter upwards so it is angled in the liner.
3. Push filter into channel on back of liner to lock into place.
Removing the Grease Tray
Grease tray has a hooked lip that attaches to bottom panel top edge.
Remove grease tray by:
1. Pull up on tray to release from bottom panel. FIG. G1
2. Pull tray out of liner body. FIG. G2
Maintenance
1
2
FIG. F
1
1
2
FIG. G

Zephyr AK9440BS Specifications

General

Color	stainless steel
Hood Type	insert
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	5 cubic feet per minute
Control Type	button
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	19 1/4 inches
Height	12 inches
Width	40 3/8 inches
Net Weight	55 pounds
