Monsoon Connect Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Enabling ACT™

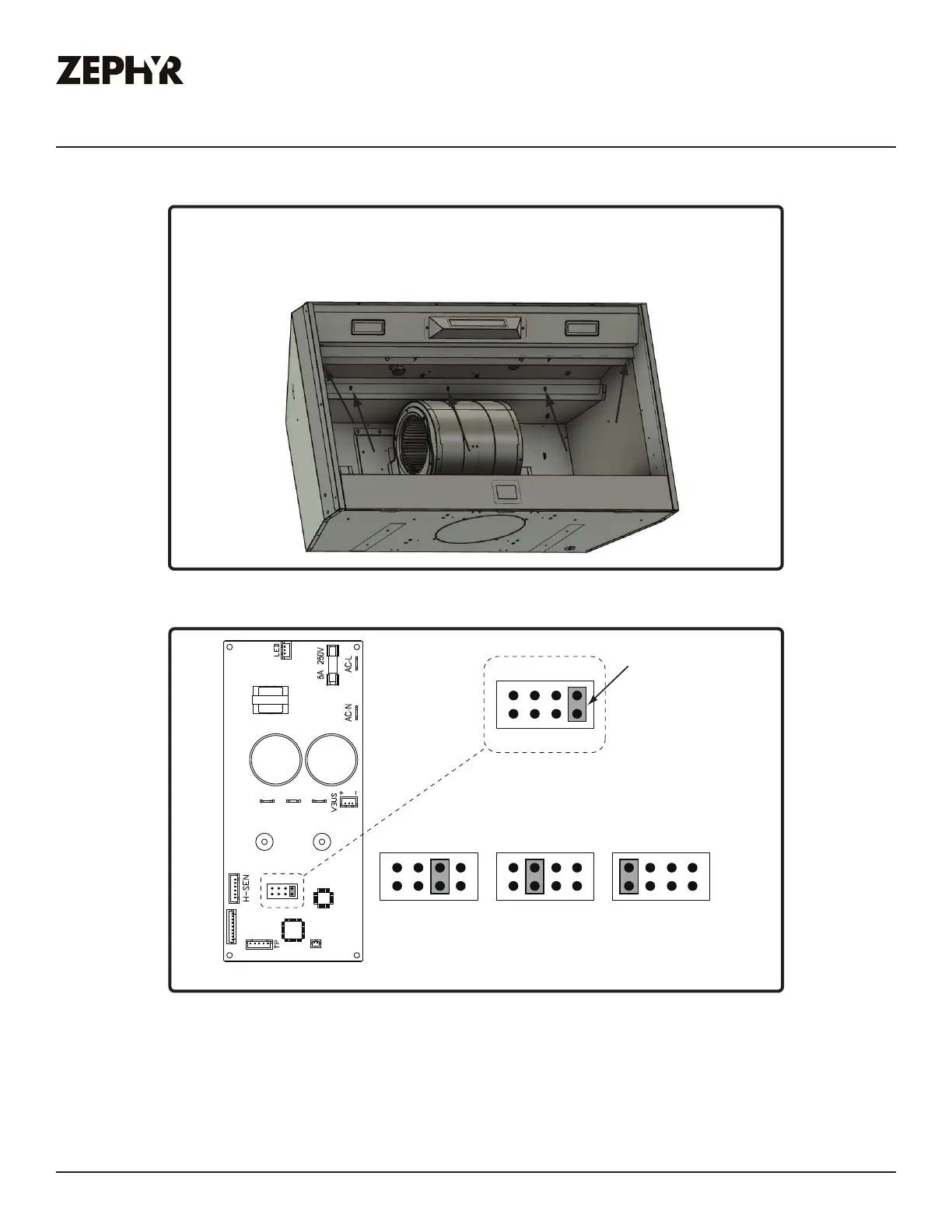

ACT™ Conversion
1. PC board located behind the light panel.
2. (If applicable) Remove both spacer panels by
2 screws for each spacer panel.
3. Remove 5 screws attaching light panel.
FIG. I
1357
2468
1357
2468
1357
2468
1357
2468
Jumper 7-8
DEFAULT POSITION
Max. Blower CFM
590
Jumper 5-6
Max. Blower CFM
390
Jumper 3-4
Max. Blower CFM
290
Jumper 1-2
1357
2468
PC Board
Jumper Pins
Plastic
Jumper
FIG. J
