Installation Instructions

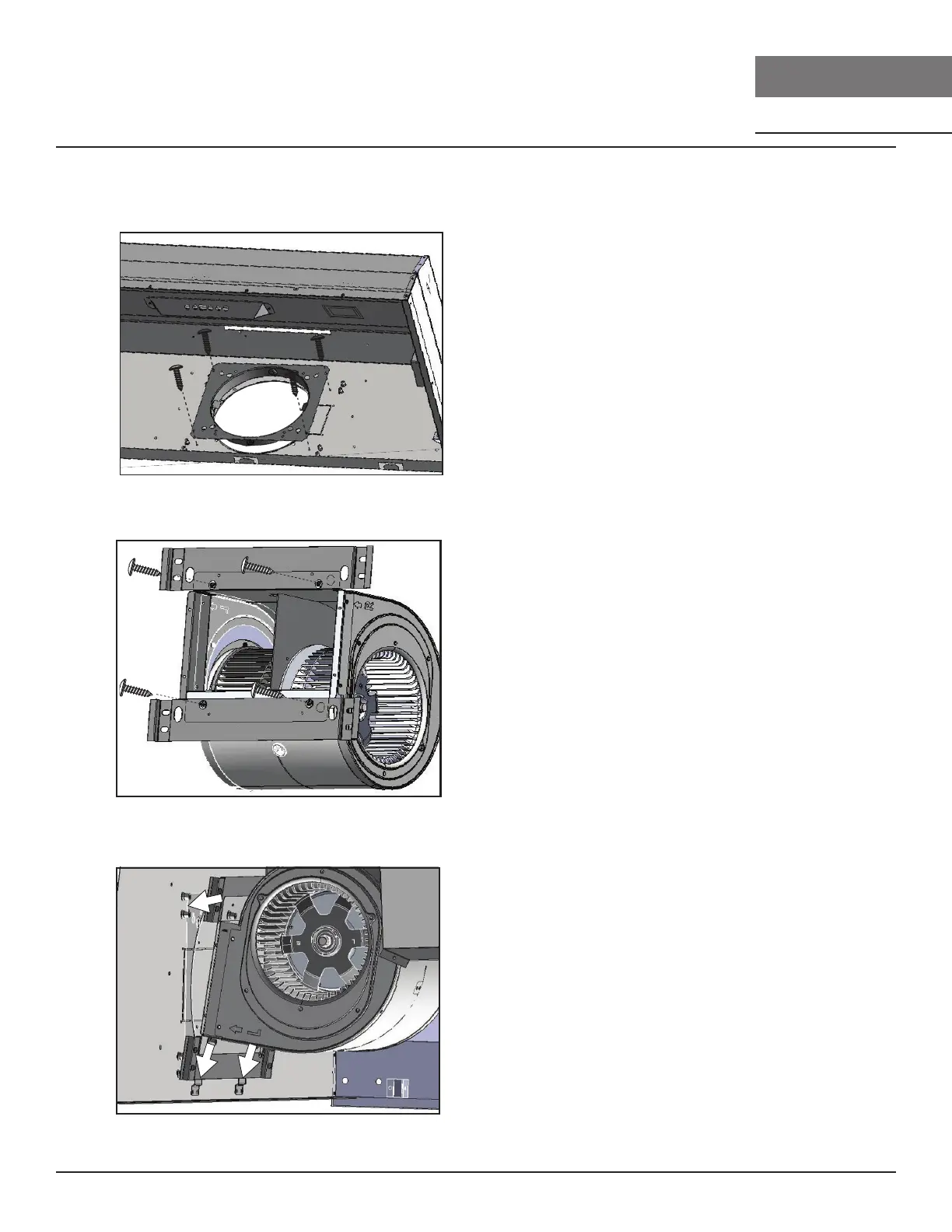

Horizontal Ducting Preparation
10. From inside the liner, push 8”
round adapter through the back
knock-out and secure to interior
back wall of liner with (4) M4 x
6mm screws.
12. Position blower inside liner body
as shown by: 1) Rest the bottom
horizontal ducting bracket on
the two support clips located on
the interior back wall of the liner.
2) Pivot top horizontal ducting
bracket to meet captive nuts on
interior back wall.
11. Secure (2) horizontal ducting
blower brackets to blower as
shown above by using the (4)
3/16” x 3/8” screws previously
removed from Page 22, Step 6;
(2) screws for each bracket.
AK9228BS & AK9234BS Models Only
1
2
1
To Next Page
