Monsoon I Guide d’utilisation, d’entretien et d’installation
MONSOON I
INSÉRER
CORE

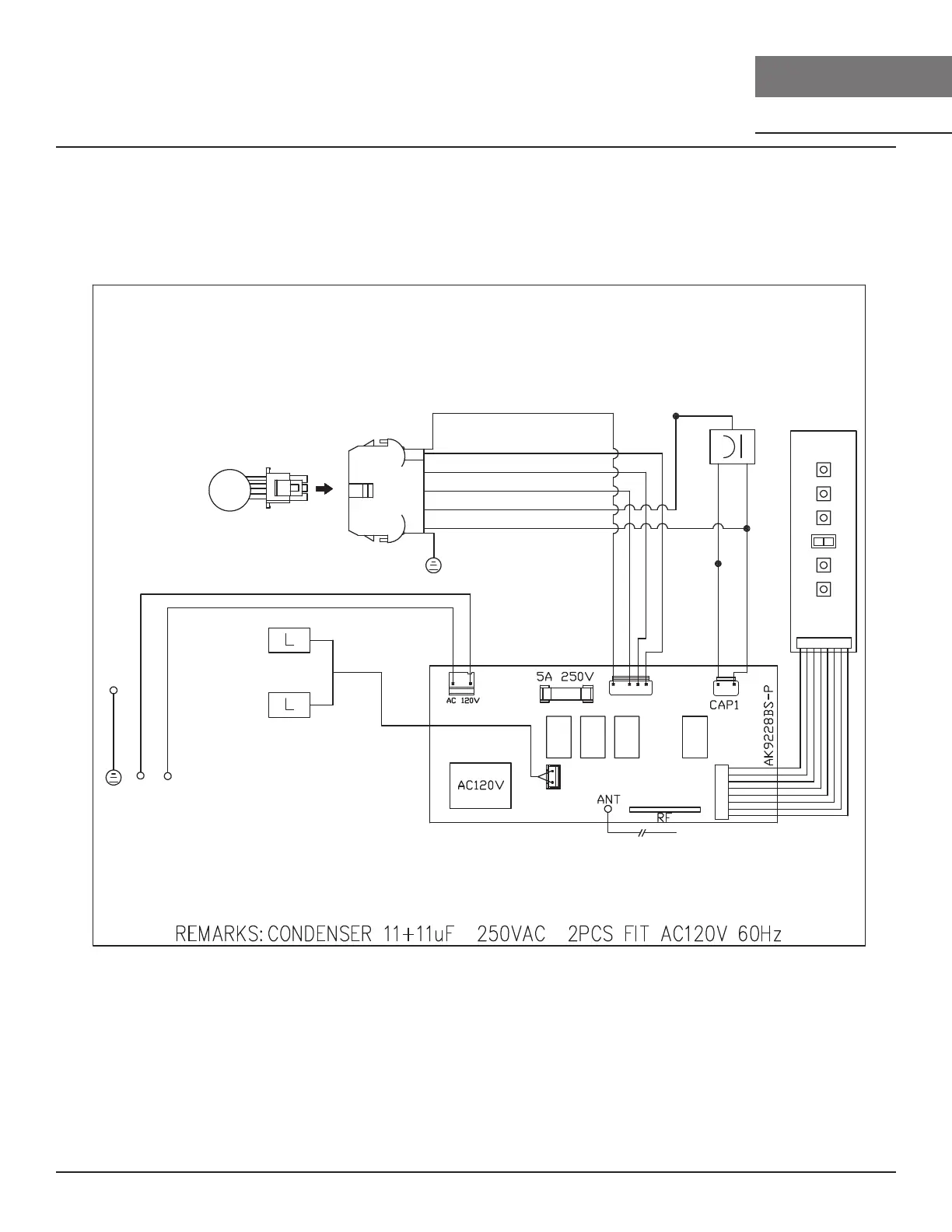

Schéma de câblage
AK9228BS & AK9234BS SCHÉMA
MOTEUR
BLANC
BLEU
MARRON
GRIS
ROUGE
JAUNE
VERT
CORPS
ROUGE
JAUNE
JAUNE
JAUNE
JAUNE
TRANSFORMATEUR
CORPS
VERT
NOIR
WHITE
ACT 390 CFM - Ventilateur Max. 355 W à 3,0 A
ACT 290 CFM - Ventilateur Max. 255 W à 2,4 A
