Monsoon Mini II Use, Care, and Installation Guide
MONSOON MINI II
INSERT
CORE

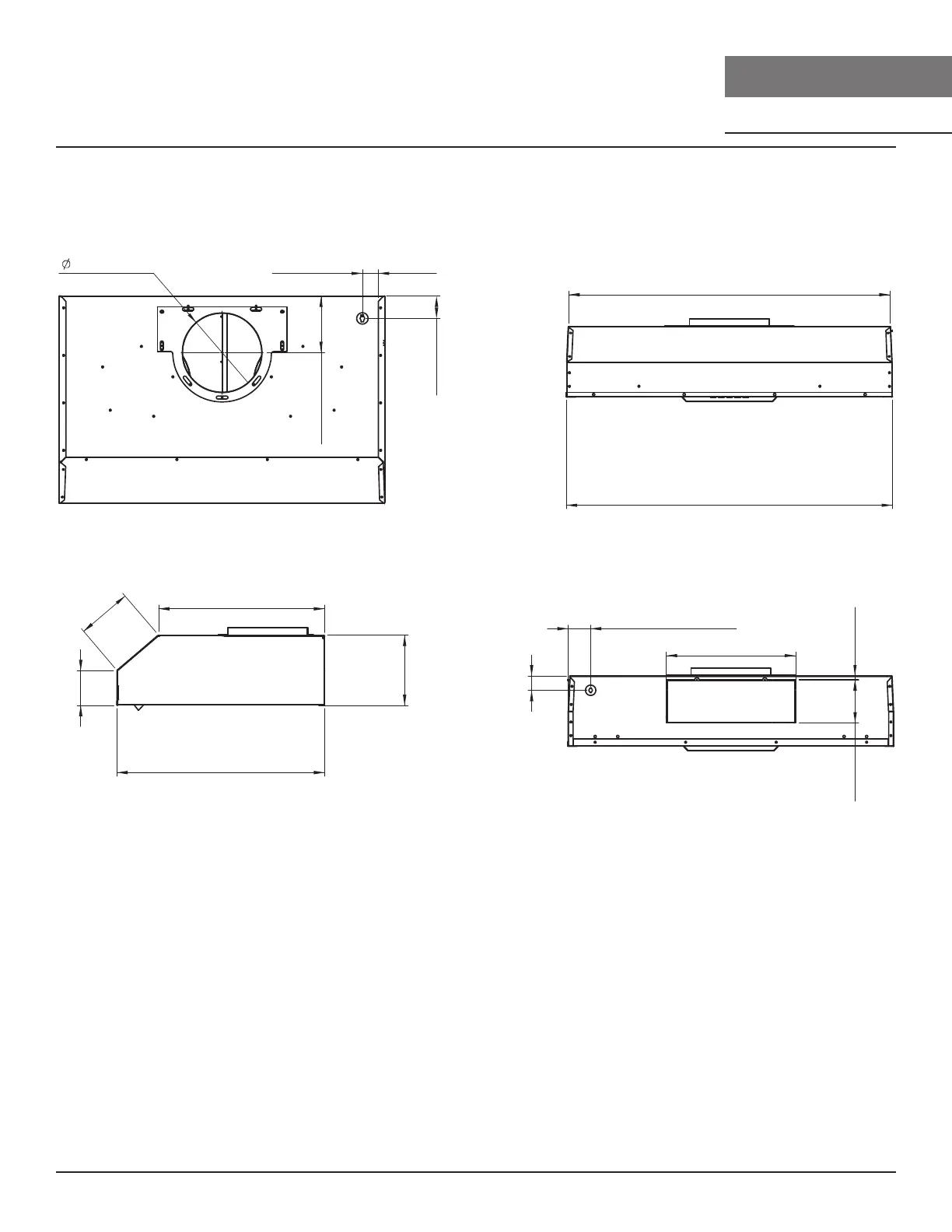

Installation Instructions
Ů
6-15/16”
4-15/16”
(30”) 1-3/8”
(36”, 42“, 48”) 4-3/8”
1-15/16”
(30”) 27-15/16”
(36”) 33-15/16”
(42”) 39-15/16”
(48”) 45-15/16”
(30”) 28-3/8”
(36”) 34-3/8”
(42”) 40-3/8”
(48”) 46-3/8”
14-7/16”
4-
3/4”
3-1/16”
18-1/16”
6-1/8”
(30”) 1-15/16”
(36”, 42“, 48”) 4-15/16”
1-1/4”
11-1/4”
5/16”
3-3/4”
TOP
SIDE BACK
FRONT
